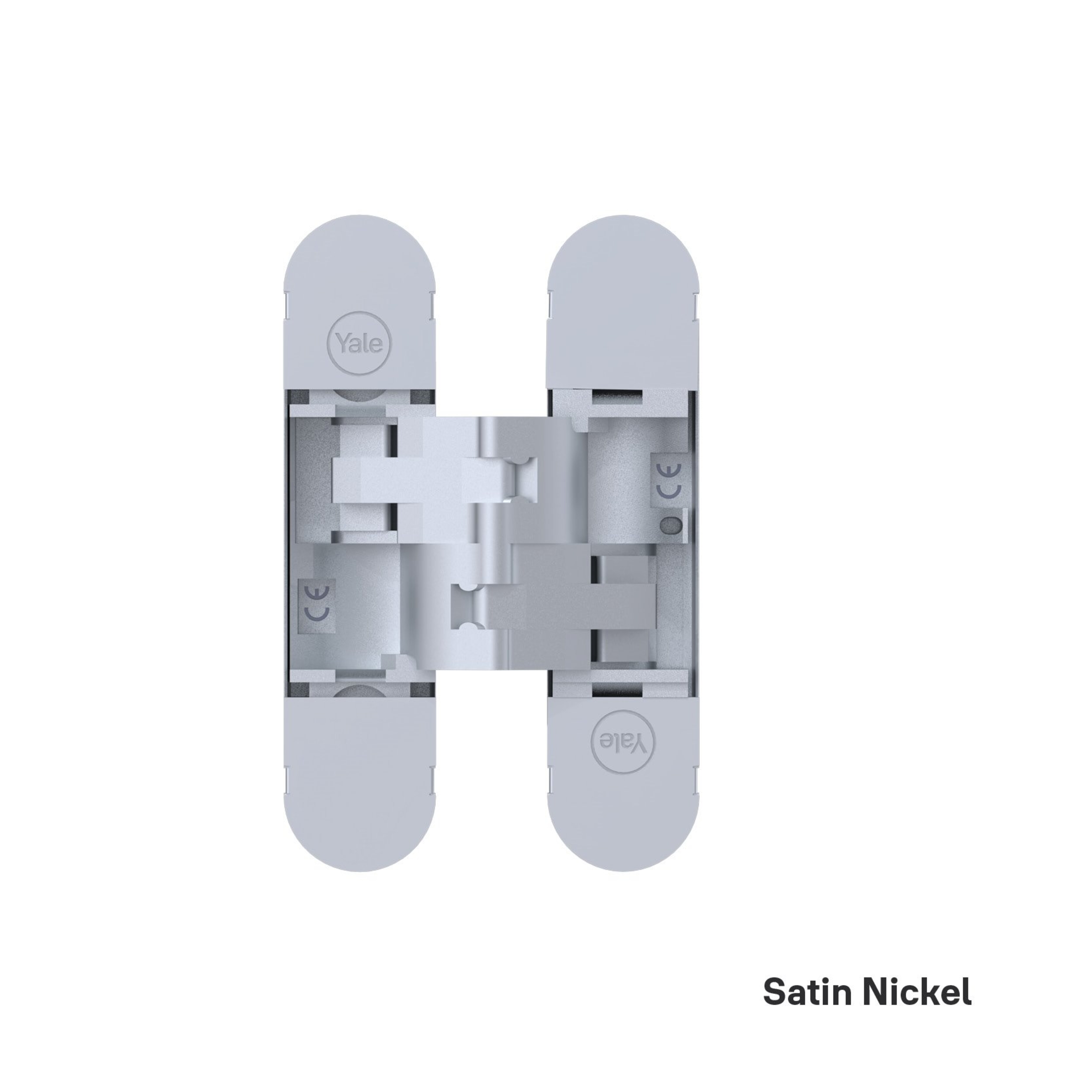

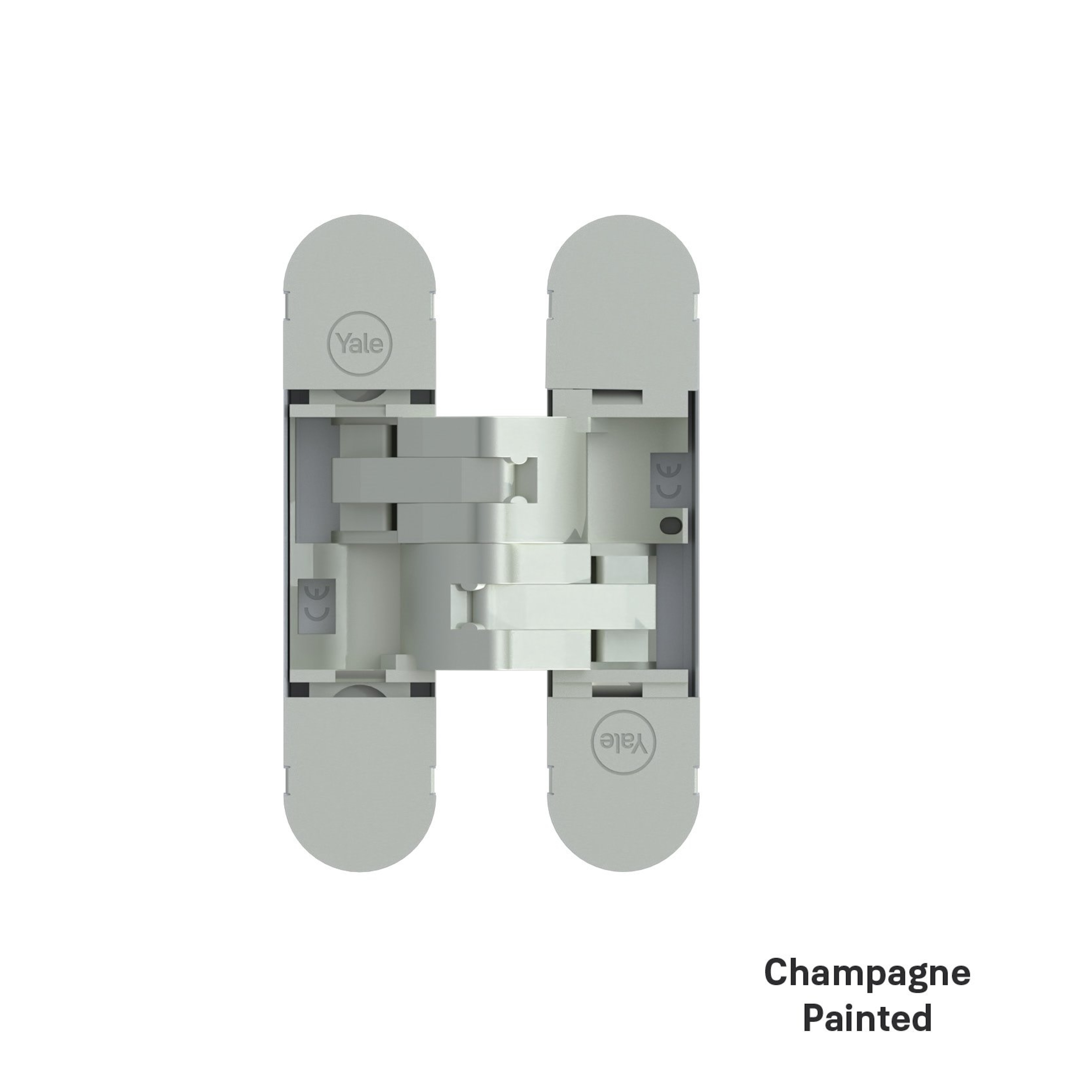

1230s Hinges

Specifications:

• Certified for doors of up to 1000mm width
• Minimum door thickness: 35mm
• Suitable for doors up to 70kgs
• Suitable for cladded side panels/walls upto 15mm thick
• Tested for 200,000 cycles
• Reversible for 35 to 45mm thick doors

Features:

• Patented and CE certified, 3 dimensional hinges
• Suitable for aluminium, metal and timber doors
• Symmetric design (reversible)
• Galvanized steel covers
• Zinc alloy internal and external body
• Resistant to oxidation due to the external zinc zamak case
• Fluid sliding mechanism and 3D adjustable with a 2.5mm allen key and 8mm hexagonal
