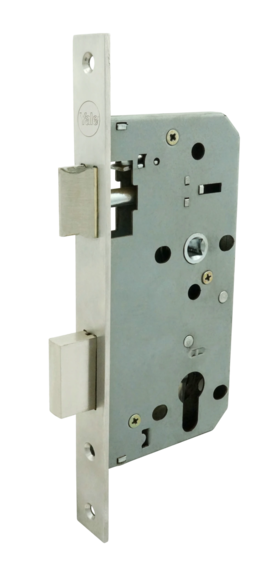

Premium C series Mortice Lockcase

Specifications:



  • Medium duty mortice sash lock with 55/60mm backset & 72mm centres
  • Conforms to EN12209
  • CE marked (fire-rated)
  • Follower 8x8mm
  • Square front and strike plate
  • Latch available in SS 304 & deadbolt in steel
  • 20mm double throw deadbolt
  • Reversible latch for left or right hand doors

Features:

  • Available in Stainless Steel Matt finish

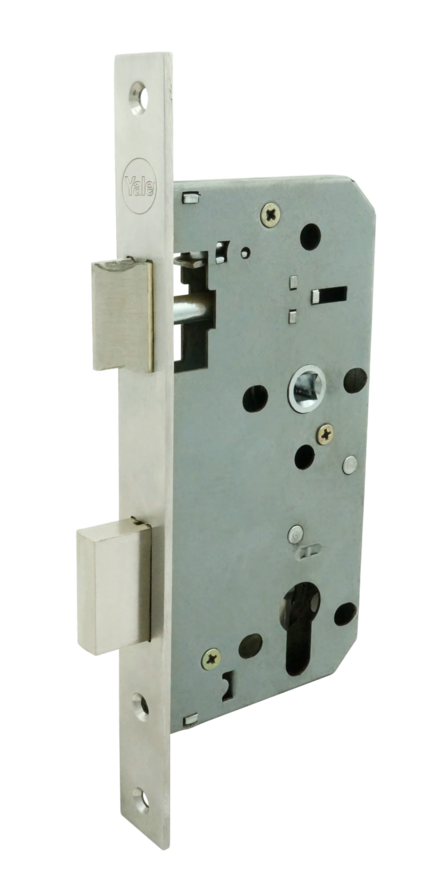

  • Essential Mortice Lockcase (72mm centre)

    Designed with precision and durability in mind, the Yale Essential Mortice Lockcase delivers reliable security and smooth integration into tailored locking systems.



    Features:

    • Latch operated by handle or cylinder
    • Reversible for left or right hand doors
    • Forend available in SS201/304/316 grades







    Specifications:

    • Mortice sash lock with 55mm backset & 72mm centres
    • Square front & strike plate
    • Forend available in SS 201, 304 & 316 grades
    • Latch & deadbolt available in Zamak, Steel & SS 304

    Features:

    • Reversible latch
    • Available in different finishes: Satin Nickel, Polished Brass, Matt Black & Stainless Steel

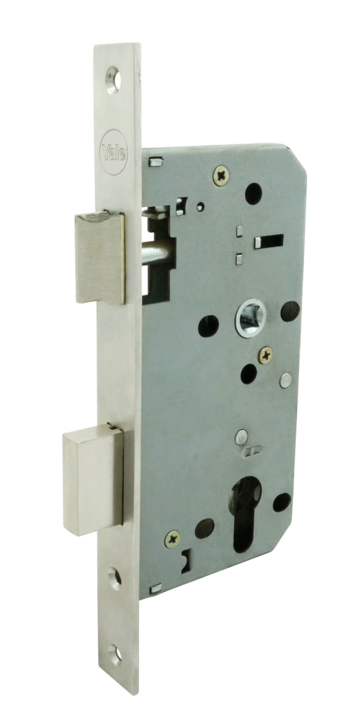

  • Essential Mortice Lockcase (85mm centre)

    Crafted to deliver top-tier protection, the Essential Mortice Lockcase features a precision-engineered mechanism that guarantees both reliability and ease of use.





    Features:

    • Latch operated by handle or cylinder
    • Reversible for left or right hand doors
    • Forend available in SS201/304/316 grades

    Specifications:

    • Mortice sash lock with 85 mm centres
    • Backset 45 mm
    • Follower 8 x 8 mm
    • Reversible latch
    • Through fixing holes with 38 mm centres
    • Square front and strike plate
    • 20mm double throw deadbolt (double throw)

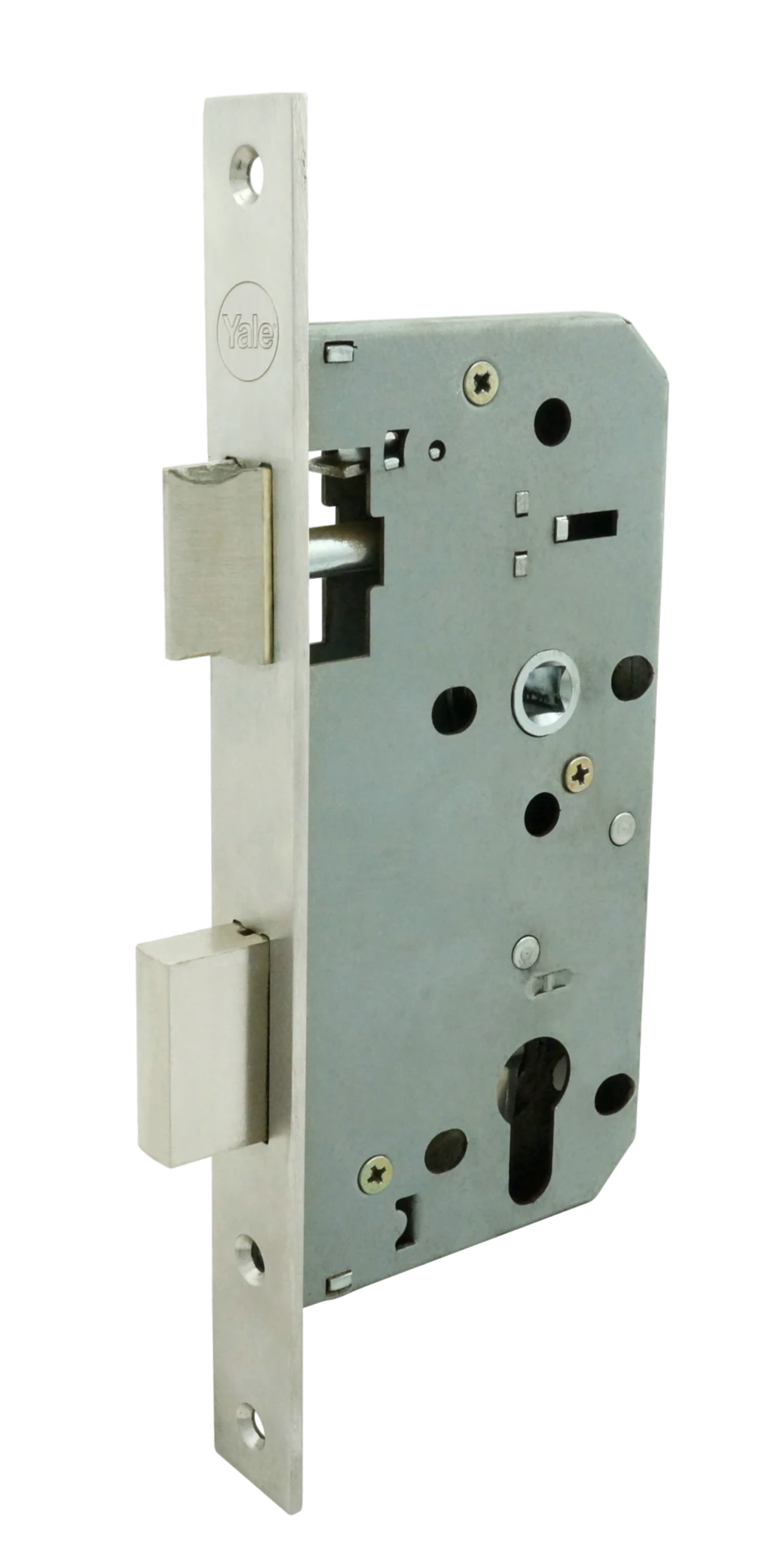

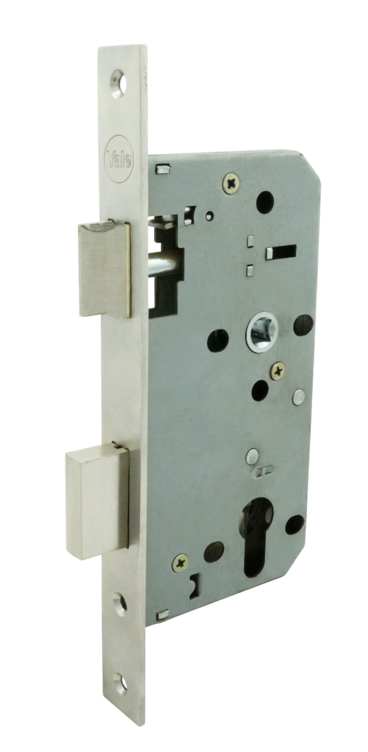

  • Premium H series Mortice Lockcase

    Specifications:

    • Heavy-duty mortice sash lock with 55/60mm backset & 72mm centres
    • Reversible latch
    • Square front and strike plate
    • Latch & deadbolt available in SS 304
    • 20mm double throw deadbolt
    • Certified to EN12209
    • CE marked (fire-rated steel & timber)

    Features:

    • Available in Satin Stainless Steel finish
