Yale Libi™ Digital Lock Keyed

Experience the perfect blend of simplicity and security with the Yale Libi, a digital lock designed for those who prefer a key-free lifestyle without the need for apps or smart home integration.

Yale Libi™ is ideal for anyone seeking a straightforward, reliable digital lock. It provides secure access using PIN codes and traditional keys—no smartphone connection required. It’s a practical choice for those moving away from traditional keys but still wanting a simple, high-quality solution.

Designed to fit a standard 54mm bore hole, it’s a quick and easy replacement for your existing deadbolt, with no power tools needed.

The new digital deadbolt shares all the features of the leverset but replaces passage mode with the One Touch lock feature, designed for quick and secure locking with a single tap. Whether you’re returning from a late surf session, a bushwalk, or a long day at work, the Yale Libi digital lockset provides effortless access and peace of mind.

Where to buy
Libi Digital Lock Keyed

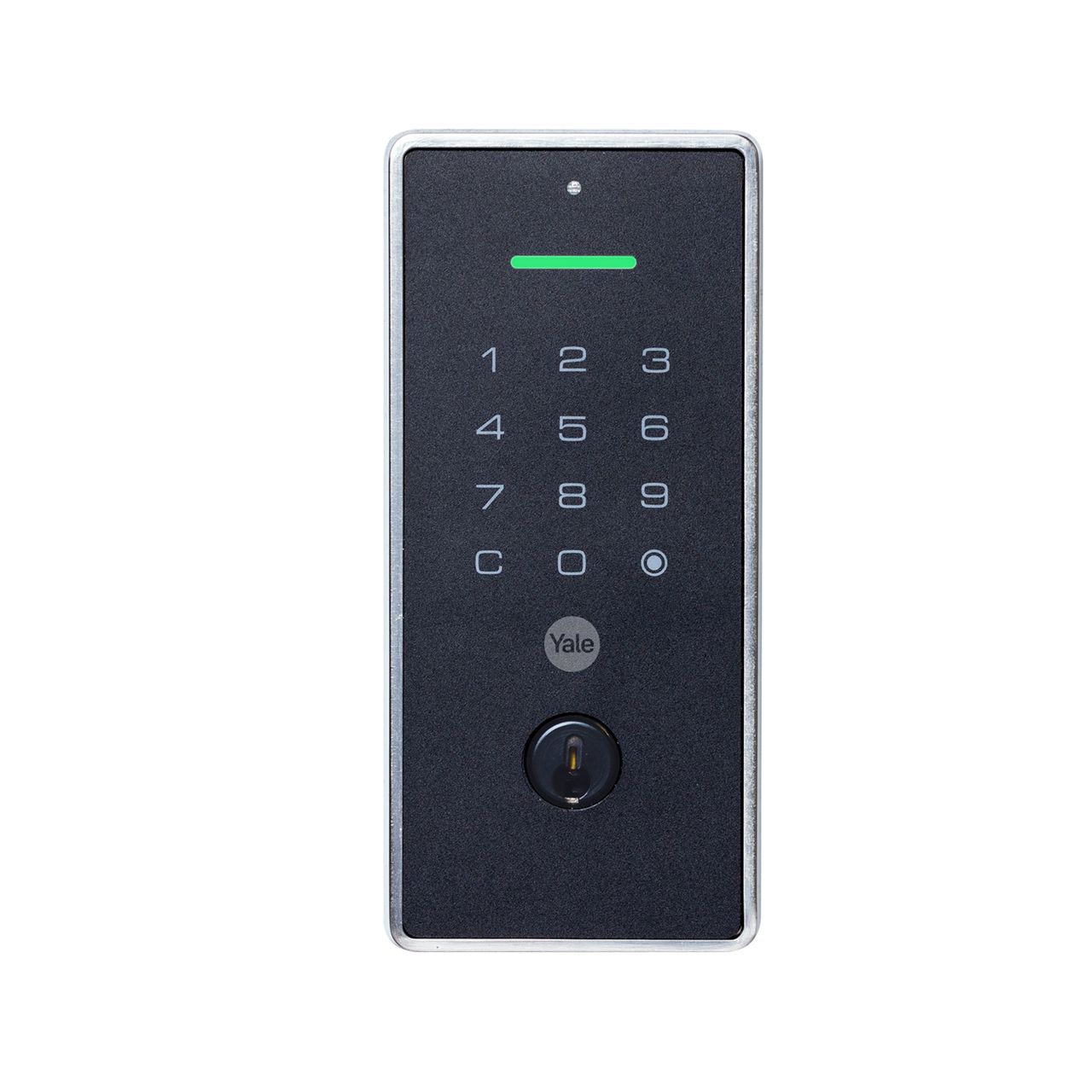

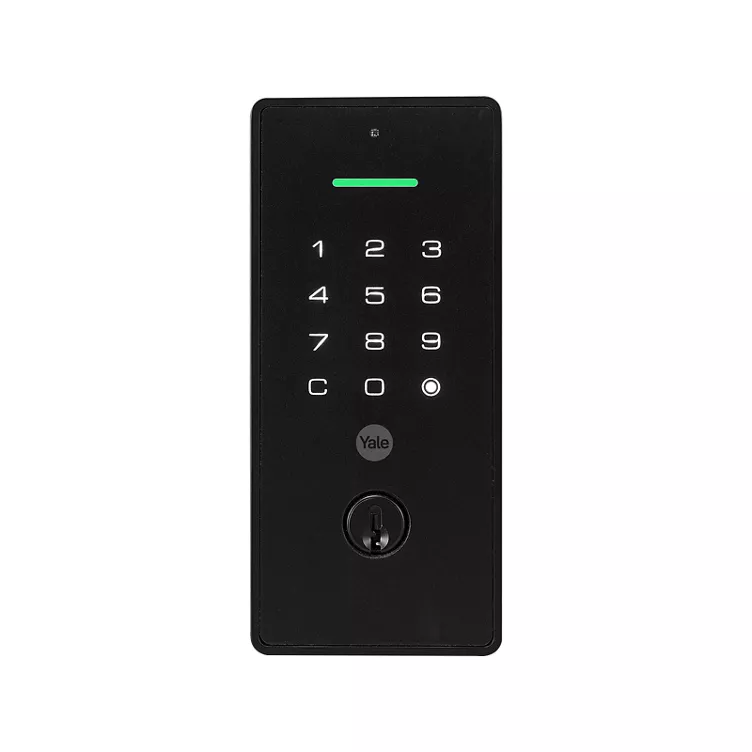

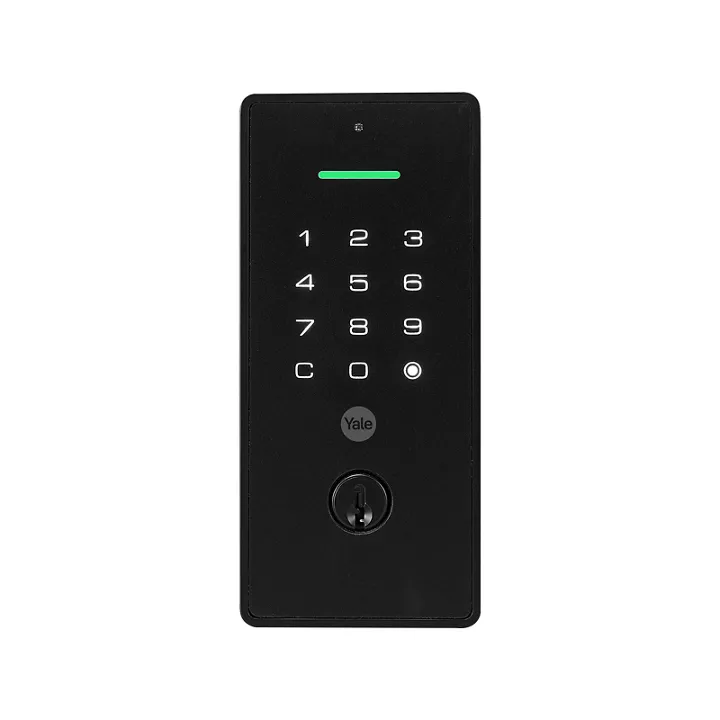

YLBD226NRMBK (exterior view)
Libi Digital Lock Keyed

Key Features

  • Gloves-friendly Membrane TouchpadGloves-friendly Membrane Touchpad

    Touchscreen Keypad

    Unlock by entering your PIN code and lock-up with a simple tap on the keypad.

  • Mechanical Key OverrideMechanical Key Override

    Mechanical Key Override

    In the event your battery goes flat, you have a mechanical key override that will prevent you from being locked out.

  • Create Unique Pin CodesCreate Unique Pin Codes

    Create Unique Pin Codes

    You can create up to 70 unique PIN codes and 5 one-time user codes, adjust lock features, and personalise your settings.

  • Backlit LEDBacklit LED

    Backlit LED

    Proximity sensor automatically wakes the keypad up when approached by the user.  This is very convenient when you enter your home at night.

  • Auto-lockAuto-lock

    Auto-lock

    Enjoy peace of mind with auto-lock mode. This feature automatically locks your door after a set period of inactivity, ensuring your home is always protected.
    • C4 keyway
    • Auto-locking function
    • Auto-90 second lockout (5 incorrect code attempts)
    • Up to 75 user codes (Five one-time user codes)
    • Reversable door handing (suits right or left-hand doors)
    • Meets ANSI/BHMA Grade 2
    • Retrofit Solution for Mechanical Deadbolt (54mm borehole)



    • 4 x AA batteries (not included)*
    • Suitable door thickness 35mm – 45mm
    • Backset adjustable to 60mm or 70mm
    • Operating Temperature -20ºC ~ 70ºC
    • Operating Humidity 30% ~ 90%
    • Available in Satin Nickel & Matt Black finishes

    *For optimum results, we only recommend alkaline batteries. Up to 12 months depending on the frequency of your usage (10 cycles per day)..

  • Catalogue
    Yale Essential Series Digital Locks Catalogue(PDF, 2 MB)
    Technical Downloads
    Libi Digital Lock Keyed - Template(PDF, 105 KB)
    Libi Digital Lock Keyed - User Guide(PDF, 527 KB)
    Libi Digital Lock Keyed - Instructions(PDF, 4 MB)
  • DescriptionPart number
    Yale Libi Digital Touchpad Lock Matt BlackYLBD226NRMBK9348313055876
    Yale Libi Digital Touchpad Lock Satin NickelYLBD226NRSN9348313055883
