Fire Rated
Tested for 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1-2015 Fire Resistant Doorsets.
Unlocks the potential for people with disabilities to seamlessly access multiresidential and offers multiple options for the owner to manage their access via Yale Home APP.
Yale Unity Entrance Lock Fire Rated version with accessible compliant Lever has been designed with all necessary hardware to achieve AS1905.1-2015 certification integrated into the escutcheons.
Meeting Australian lock standards AS4145.2:2008, SL8 and D8, you can be sure that the Unity Entrance Lock meets your security needs.
Lock alert indications shows users the lock mode via a built in LED. The lock has two modes, Unlock (Green) and Locked (Yellow).
Controllable by either the Yale Home App, Contactless Key Tag or PIN code using a Yale Smart Keypad*, the Unity Entrance Lock provides you with a range of options to control your lock. The Yale Home App allows you to lock and unlock your door, grant access to others and keep track of visitor access, all via your smartphone. Grant users one time access, access for a set period of time or a date range, avoiding any lost keys or having your keys stolen or copied.
Using varying technologies including Bluetooth, Wi-Fi and GPS as well as the Yale Home App, the auto-unlock feature unlocks your door as you approach.
The door position sensor checks the status of the door and tells you if your door is securely closed and locked giving you the peace of mind your door is secure when locking up.
The Unity Entrance Lock can be upgraded with the Yale Connect Plus Hub 2. The Yale Connect Plus Hub 2 allows you to remotely manage your lock from anywhere. The Yale Connect Plus Hub 2, enables ‘Works with’ ability, integrating into your Google, Samsung or Alexa smart home hubs. The Unity Entrance Lock is also Apple HomeKit compatible.
With the Yale Smart Keypad you can lock and unlock your door via PIN codes. The durable metal made Yale Unity Installation Template* is tradesman friendly, particularly where multiple or ongoing installations are required.
*Yale Connect Plus Hub 2, Yale Smart Keypad and Yale Unity Installation Template sold separately.
YUR/DEL/FR/DDA/SIL
YUR/DEL/FR/DDA/SIL
YUR/DEL/FR/DDA/SIL
Yale Home APP
Yale Home APP
Yale Home APP
Tested for 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1-2015 Fire Resistant Doorsets.
Lever designed to meet AS1428.1-2009 Designed for Access and mobility

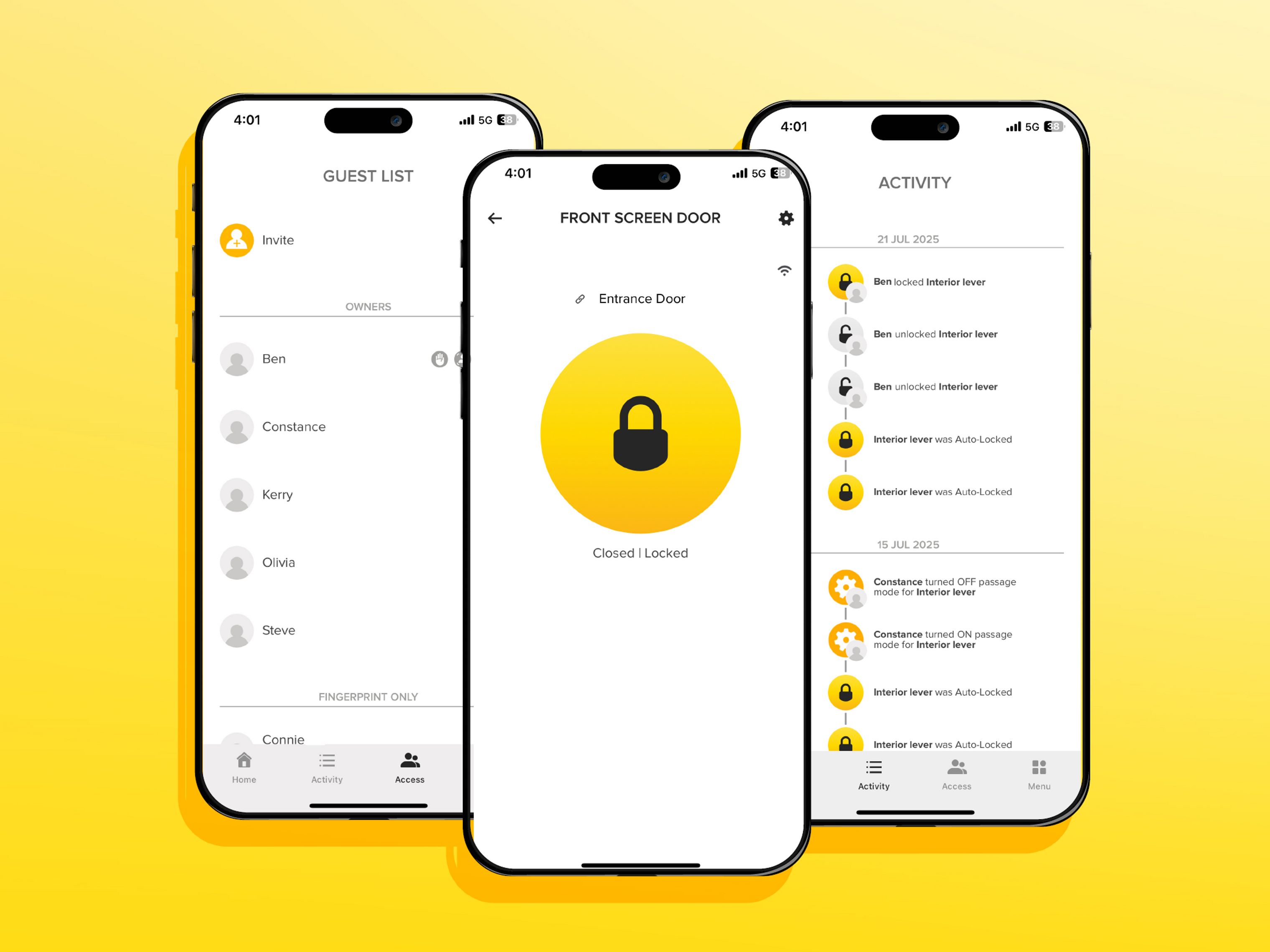

The Yale Home App allows you to lock and unlock your door, grant access to others and keep track of visitor access.
Auto unlock your door as you walk up without the need to take out your phone. The door position sensor tells you if your door is open or closed.
Use either the Yale Home App, Yale Contactless Key Tags or upgrade with the Yale Smart Keypad to access your lock.
100% key free. No cylinder means no lost keys and no pick and bump break-ins.
Unlock and lock your door from anywhere. Allows you to integrate the Yale Unity Entrance Lock with Google, Samsung and Amazon home automation systems.
Part number: YAR/SWAA/HUB/-I-D
Lock & unlock your lock using your Yale Smart Keypad.
Part number: 05/301000/BL
Australian Standard | Certified to SL8 (Security) Australian Lock Standard (AS4145.2:2008) Certified to D8 (Durability) Australian Lock Standard (AS4145.2:2008) Certified to BAL-40 Bushfire Level (AS1530.8.1 2018) Certified to Fire Resistant Doorsets (AS1905.1.2015) AS1428.1-2009, Design for Access and Mobility |
Compliance | Regulatory Compliance Mark (RCM) for Australia and New Zealand |
Lock Type | 530 Latch |
Door Thickness | 35-60mm |
Backset | 60-70mm backset (70mm latch sold separately –Y530-222SC) |
Finish | Silver powdercoat with black nylon |
RFID | Yes (2 x Contactless Key Tags) |
Power | 4 x AA Alkaline batteries |
Battery Life on lock | approximately 12 months |
Low Battery Warning | 20% |
Volume Settings | Mute, Low, High |
Operating Temperature | -25-70°C |
Humidity | 0-95% |
IP Rating | IP54 |
Use | Entry doors where a fire rating is required (e.g. apartments or offices). Not for use on doors where the internal escutcheon will be exposed to outdoor environments. |
Item | Part number | Barcode |
---|---|---|
Yale Unity Entrance Lock Fire Rated Silver with DDA Lever | YUR/DEL/FR/DDA/SIL | 9348313051816 |
Yale smart locks can now be controlled through the use of the Yale Home App, giving you total control over your lock. You are able to lock and unlock your door, grant access to others and keep track of visitor access all via your mobile device.
