V8100 Series is an economical durable deadbolt, ideal for use as an auxiliary lock on residential applications.
This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.
Remember my choice*
*Your choice will be saved in a cookie until you have closed your browser.

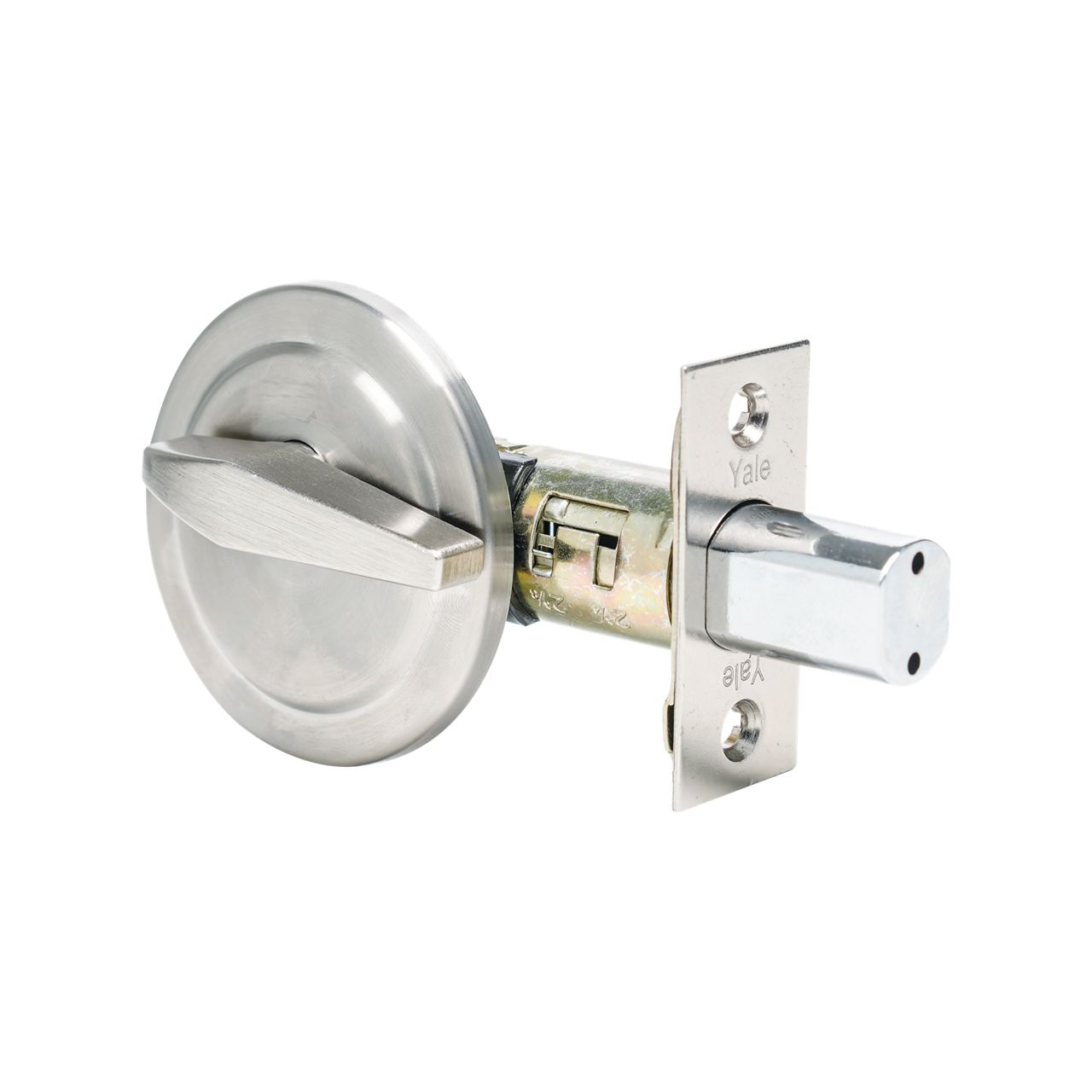

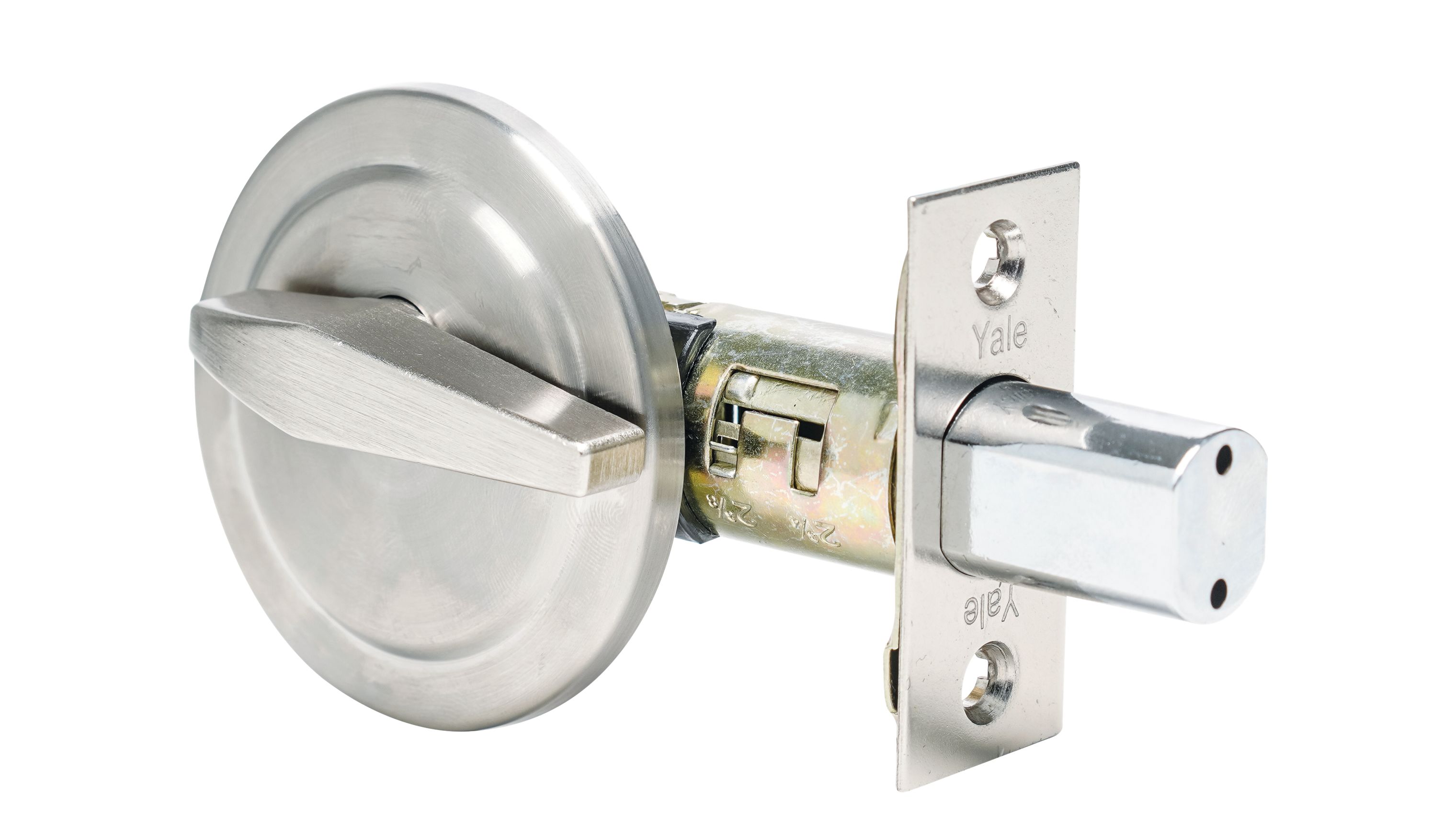

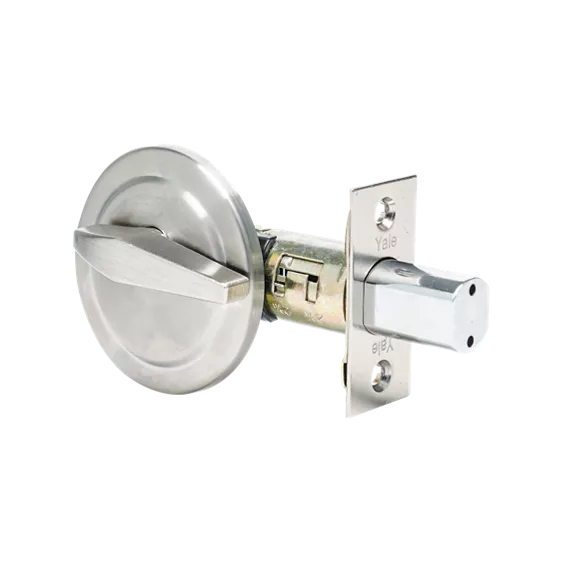

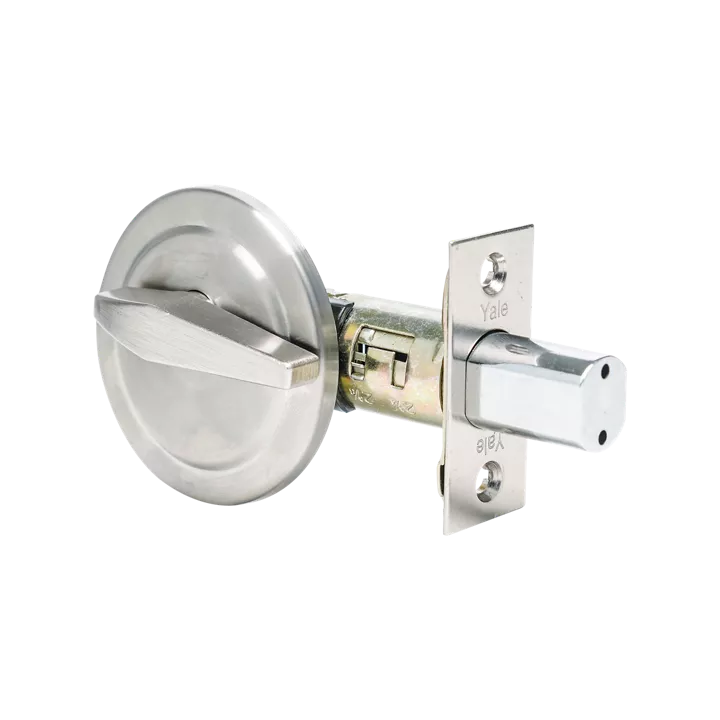

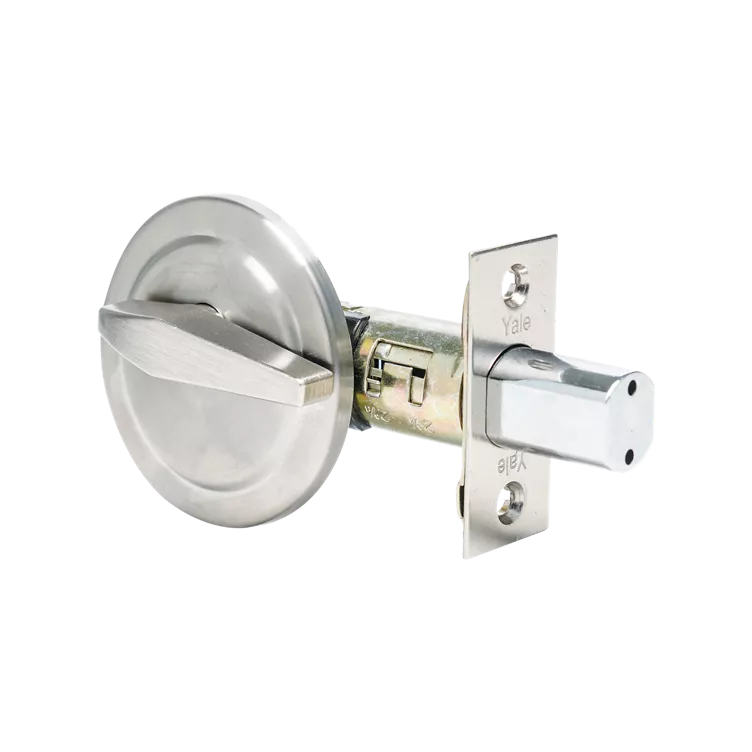

V8101 One Side Deadbolt (Internal Function)
Knob Style
V81
Model No.
01
11
21
Function
Single Cylinder with Thumbturn
Double Cylinder Deadbolt
One Side Deadbolt (Internal Function)
Finish
US11 Antique Copper
US32D Satin Stainless Steel
Backset Code
Adjustable Backset of 60 / 70mm
Strike Code
Standard Rectangle Strike Length = 57mm
Backset
60 / 70mm
Door Thickness (T1)
35 - 50mm
Standard
ANSI / BHMA A 156.2 2001
Testing Cycles
100,000 Cycles Tested Guaranteed
Material
- Chassis: Steel
- Latch and Bolt: Zinc
- Cylinder Housing: Steel
- Round Plate: Brass
Anti-Sawing Insert
Hardened Steel
Cylinder
Solid Brass Tumble Cylinder
No.of Pin
5 Pins
No. of Key
3 pcs of Nickel-Plated Brass Key
