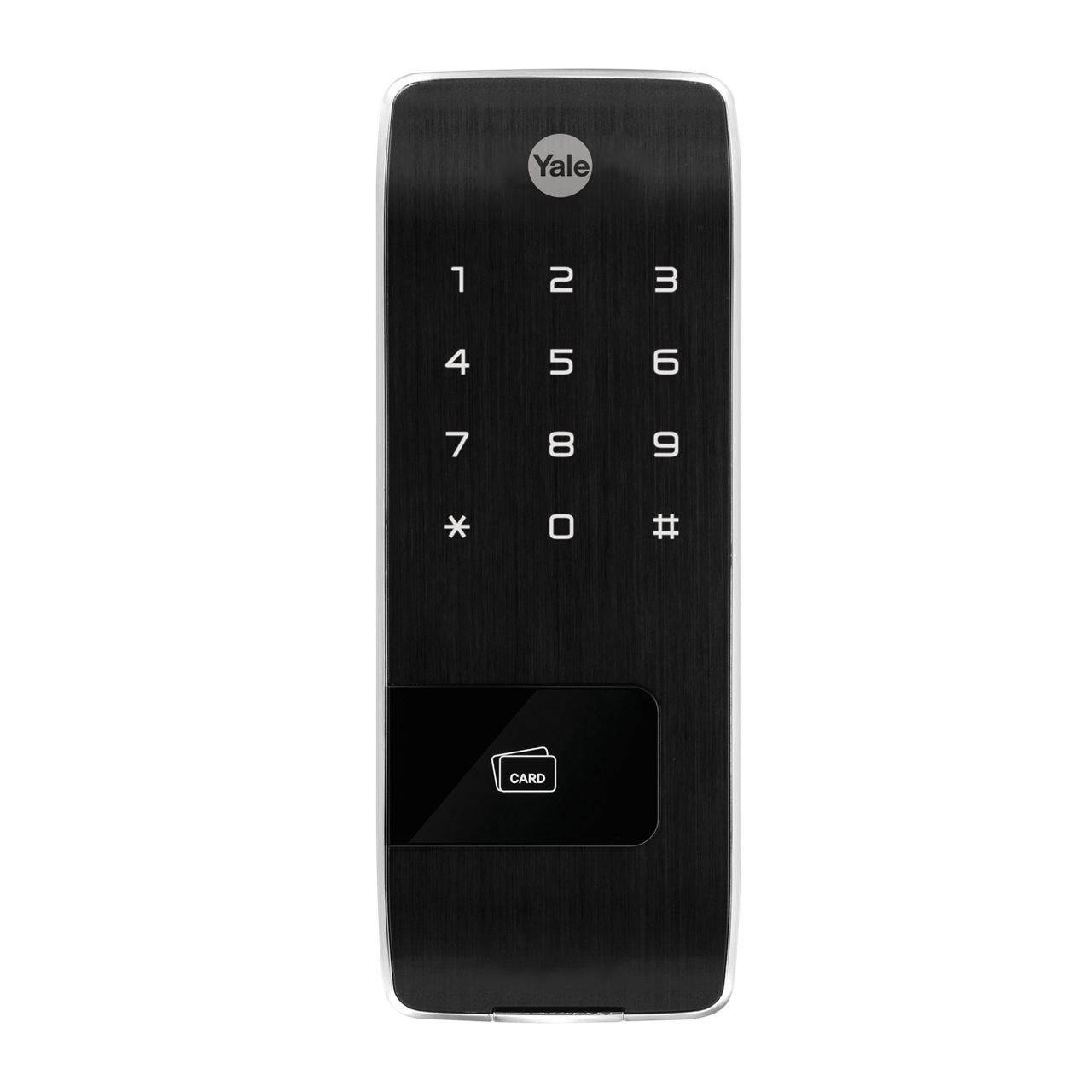

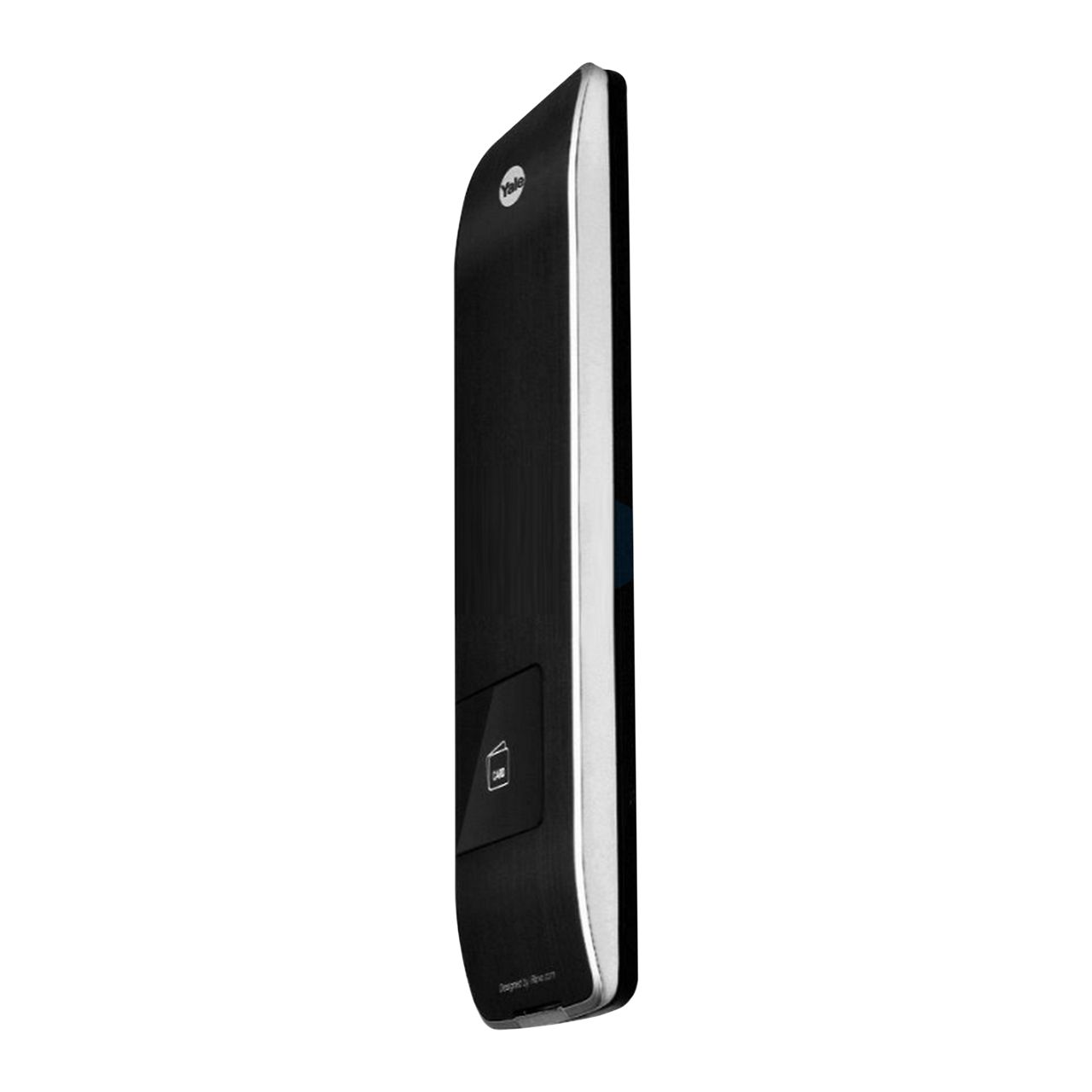

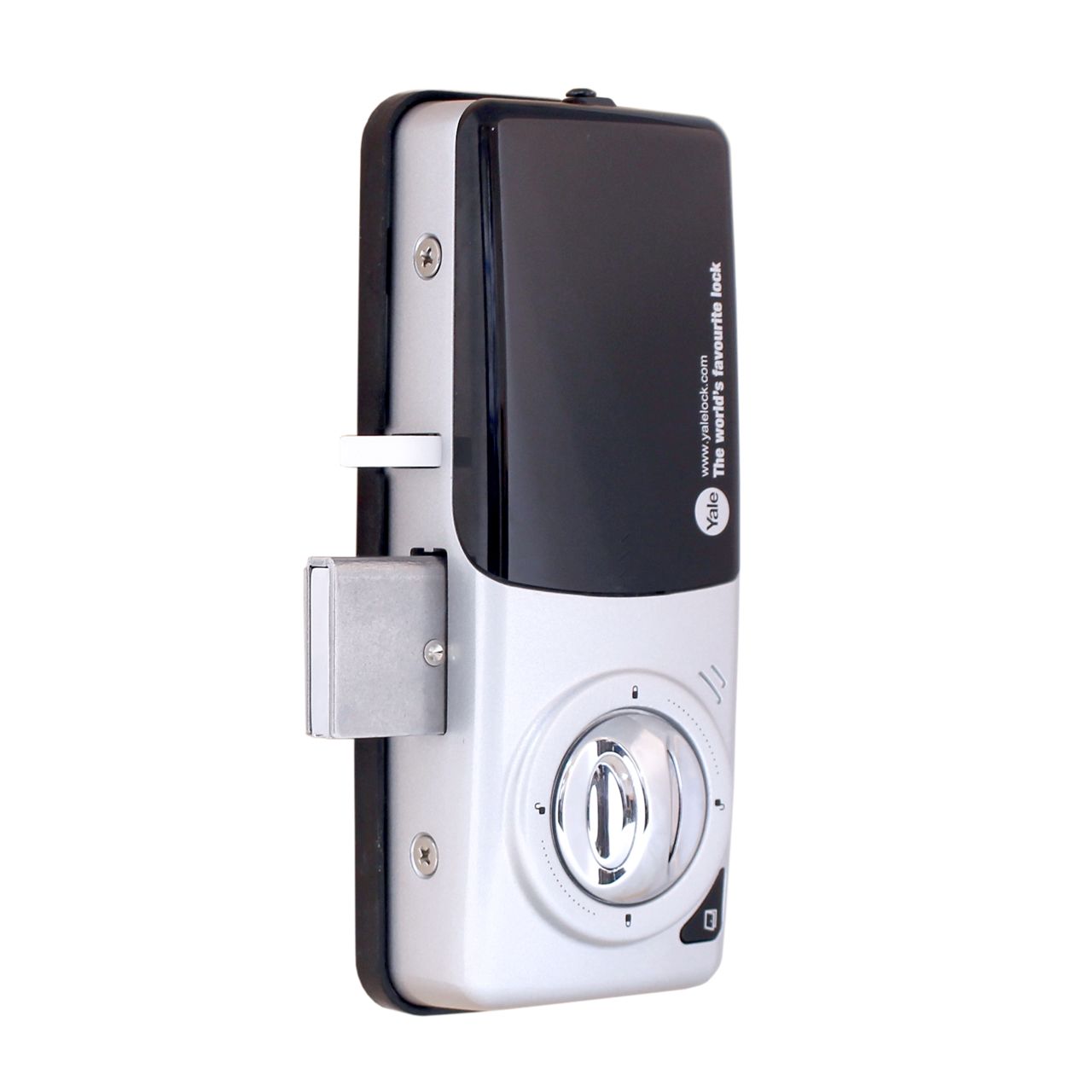

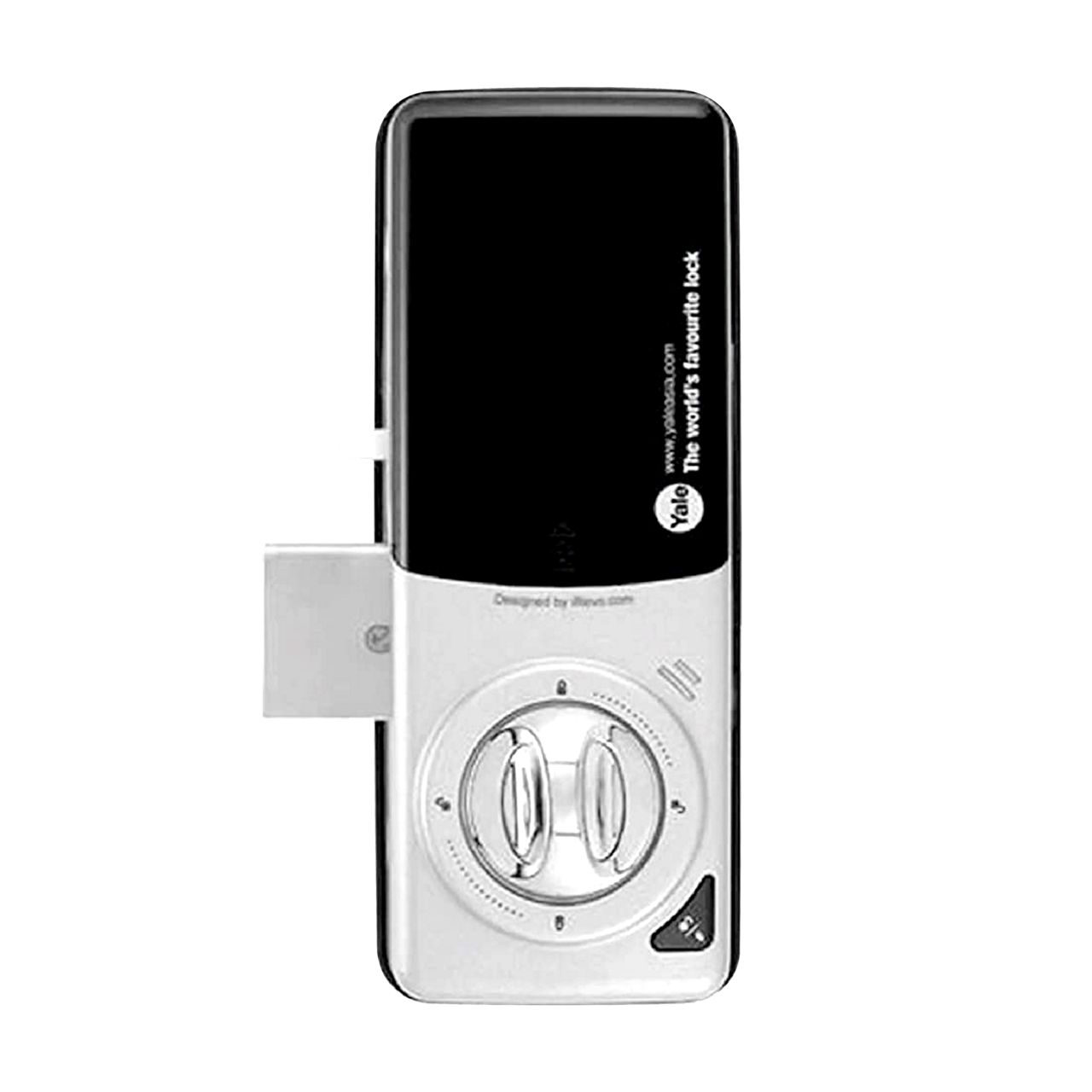

Model: YDR343 Color: Black Locking Type: Vertical Rim Lock Backset: 70 / 90mm Door Thickness: 35 - 55mm Battery: Alkaline (AA x 4)
Product Dimension:
Size (Front): 67.9(W) x 178.8(H) x 12(D) mm
Size (Back): 77.5(W) x 100.5(H) x 48.8(D) mm
Access Credential:
Fingerprints: No
PIN Code: Available
RFID Card: Available
Mechanical Key Override: No
Bluetooth: No
WiFi Connection: Available
Remote Control: Available (Optional - Sold Separately)
Maximum No. of Users:
Fingerprints: No
PIN Code: Up to 30 Users
RFID Card: Up to 40 Users
Mechanical Key Override: No
One Time Code: 1 Only
Additional Features:
Automatic Locking The Yale series automatically locks the door after checkinng it is properly closed. (Manual operation is also available.
Alarm (Break / Damage) 80dB alarm goes off if anyone attempts to damage teh lock or force the door open, or if the lock detects over 60˚.
Fake PIN Code To prevent the PIN code from being exposed, it allows you to enter Fake numbers before or after entering your PIN Code.
Low Battery and Emergency Power It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with the standard 9v battery.
Remove Control (Optional) You can use the Remote Control by installing the applicable remote control module. This option may not available depending on your country or local dealer.
