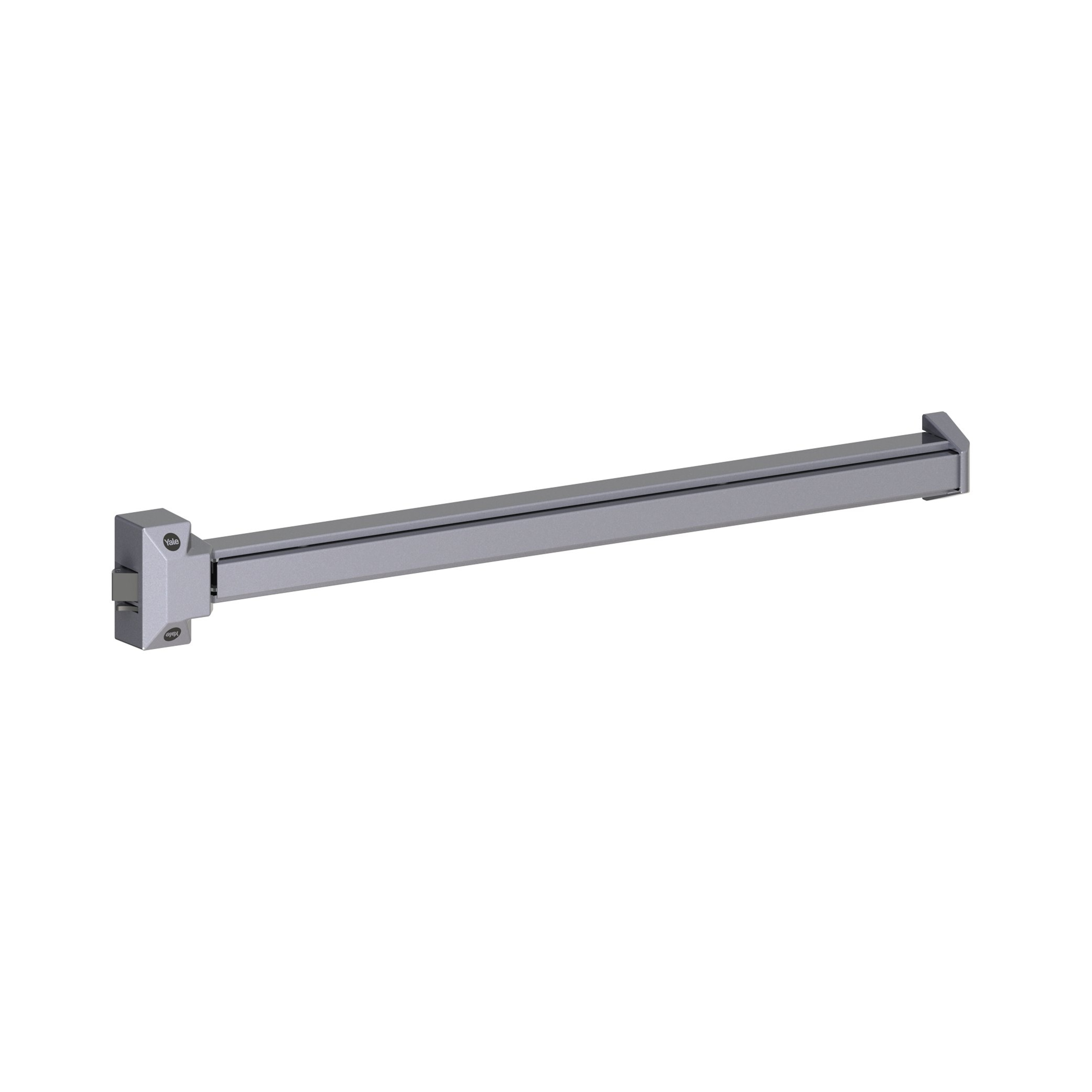

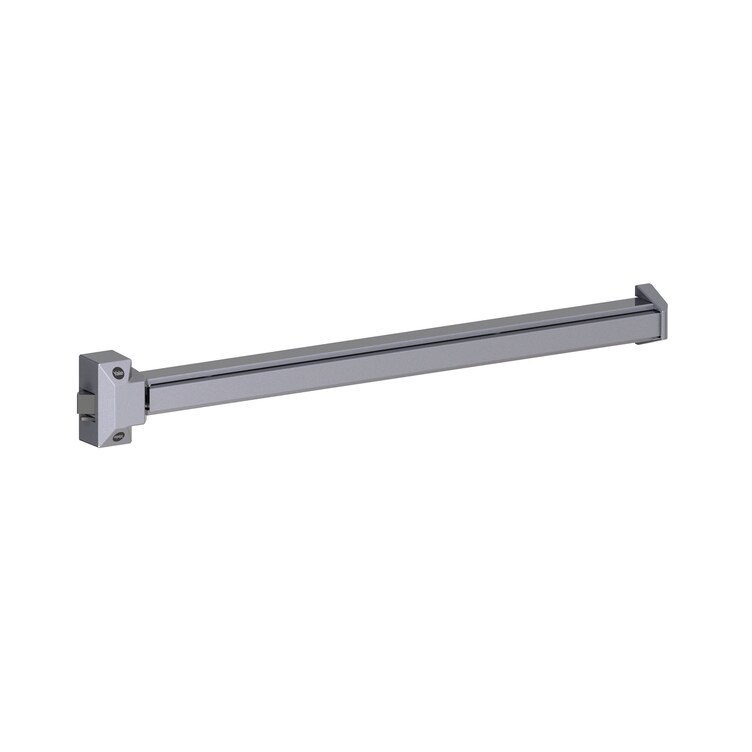

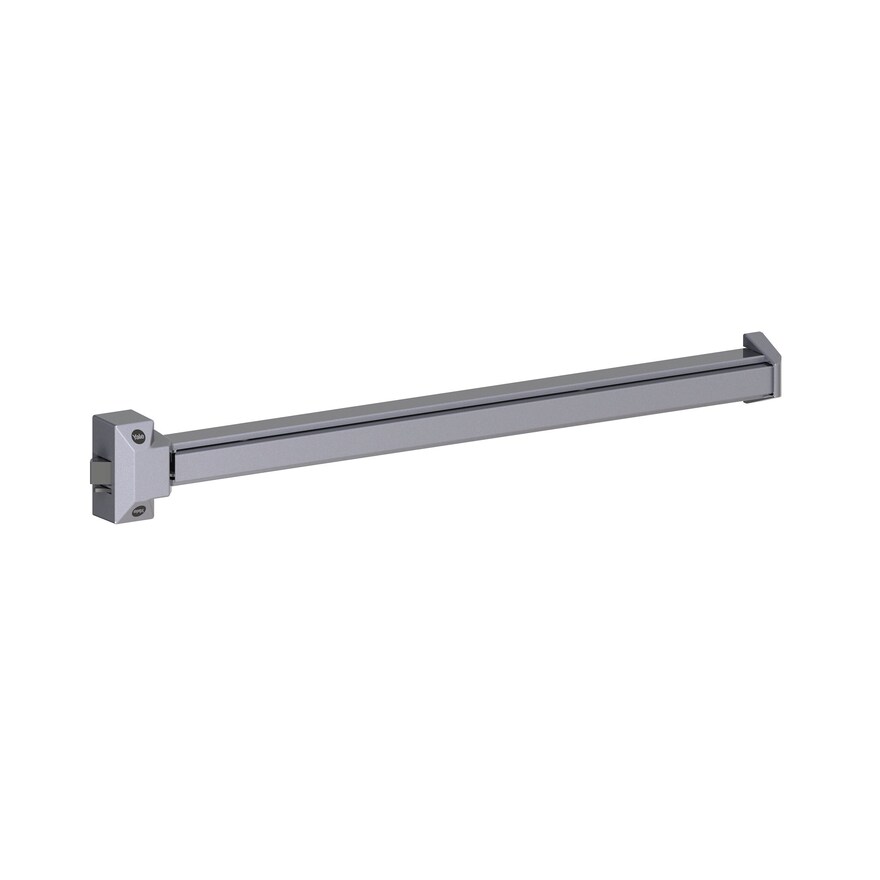

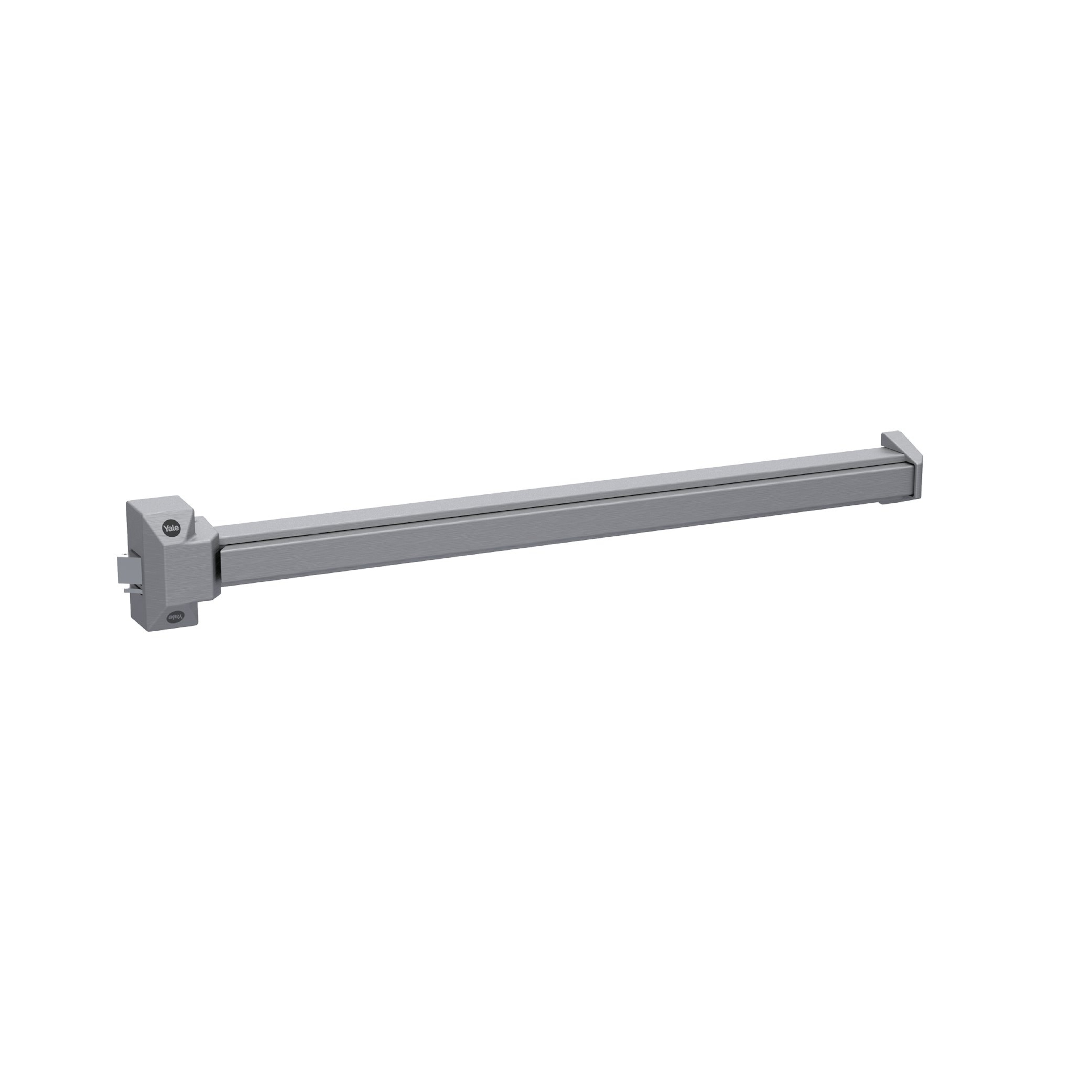

Salva-V Series Double Point Panic Exit Device
Material:
Push bar –Steel/Stainless steel pressed
Head Cover – Steel/Stainless steel pressed
Spring – Stainless steel
Latchbolt:
3/4” throw, stainless steel
Dead Latch Bolt:
5/8”, steel
Strike:
For 5/8” stop. Plus shim for 1/2” stop
Projection:
2-1/2” maximum, 1-7/8” pressed
Reversible:
Non-handed, reversible for all functions and trims
For Door:
1-3/4” thick of wood or metal door. Specify thickness if other than 1-3/4”
Backset:
2-3/4” standard
Door Width:
3” standard for door width of 2”-6” to 3”-0”
4” standard for door width of 3”-0” to 4”-0”
Stile:
4-1/4” minimum
Top & Bottom Rod Length for 7" door:
Top rod 45-1/4”, bottom rod 34”
Mounting height:
40-5/16” from CL to finished floor recommended
Mounting:
Furnished standard with sheet metal & machine screws or SNB as option
Cylinder:
For trim, knob, lever & thumb-piece type “Schlage C” key way
Dogging:
1/4 turn, hex key dogging on non-fire labeled device
UL Listed:
For “Panic Hardware” and “UL”. Labeled (1.5 hours) fire exit hardware
Operation:
Inside by slight pressure on any point of the push bar all time
