Salva-R Series Single Point Panic Exit Device
Material:
Push bar –Steel/Stainless steel pressed
Head Cover – Steel/Stainless steel pressed
Spring – Stainless steel
Latchbolt:
3/4” throw, deadlocking design
Strike:
For 5/8” stop
Projection:
Pushbar Neutral: 2-3/16”(55mm), Pushbar Depressed: 1-7/8”(47mm)
Reversible:
Non-handed, reversible for all functions and trims
For Door:
1-3/4” thick of wood or metal door
Door Width:
3” standard for door width of 2”-6” to 3”
4” standard for door width of 3” to 4”
Stile:
4-1/4” minimum
Mounting Height:
40-5/16” from CL to finished floor recommended
Mounting Fasteners:
Furnished standard with sheet metal & machine screws or SNB as option
Cylinder:

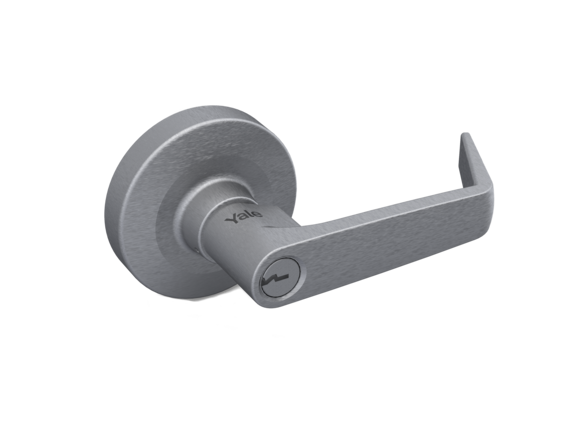

For trim, knob, lever & thumb-piece type
Dogging:
1/4 turn, hex key dogging on non-fire labeled device
UL Listed:
For “Panic Hardware” and “UL”. Labeled (3 hours) fire exit hardware
Operation:
Inside by slight pressure on any point of the push bar all time
