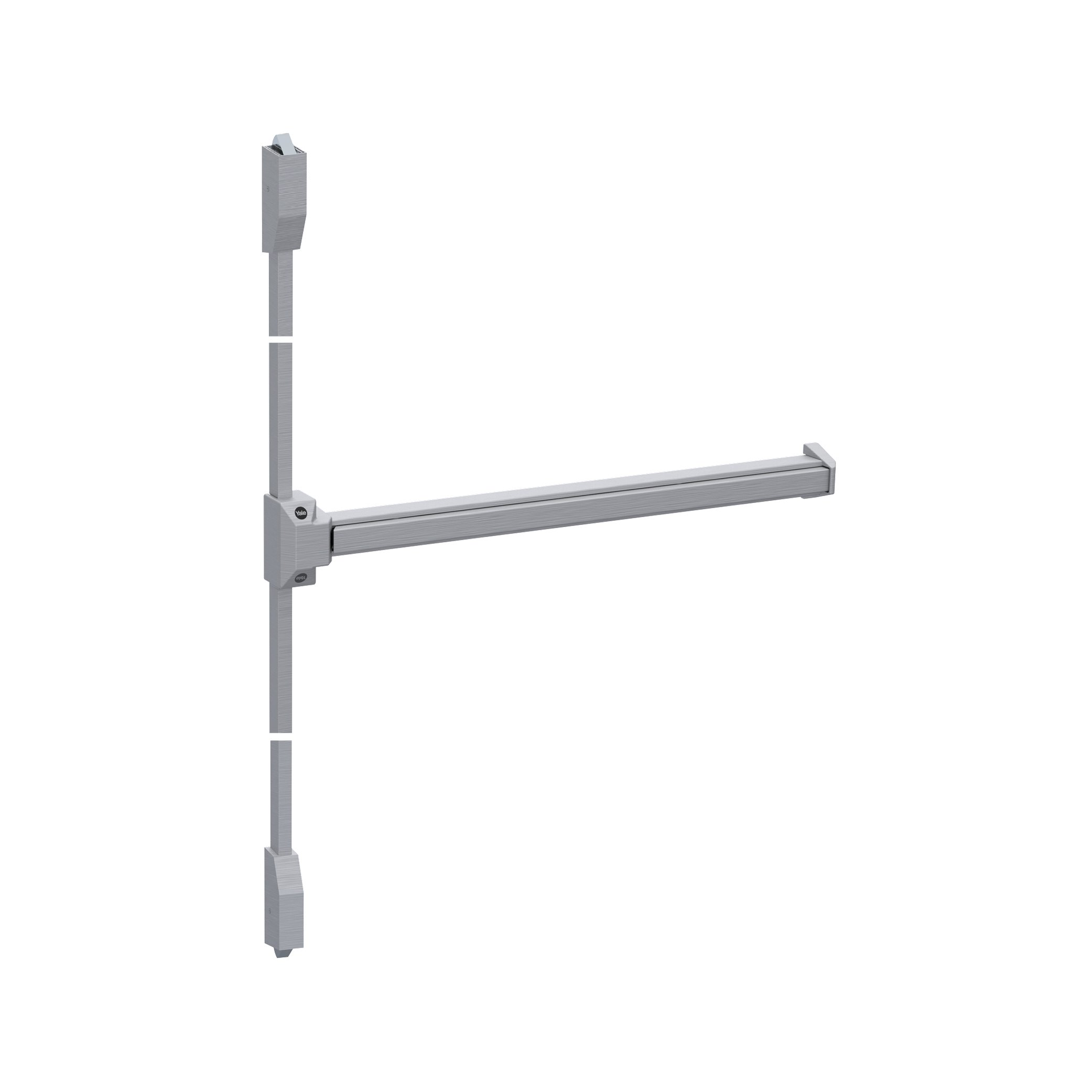

Salva-V Series Double Point Panic Exit Device

Material:

Push bar –Steel/Stainless steel pressed

Head Cover – Steel/Stainless steel pressed

Spring – Stainless steel

Latchbolt:

3/4” throw, stainless steel

Dead Latch Bolt:

5/8”, steel

Strike:

For 5/8” stop. Plus shim for 1/2” stop

Projection:

2-1/2” maximum, 1-7/8” pressed

Reversible:

Non-handed, reversible for all functions and trims

For Door:

1-3/4” thick of wood or metal door. Specify thickness if other than 1-3/4”

Backset:

2-3/4” standard

Door Width:

3” standard for door width of 2”-6” to 3”-0”

4” standard for door width of 3”-0” to 4”-0”

Stile:

4-1/4” minimum

Top & Bottom Rod Length for 7" door:

Top rod 45-1/4”, bottom rod 34”

Mounting height:

40-5/16” from CL to finished floor recommended

Mounting:

Furnished standard with sheet metal & machine screws or SNB as option

Cylinder:

For trim, knob, lever & thumb-piece type “Schlage C” key way

Dogging:

1/4 turn, hex key dogging on non-fire labeled device

UL Listed:

For “Panic Hardware” and “UL”. Labeled (1.5 hours) fire exit hardware

Operation:

Inside by slight pressure on any point of the push bar all time
