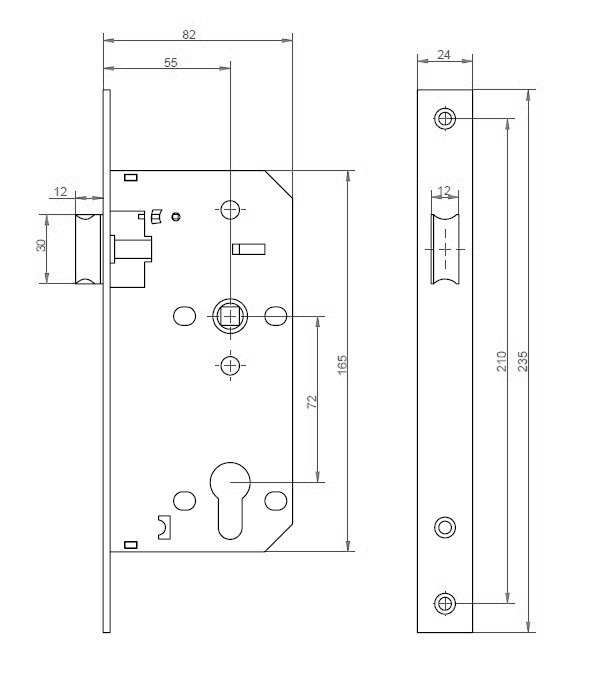

72mm Nightlatch

Specifications

• Sashlock with 72mm centres
• Backset 55mm with option of 60mm on request
• Follower 8x8mm
• Through fixing holes with 38mm centres
• Stainless steel 304 front and strike plate
• Square front and strike plate with option of radius type on request
• Brass latch and steel deadbolt
• 20mm double throw deadbolt
• Grade 8
• Door mass upto 200kg at max. closing force of 15N
• 200,000 cycles tested

Features

• Tested to EN 12209:2003 - suitable for public doors
• CE certified - suitable for fire doors
• Latch operated by handle or cylinder
• Satin stainless steel finish
• Reversible for left or right hand doors

Specifications

• Deadlock 72mm size
• Backset 55mm with option of 60mm on request
• Stainless steel 304 front and strike plate
• Square front and strike plate with option for radius type on request
• Brass latch and steel deadbolt
• 20mm double throw deadbolt
• Grade 7
• Door mass upto 100kg at max. closing force of 15N
• 200,000 cycles tested

Features

• Tested to EN 12209:2003 - suitable for public doors
• CE certified - suitable for fire doors upto 200kg
• Satin stainless steel finish
• Reversible for left or right hand door

Specifications

• Mortice Latch
• Backset 55mm with option of 60mm on request
• Follower 8x8mm
• Through fixing holes with 38mm centres
• Stainless steel 304 front and strike plate
• Square front and strike plate with option of radius type on request
• Brass latch
• Grade 7
• Door mass upto 100kg at max. closing force of 15N
• 200,000 cycles tested

Features

• Tested to EN 12209:2003 - suitable for public doors
• CE certified - suitable for fire doors
• Latch operated by handle only
• Satin stainless steel finish
• Reversible for left or right hand doors

Specifications

• Bathroom lock with 78mm centres
• Backset 55mm with option of 60mm on request
• Follower for latch and deadbolt 8x8mm
• Through fixing holes with 38mm centres
• AISI 304 stainless steel front and strike plate
• Square front and strike plate with option for radius type on request
• Brass latch and steel deadbolt
• 20mm single throw deadbolt

Features

• Latch operated by handle
• Deadbolt operated by privacy set with 8x8mm spindle
• Satin stainless steel finish
• Reversible for left or right hand door
