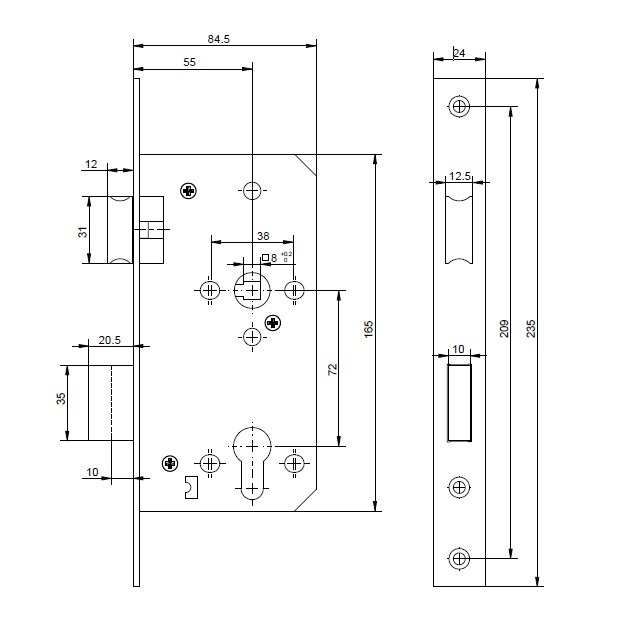

72mm Sashlock

Specifications

• Heavy duty sashlock with 72mm centres
• Backset 55mm with option of 60mm on request
• Follower 8x8mm
• Through fixing holes with 38mm centres
• AISI 304 stainless steel front and strike plate
• Square front and strike plate with option for radius type on request
• Stainless steel latch and deadbolt
• 20mm double throw deadbolt
• Grade 8
• Door mass up to 200kg at max. closing force of 15N

Features

• Tested to EN12209:2003 - suitable for public doors
• CE certified - suitable for steel fire doors upto 200kg, 240 minutes for metal doors and 120 munites for timber doors
• Latch operated by handle or cylinder
• Satin stainless steel finish
• Reversible for left or right hand door
