Yale
  • Digital Door Lock
  • Yale Link App Smart Lock

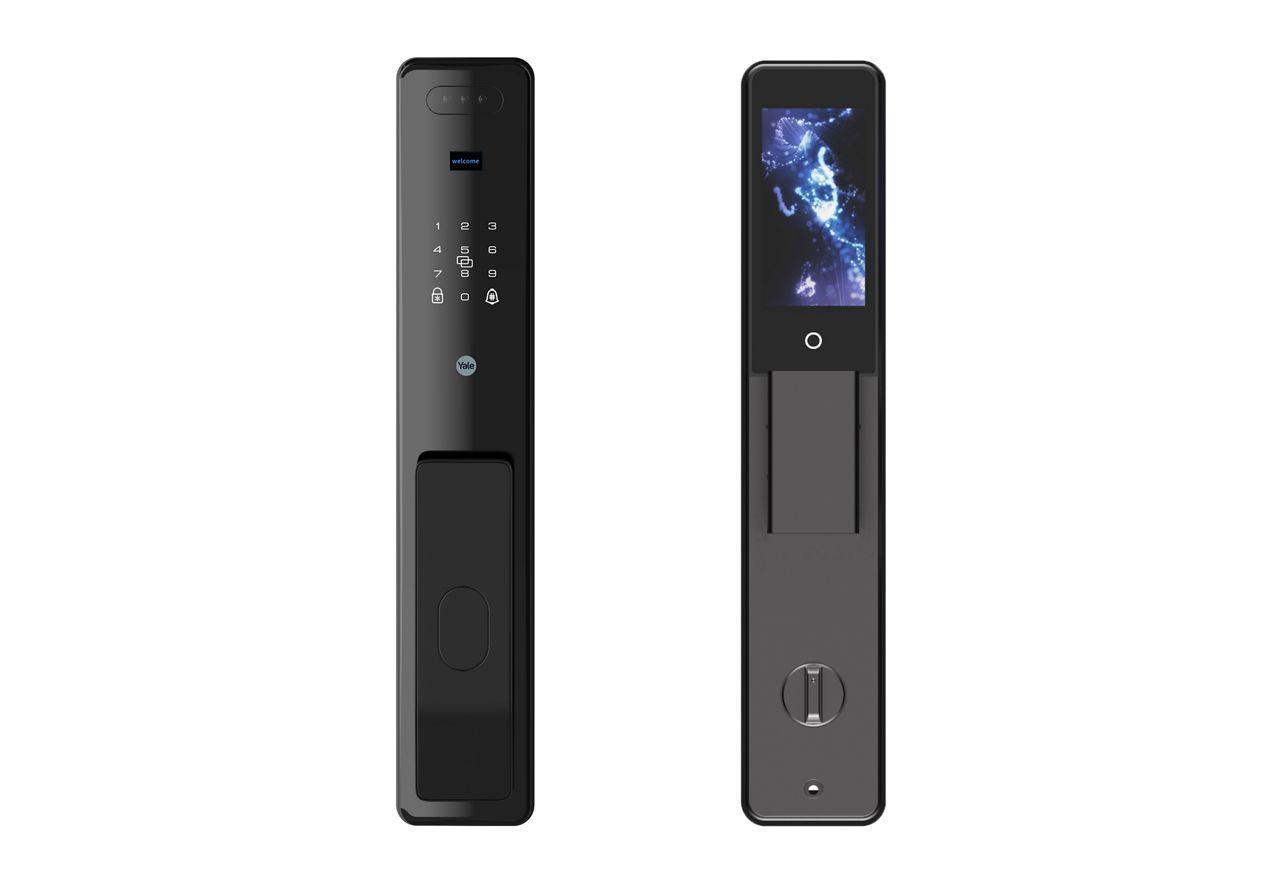

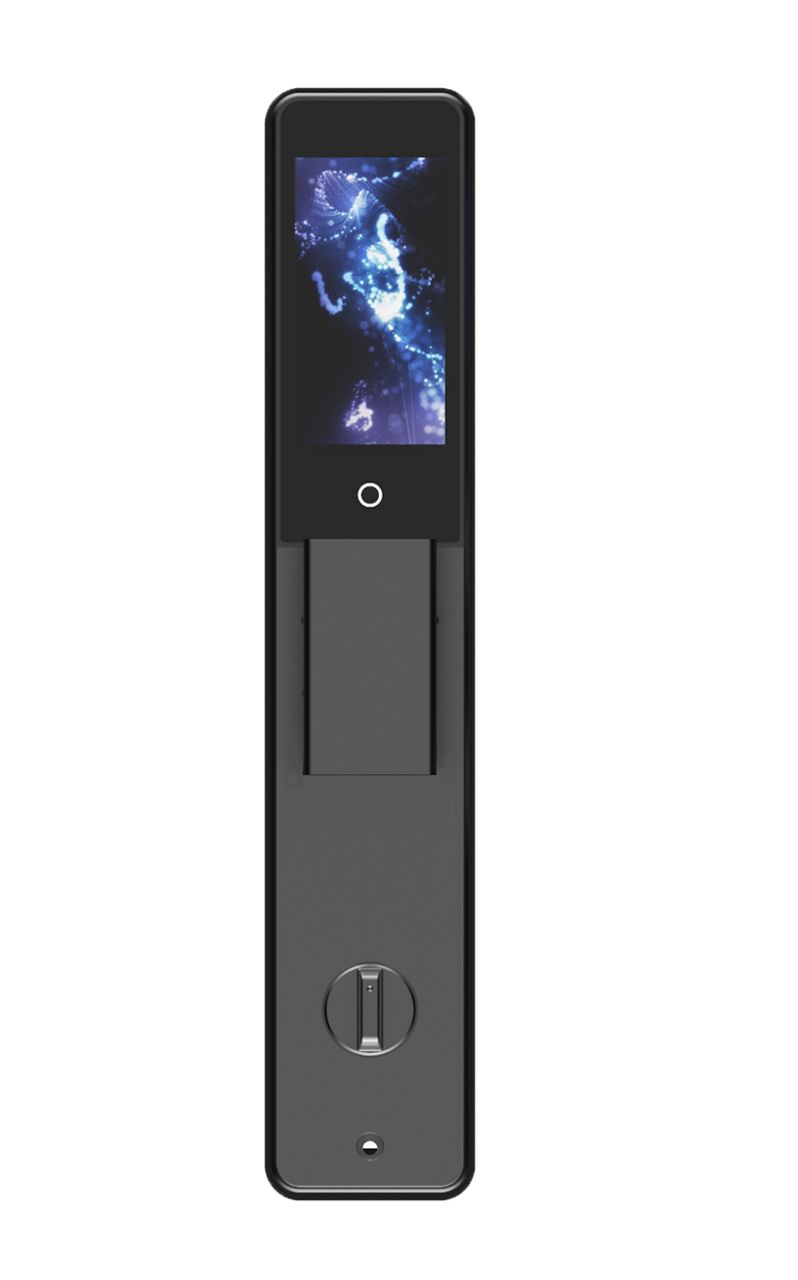

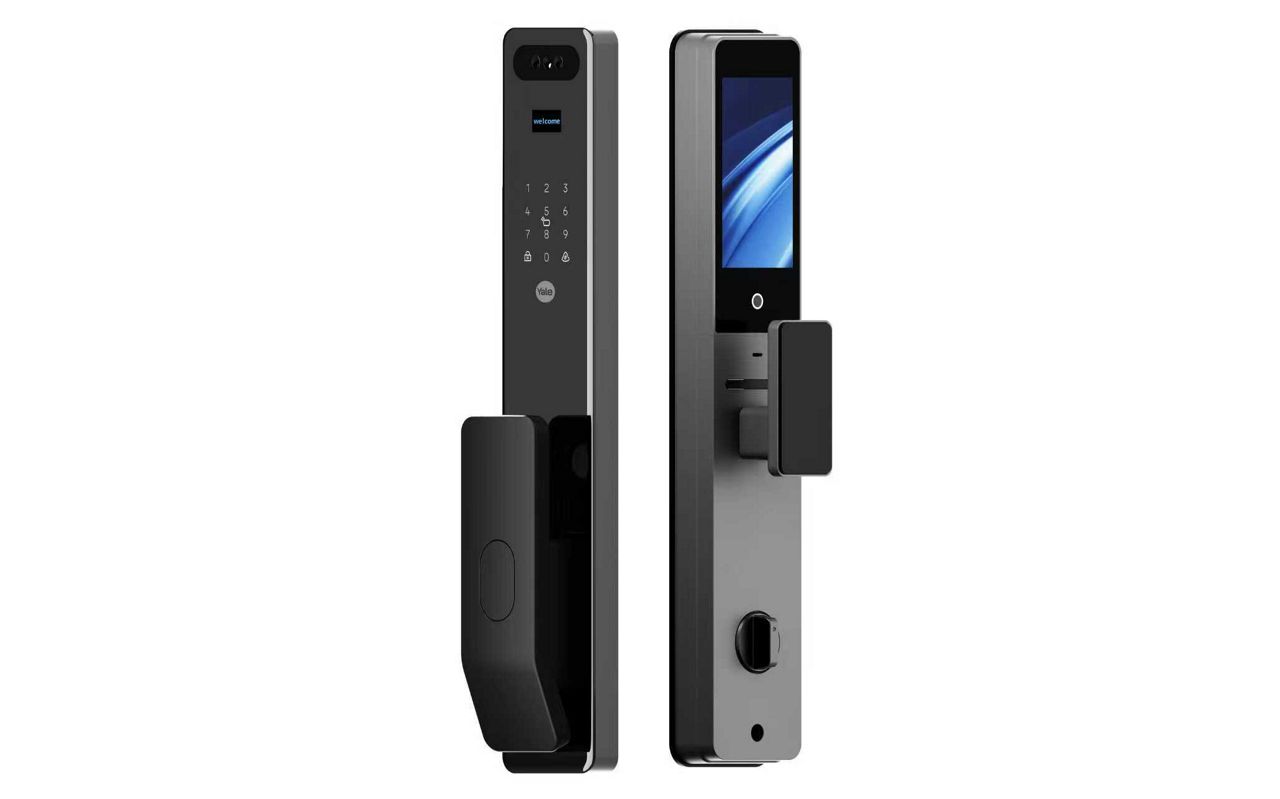

PH7160MHK

All-in-One Home Protection

The YF1063MHK features 3D facial recognition, palm scan and an intelligent peephole function. Yale's unique and outstanding smart eye design integrates facial recognition, a digital door viewer, a doorbell, a 4-inch large screen, and various functions of a smart lock, providing users with enhanced security experience beyond traditional methods. The digital door viewer uses a 120° ultra-wide-angle lens and a high-definition indoor screen to fully display the real scene at the door, equipped with a 1-meter infrared night vision capability, allowing clear visibility even in darkness. For users such as those living alone, the elderly, and children, it enables a clear observation of the situation outside the door without having to tiptoe or open the door.

Product Features

  •  Five major technological protections to prevent illegal intrusion

Anti-pry alarm | Three-minute lock | Anti-black box cracking | Virtual password | Anti-static 15,000 volts

  •  Multiple humanized designs to enjoy a worry-free life

When the battery is low, intelligent reminder to replace the battery

Type-C power interface for emergency charging

Extreme operating temperature, no fear of temperature difference

Internal forced lock, lock the outdoor opening

Extreme operating temperature, no fear of temperature difference

ph7160mhk_front
ph7160mhk_front

1 of 4

  • Model: YF7160MHK
  • Locking Type: Push Pull Mortise
  • Entry Options: Face recognition, Fingerprints, PIN Code, Key Cards, Mechanical Keys
  • Face Recognition: Store up to 100 Users
  • Fingerprint System: One-touch fingerprint (Store up to 50 users)
  • Mechanical Keys: 2 keys
  • PIN Code: 6 – 9 digits
  • Card Key: 2 cards (Register up to 100 cards)
  • Color: Space Gray / Black
  • Backset: 70mm
  • Door Thickness: 40 - 120mm
  • Battery: Lithium Battery
  • Size (Front): 22.3 (D) x 76 (W) x 423 (H) mm
  • Size (Back): 31.5 (D) x 80 (W) x 423 (H) mm
  • user_manual-ph7160mhk_chi(PDF, 4 MB)
  • user_manual-ph7160mhk_eng.pdf(PDF, 2 MB)
