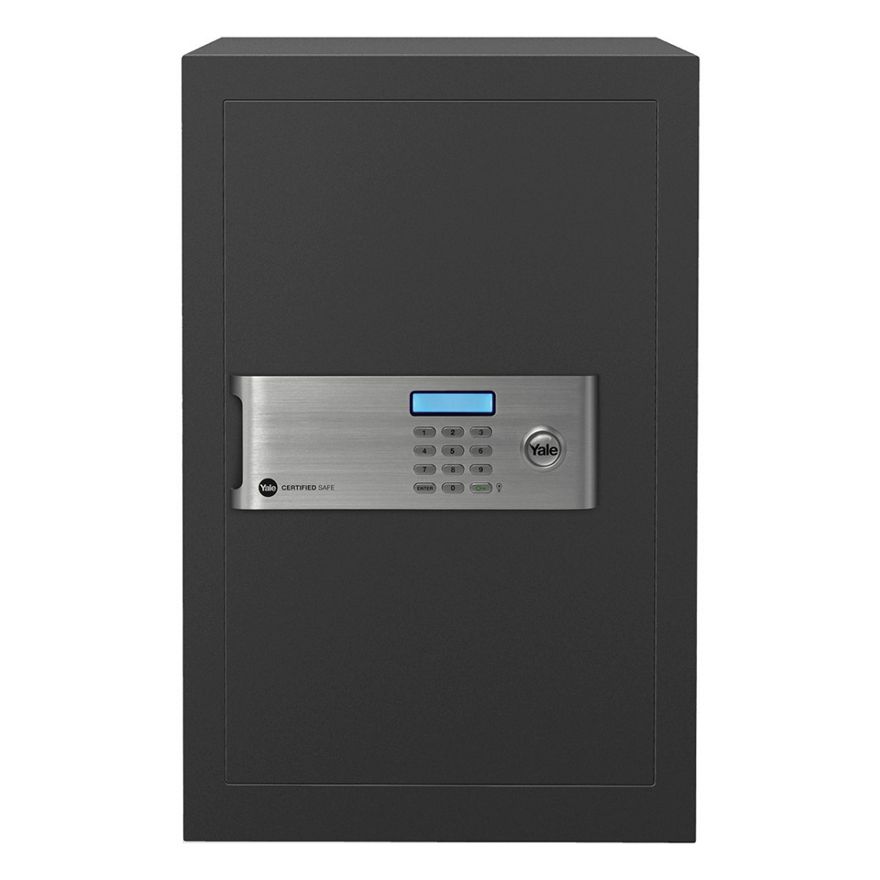

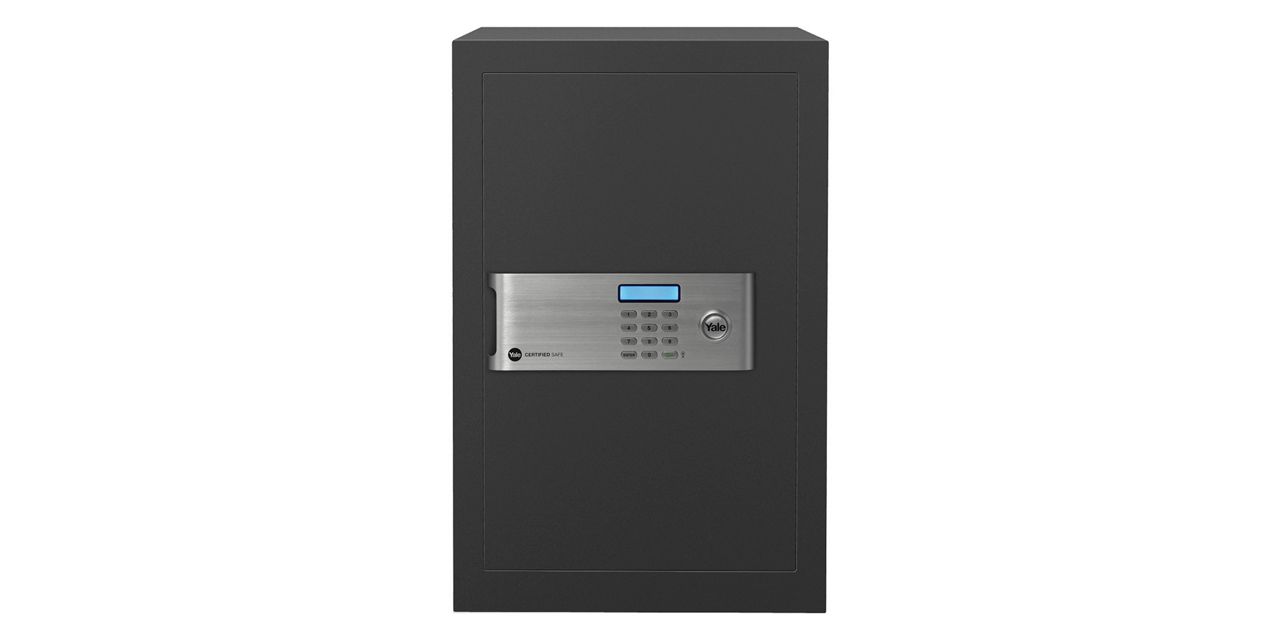

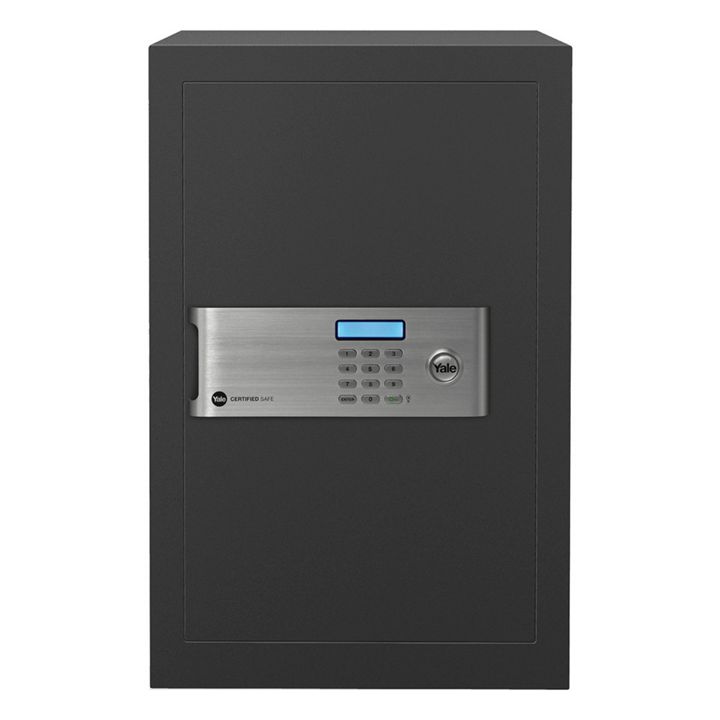

YSM/520/EG1 - Yale Certified Professional Safe Box

Digital safe with digital keypad

Features and Benefits

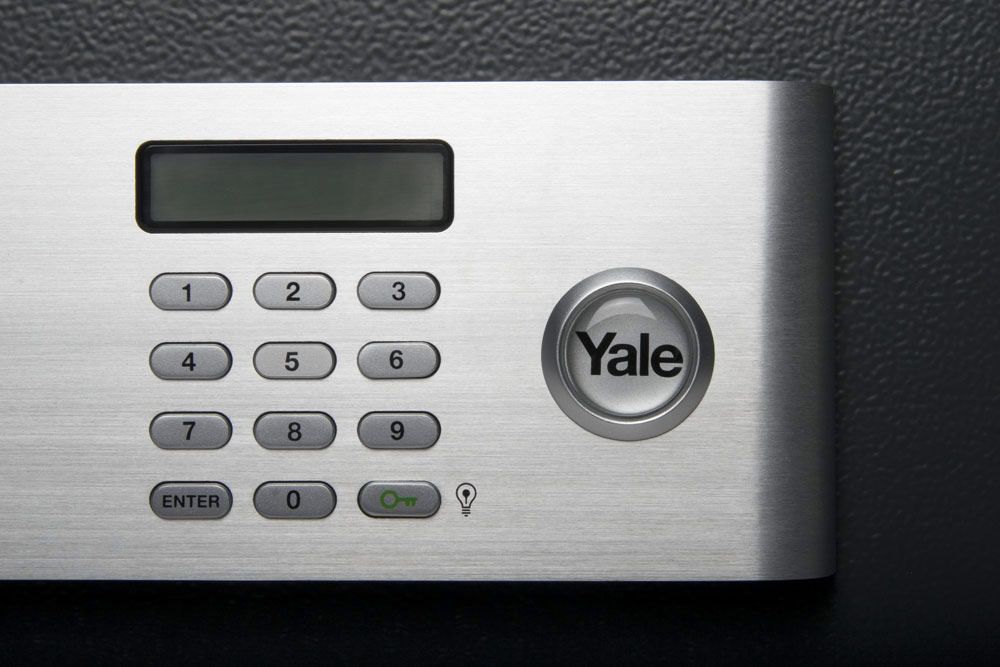

  • Electronic Lock with digital keypad
  • Blue backlight display
  • Laser cut steel door, with auto-opening function (when Correct code is entered)
  • Reinforced steel hinge
  • Brushed aluminum face plate
  • Concealed fixing points and mounting bolts included
  • Interior finish with full felt lining
  • Internal light source
  • Armored steel plates protecting locking mechanism
  • Box packaging

1 of 4

  • Model :YSM/520/EG1
  • Interior dimensions (H x L x W):224x157x206mm  (This size exclude 18mm thick keyboard panel)
  • Interior dimensions (H x L x W):510 x 337 x 290mm
  • Net weight:29 kg
  • Door thickness: 6mm

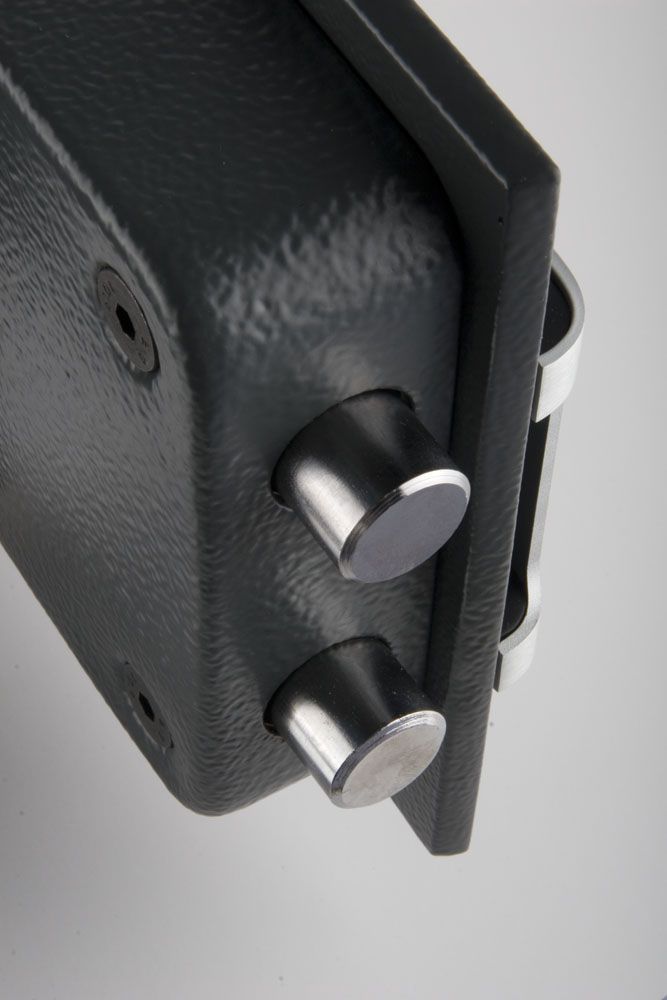

  • Security system: 22mm motorized drive switch door latch, 6-piece double-blade mechanical lock
  • Mosaic mode: comes with heavy-duty fixing bolts and floor protection matsInterior wall: full felt cushion covering
  • Interval: detachable solid inner panel
  • Light: 6 LED lights
  • Enclosure reinforcement: added hard steel plate protection at important locations

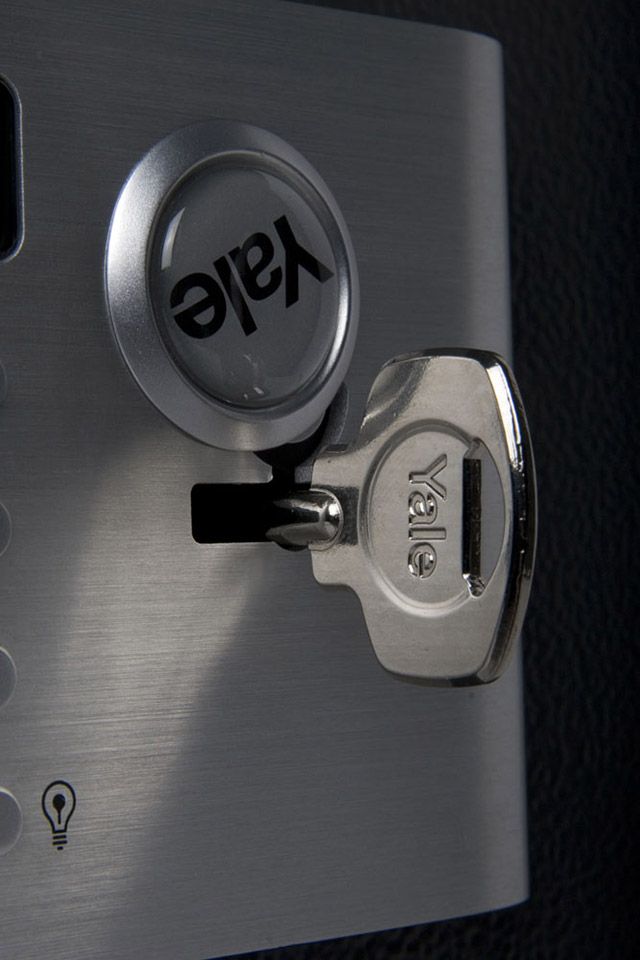

  • Backup key: two original emergency metal key cores from Yale
  • Passed identification/standard: Silver Accreditation (UK, 2016) level anti-theft standard and Secure by Design certificate issued by the famous British testing agency Sold Secure
  • 7d219-yale-certified-security-safe-user-manual-entc(PDF, 3 MB)
  • YALE_Safes_Fitting_Guide.indd(PDF, 263 KB)
