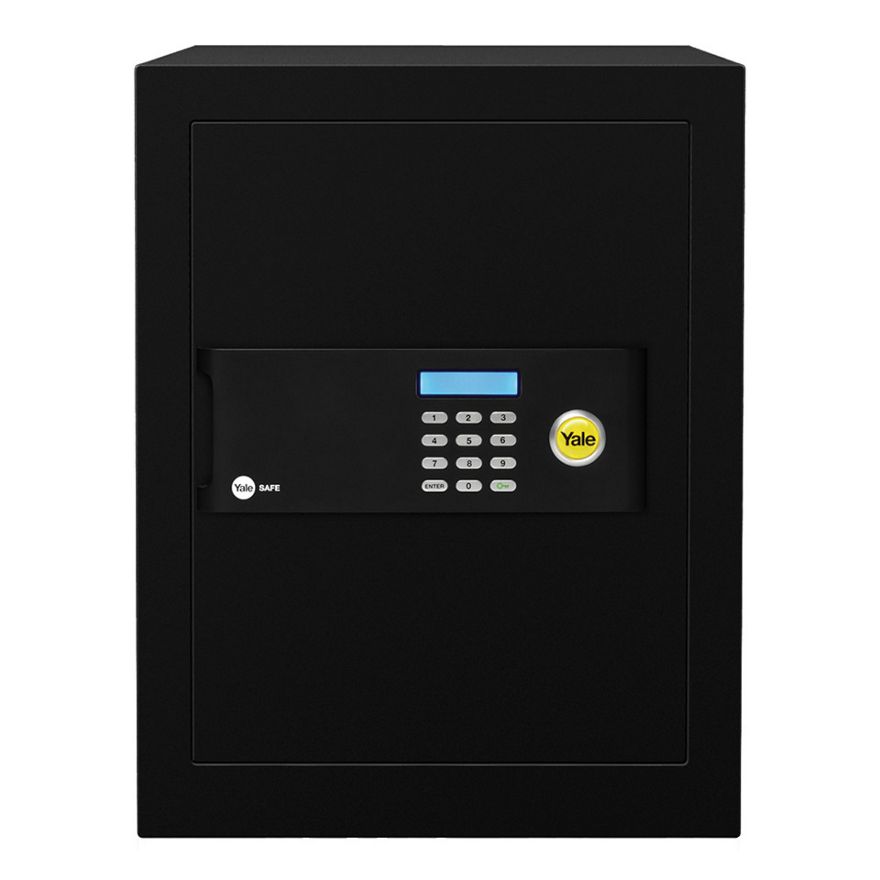

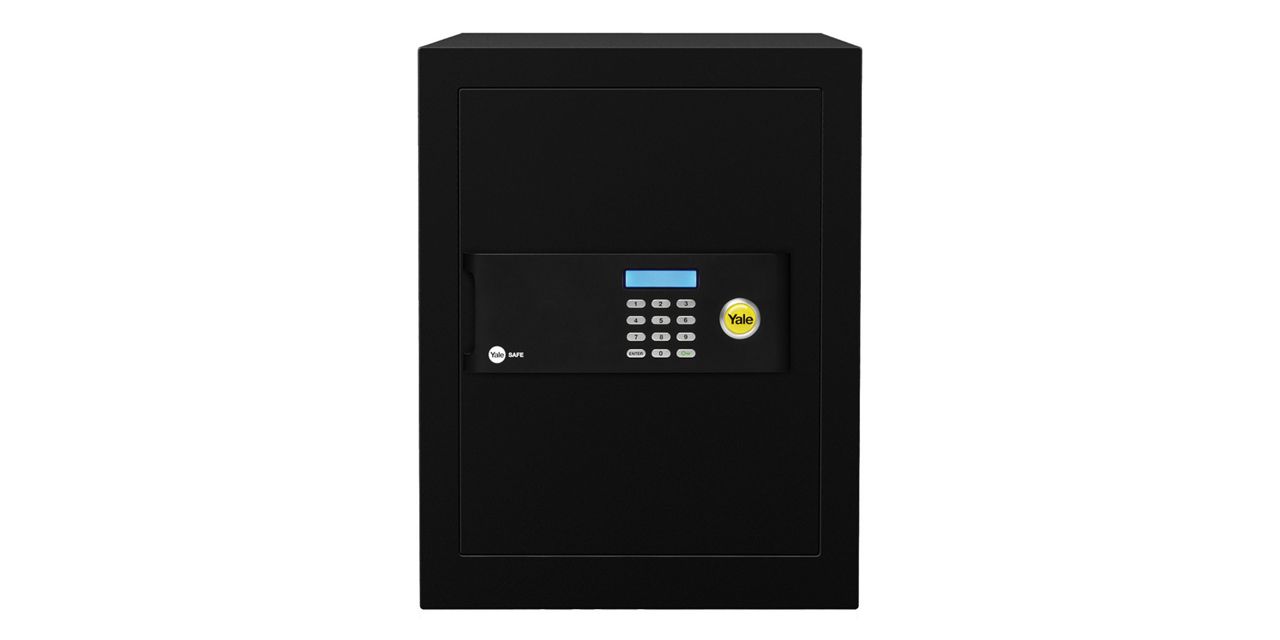

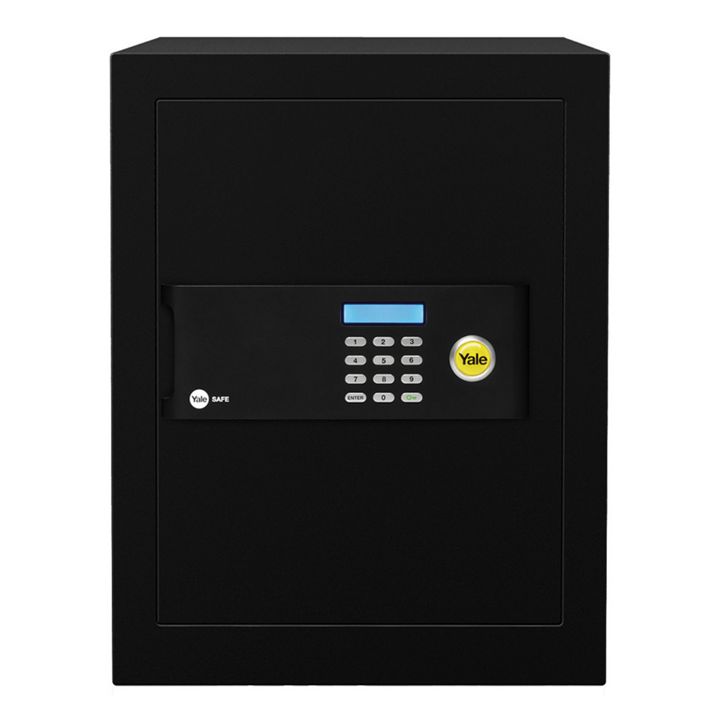

YSB/400/EB1 - Yale Standard Office Safe Box (Large)

File type / large anti-theft clip million, extra large capacity, suitable for storing all kinds of important documents, valuables.

Features and Benefit

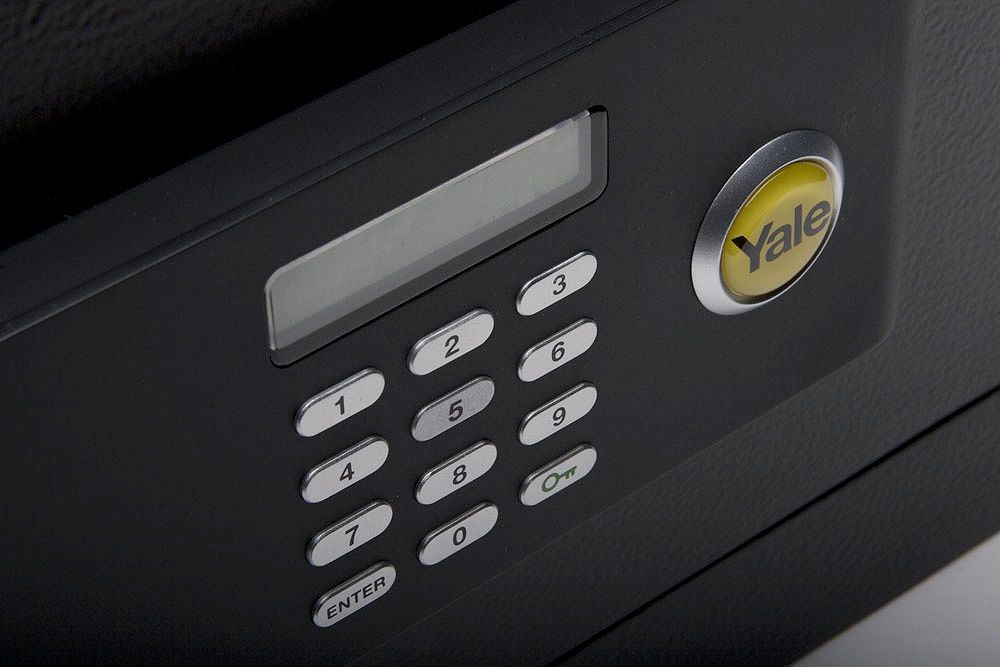

  • Electronic Lock with digital keypad
  • Blue backlight display
  • Laser cut steel door, with auto-opening function (when Correct code is entered)
  • Reinforced steel hinge
  • Brushed aluminum face plate
  • Concealed fixing points and mounting bolts included
  • Interior finish with full felt lining
  • Internal light source

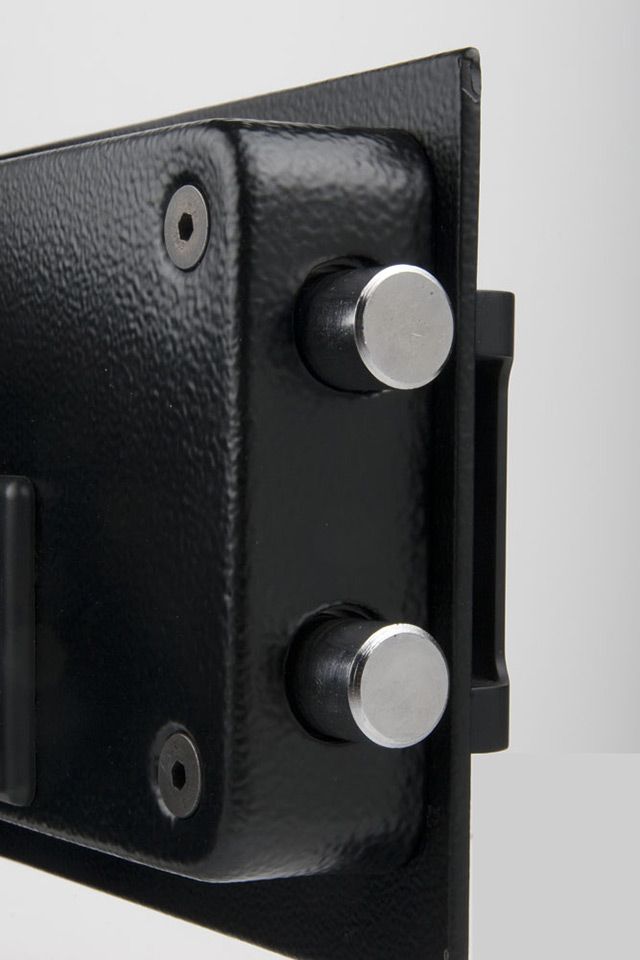

  • Armored steel plates protecting locking mechanism
  • Box packaging

1 of 4

  • Model:YSB/400/EB1
  • Exterior dimensions (H x L  x W):400 x 350 x 340 mm (This size exclude 18mm thick keyboard panel)
  • Interior dimensions (H x L x W):392 x 345 x 285 mm
  • Net weight:16 kg
  • Security system: 22mm motorized drive switch door latch, 6-piece double-blade mechanical lock, six-lock double-tooth emergency lock system
  • Mosaic mode: comes with heavy-duty fixing bolts and floor protection mats
  • Interior wall: enamel paint
  • Interval: detachable solid inner panel
  • Battery: 4 AA batteries (1.5V each, total 6V)

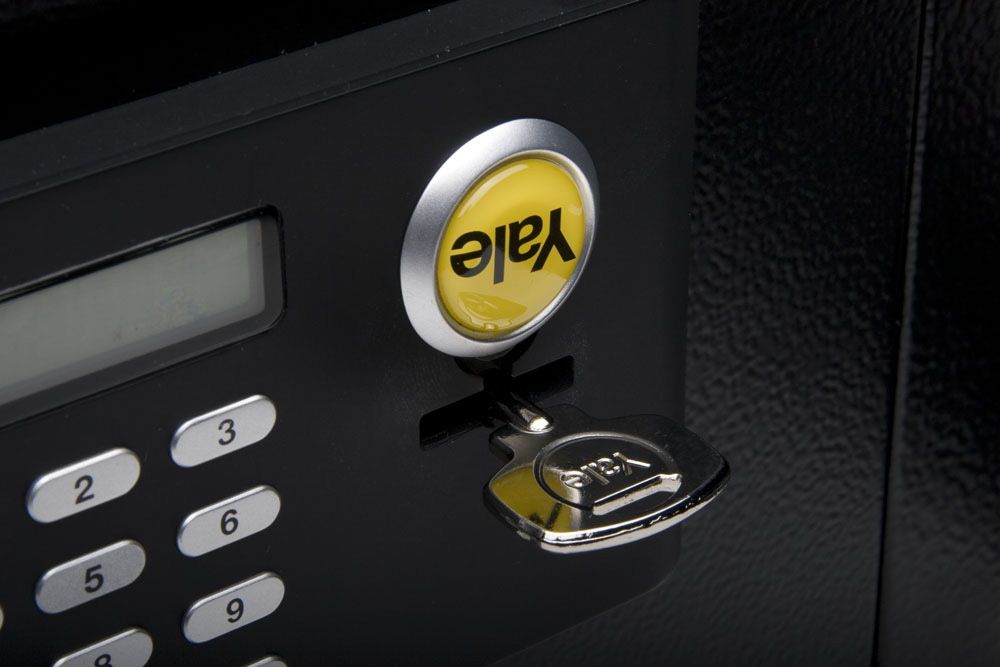

  • • Backup key: two original emergency metal key cores from Yale• Other configuration: the box body is pre-drilled, so that the user can attach the bolt to the wall or the floor.
  • Yale Safe (New Range 2008) Chinese Leaflet 050308(PDF, 199 KB)
  • YALE_Safes_Fitting_Guide.indd(PDF, 263 KB)
  • f5030-yale-certified-security-safe-user-manual-entc(PDF, 3 MB)
