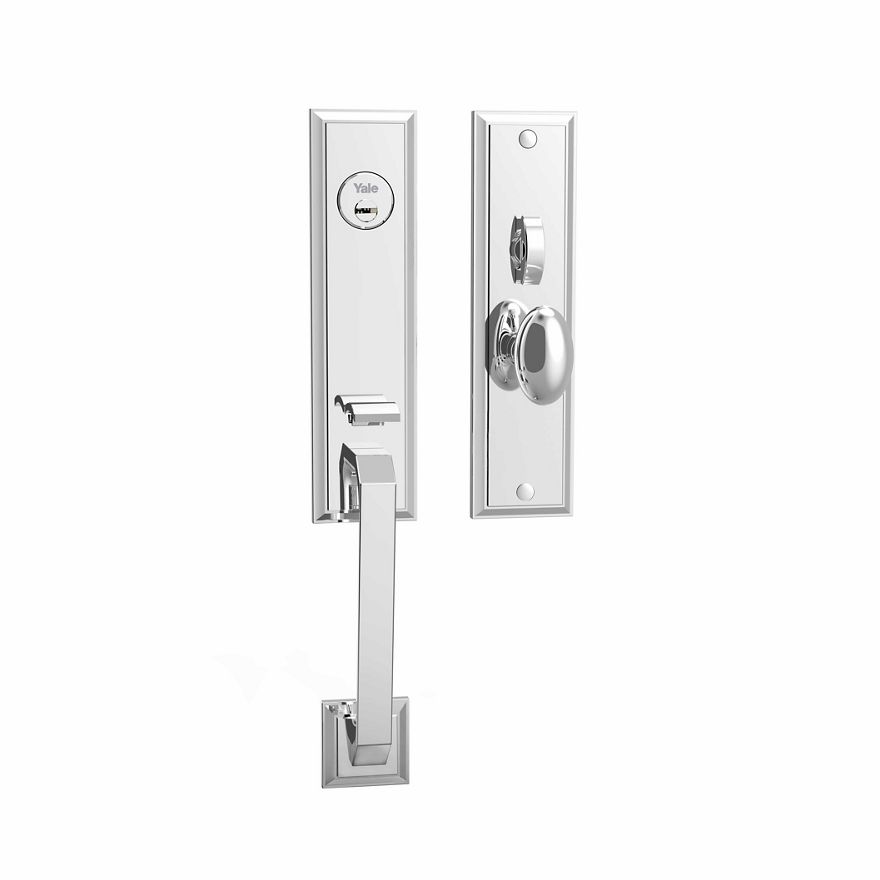

M8773 L2 - Yale M8700 series Classic Style Entrance Door Handle Set L2

Features

• ANSI Grade 2 Enrance Handleset is forged solid brass with stylish design
• Stainless steel mortise lock case provides highest level of key operated security and represent the industry standard of quality
• Ideal for doors with thickness of 45-55mm and backset 70mm (2-3/4")
• More than 800,000 times lifecycle tested.

Patented Anti-panic Function
The latchbolt & deadbolt will retract simultaneously by turning the interior lever (patented).

Available Finishes
Physical Vapor Deposition - PVD
Antique Brass - AB

Dimension for Front Plate and Back Plate Diagram (mm)
D-480, E-225, F-60, G-345, H-60
