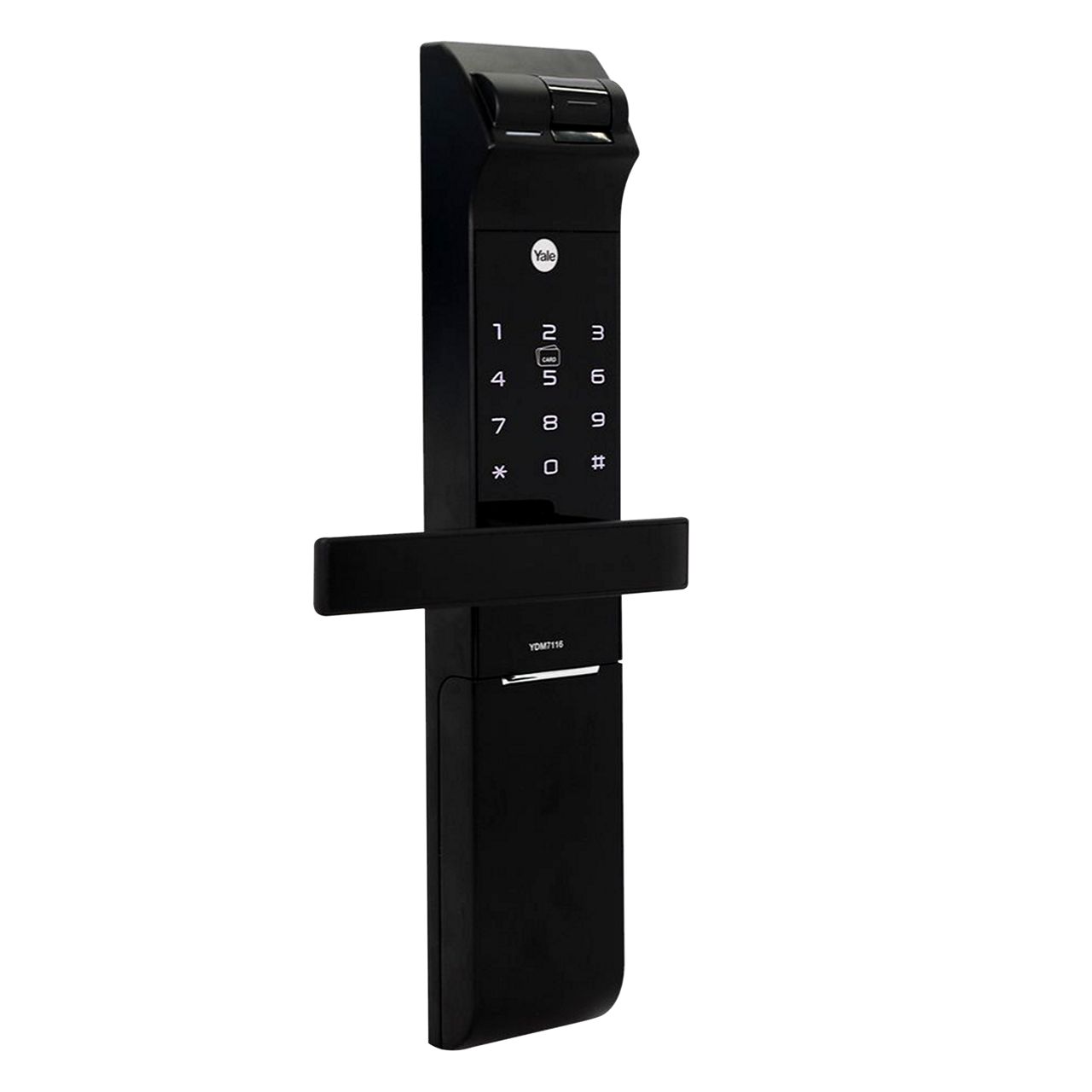

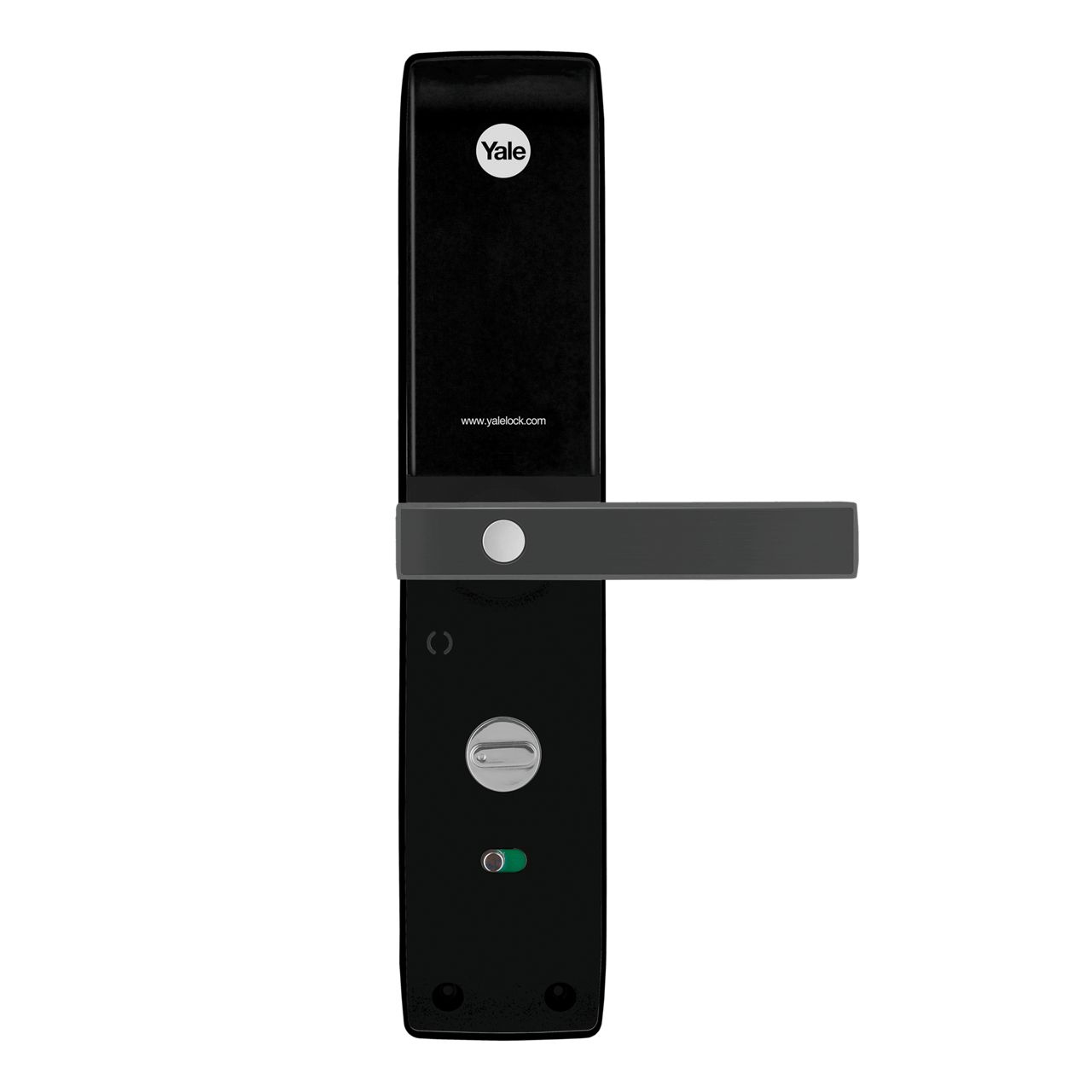

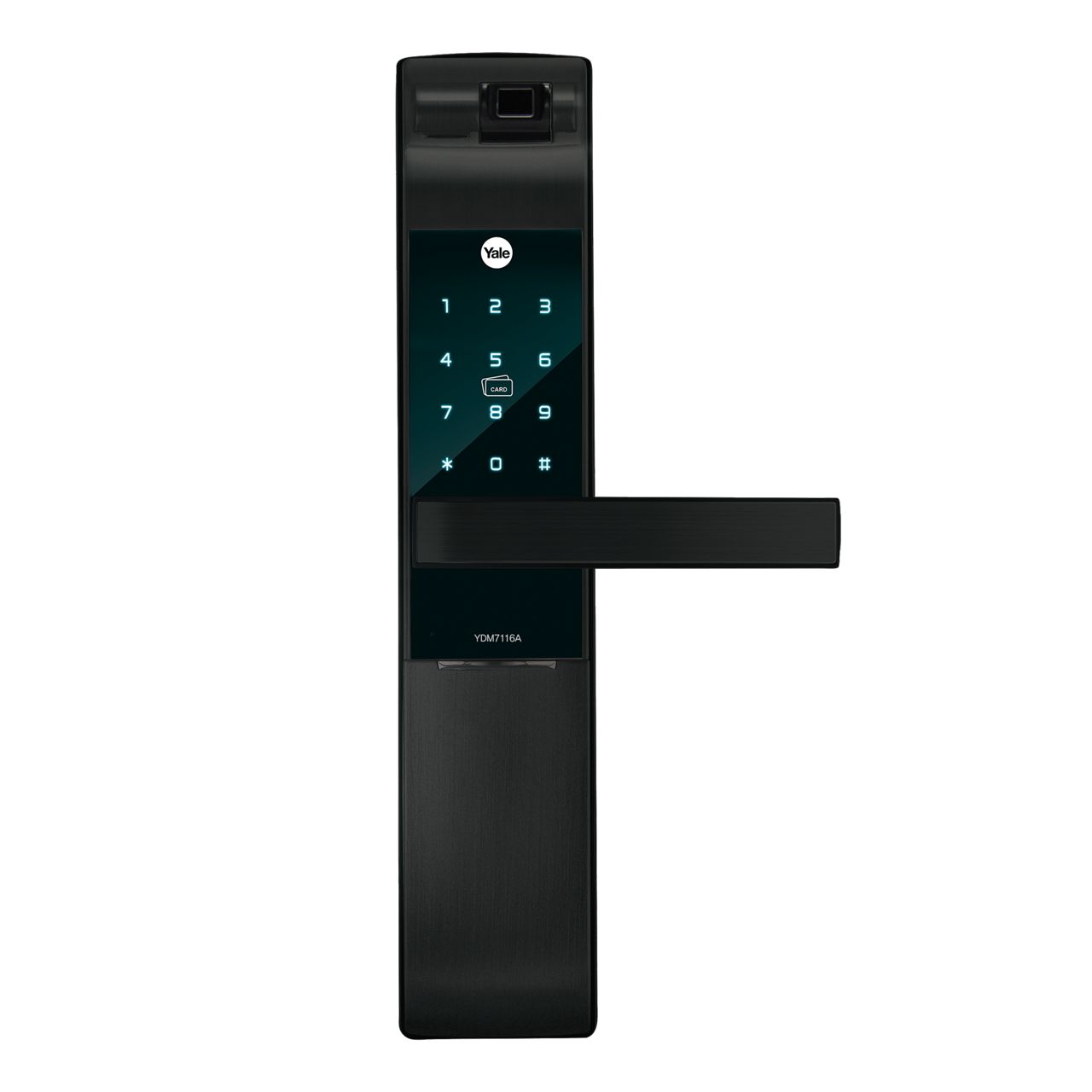

YDM7116A

Model: YDM7116A
Color: Black
Locking Type: Mortise
Backset: 60 / 70mm
Door Thickness: 35 - 100mm
Battery: Alkaline (AA x 4)

Product Dimension:

• Size (Front): 68(W) x 340(H) x 40.18(D) mm
• Size (Back): 72(W) x 344(H) x 36(D) mm

Access Credential:

• Fingerprints: Available
• PIN Code: Available
• RFID Key Tag: Available
• Mechanical Key Override: Available
• Bluetooth: Available
• WiFi Connection: Available
• Remote Control: Available (Optional - Sold Separately)

Maximum No. of Users:

• Fingerprints: Up to 100 Users
• PIN Code: Up to 100 Users
• RFID Key Tag: Up to 100 Users
• Mechanical Key Override: 2 Keys
• One Time Code: 1 Only
