Yale

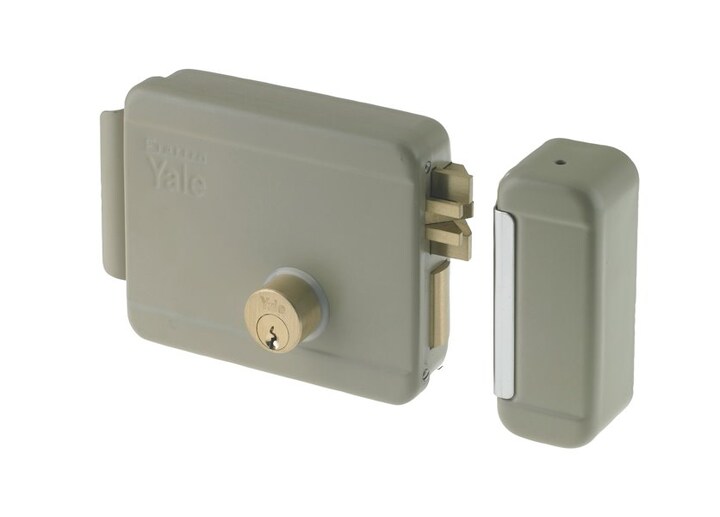

68080 Electric rim locks with turns for gates

Specifications:

  • Latch operated from outside and inside by key and remotely by low voltage pulse (10W-12V)
  • Mechanical bolt operated by key from inside and outside



Features:

  • Lock for right and left handed gates
  • Backset 50, 60 and 70mm
  • Painted or galvanized steel finish
  • Striker included
  • Pair of inside/outside cylinders included, 3 keys.
  • Cover plate included
  • ProductProduct IDAttributes
    Right hand double cylinder lock, 2 throws68080501
    Finish_IT: Painted steel
    Right hand double cylinder lock, 2 throws68080601
    Finish_IT: Painted steel
    Right hand double cylinder lock, 2 throws68080701
    Finish_IT: Painted steel
    Left hand double cylinder lock, 2 throws68080502
    Finish_IT: Painted steel
    Left hand double cylinder lock, 2 throws68080602
    Finish_IT: Painted steel
    Left hand double cylinder lock, 2 throws68080702
    Finish_IT: Painted steel
    Right hand double cylinder lock, 2 throws6808050105
    Finish_IT: Zinc-plated steel
    Right hand double cylinder lock, 2 throws6808060105
    Finish_IT: Zinc-plated steel
    Right hand double cylinder lock, 2 throws6808070105
    Finish_IT: Zinc-plated steel
    Left hand double cylinder lock, 2 throws6808050205
    Finish_IT: Zinc-plated steel
    Left hand double cylinder lock, 2 throws6808060205
    Finish_IT: Zinc-plated steel
    Left hand double cylinder lock, 2 throws6808070205
    Finish_IT: Zinc-plated steel

Similar products

  • 68000 Electric Rim Locks for Gates

    Specifications:

    • Latch operated from outside and inside by key and remotely by low voltage pulse (10W-12V)
    • Lock for right and left handed gates



    Features:

    • Backset 40 - 50 - 60 - 70 and 80mm
    • Painted steel finish
    • Striker included
    • Outside cylinder included, 3 keys
    • Cover plate included
    • Painted or zinc plated steel

  • 68400 Electric Rim Locks for Gates

    Specifications:

    • Latch operated from outside by key and from inside by button and remotely by low voltage pulse (10W-12V)
    • Lock for right and left handed gates



    Features:

    • Backset 40 - 50 - 60 - 70 and 80mm
    • Painted steel finish
    • Striker included
    • Outside cylinder included 2250045, 3 keys
    • Cover plate included

  • 68800 Electric Rim Locks for Gates

    Specifications:

    • Latch operated from outside by key and from inside by button (can be locked with key) and remotely by low voltage pulse (10W-12V)
    • Lock for right and left handed gates



    Features:

    • Backset 50 - 60 - 70 and 80mm
    • Painted or galvanized steel finish (suffix 05)
    • Striker included
    • Pair of inside/outsid cylinder included 2250045, 3 keys
    • Cover plate included

  • 68880 Electric rim locks with turns for gates

    Specifications:

    • Latch operated from outside by key and from inside by button (can be locked with key) and remotely by low voltage pulse (10W-12V)
    • Mechanical bolt operated by key from inside and outside


    Features:

    • Lock for right and left handed gates;backset 50, 60 and 70mm
    • Painted or galvanized steel finish
    • Striker included
    • Pair of inside/outside cylinders included, 3 keys

  • 68090 Electric rim locks with reversed latch for gates

    Specifications:

    • Latch operated from outside and inside by key and remotely by low voltage pulse (10W-12V)


    Features:

    • Lock for right and left handed outward-opening gates
    • Backset 60mm
    • Painted steel finish
    • Striker included
    • Pair of inside/outside cylinders included, 3 keys
    • Cover plate included
