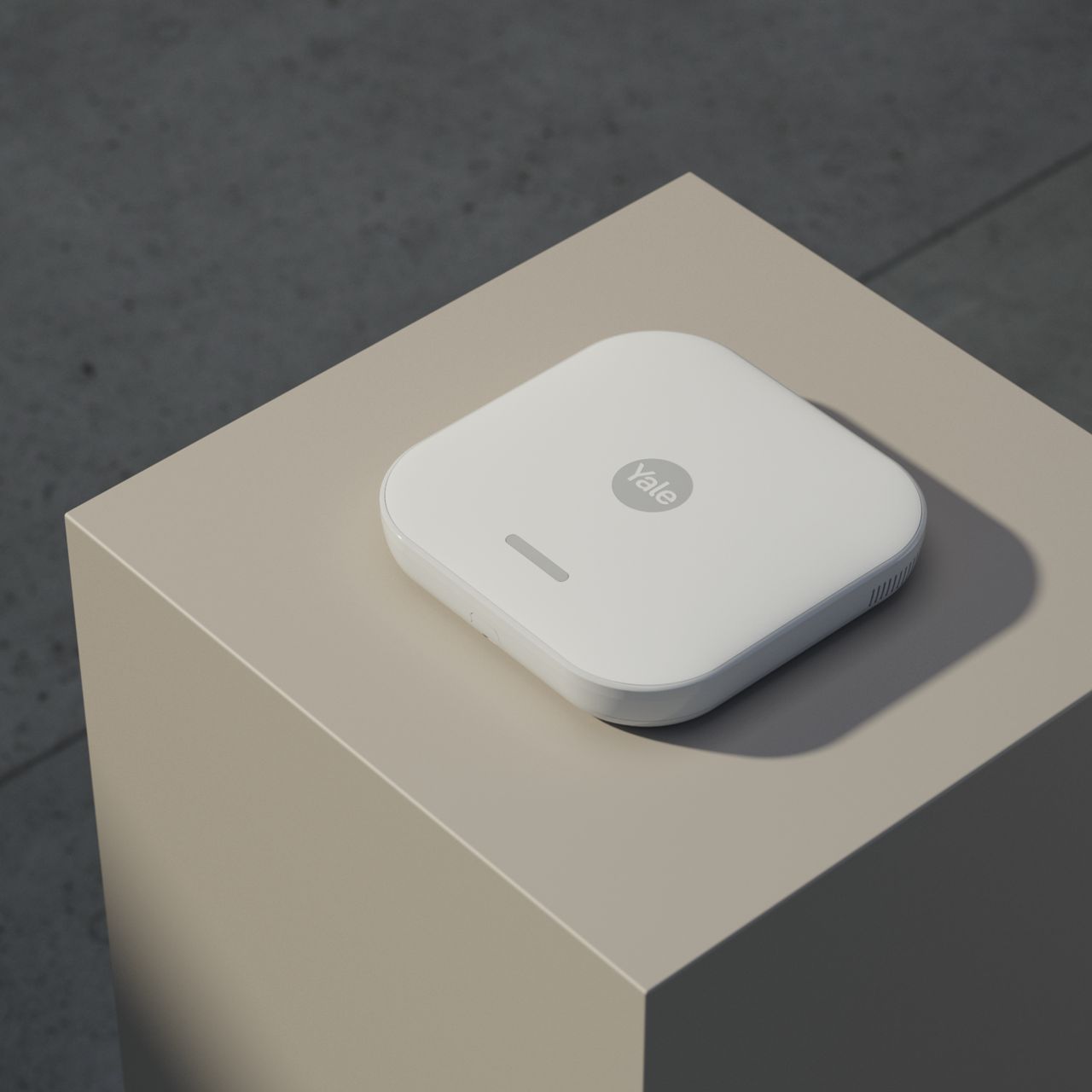

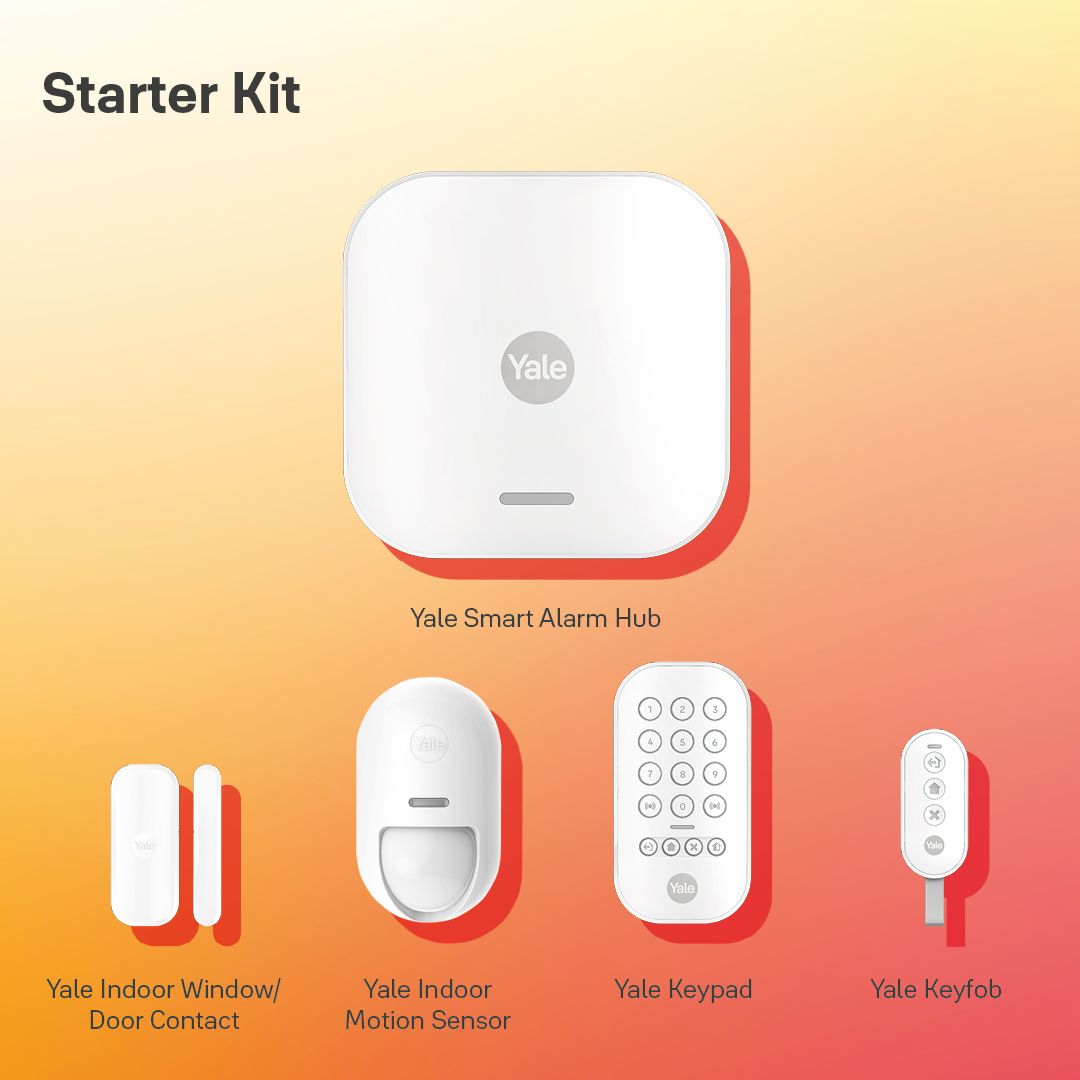

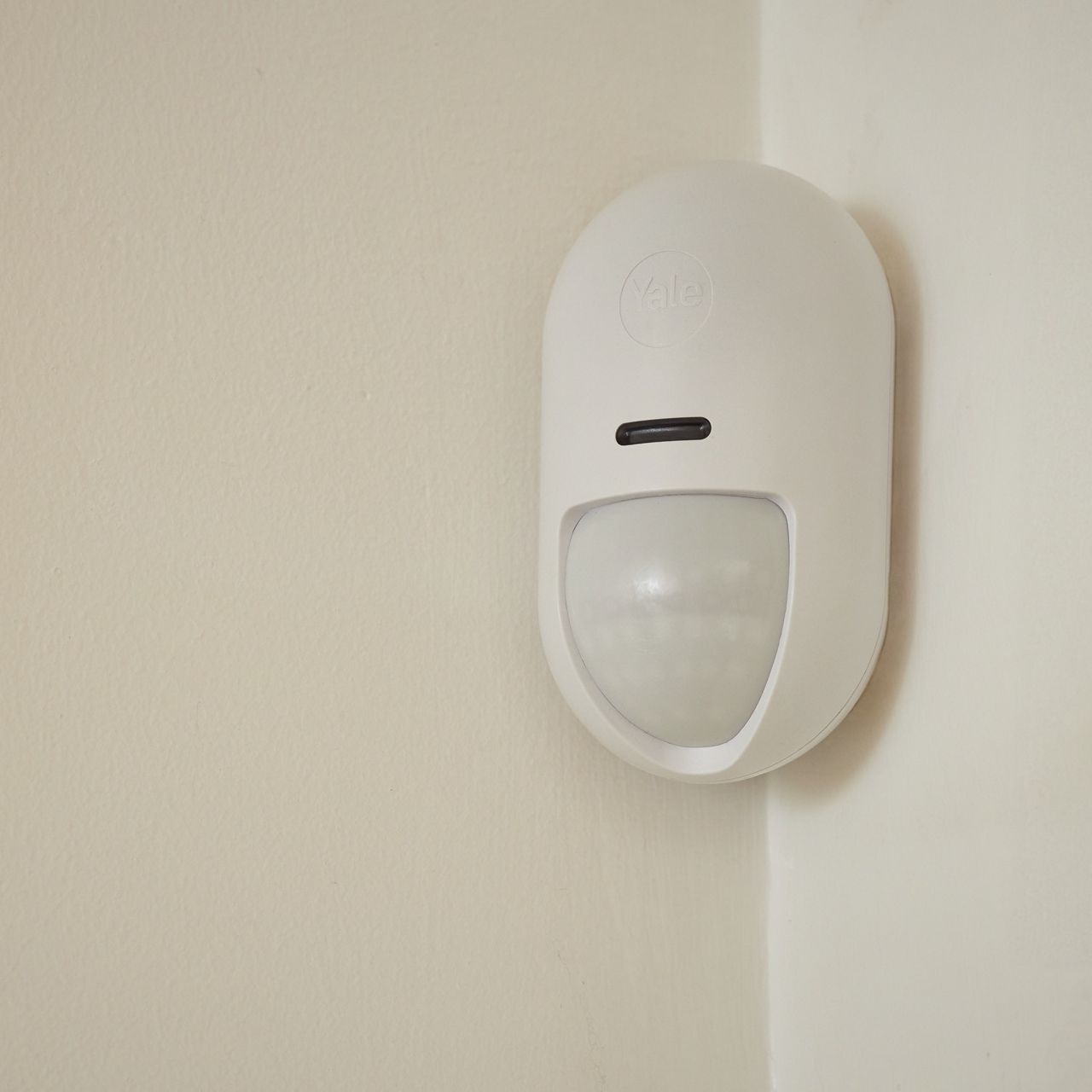

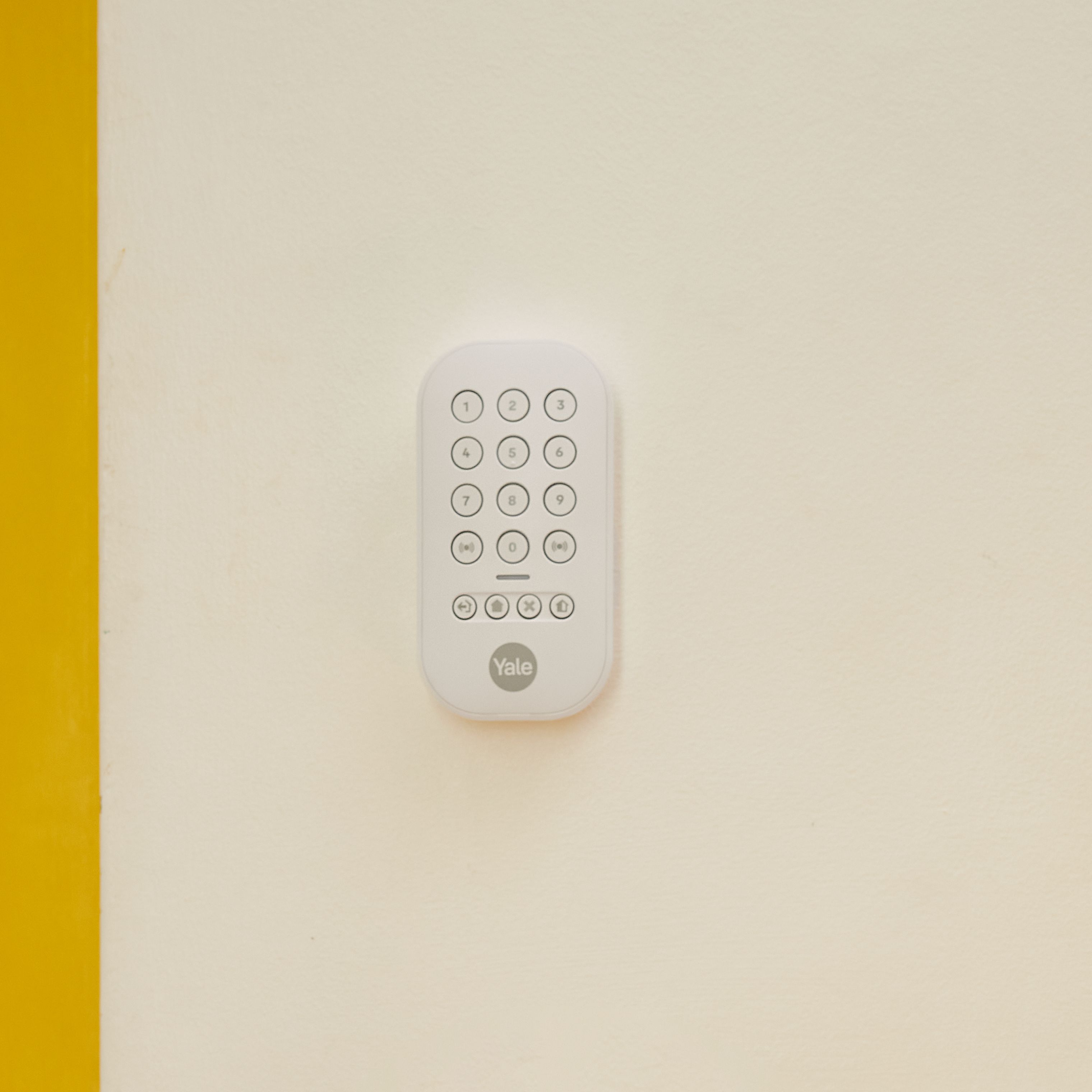

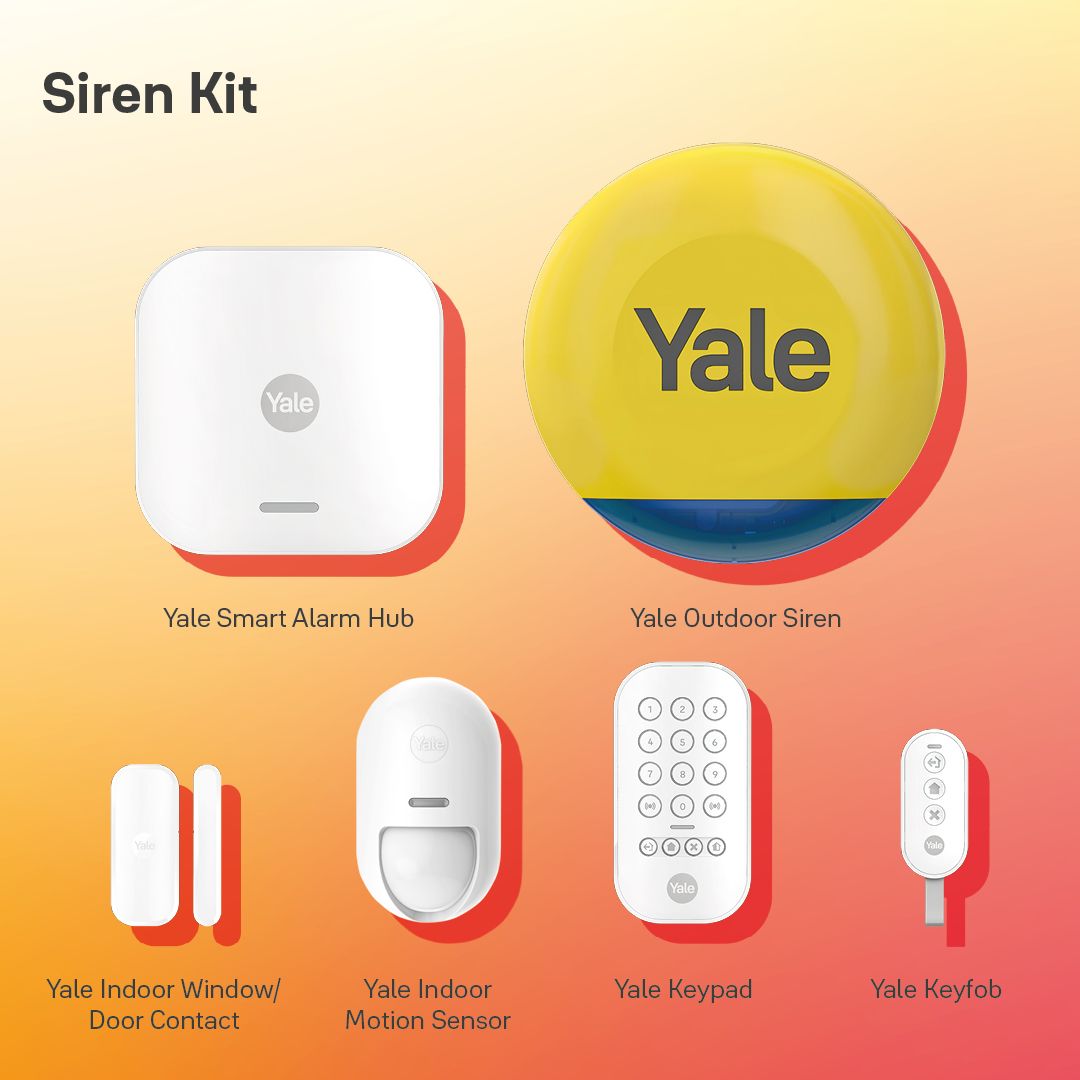

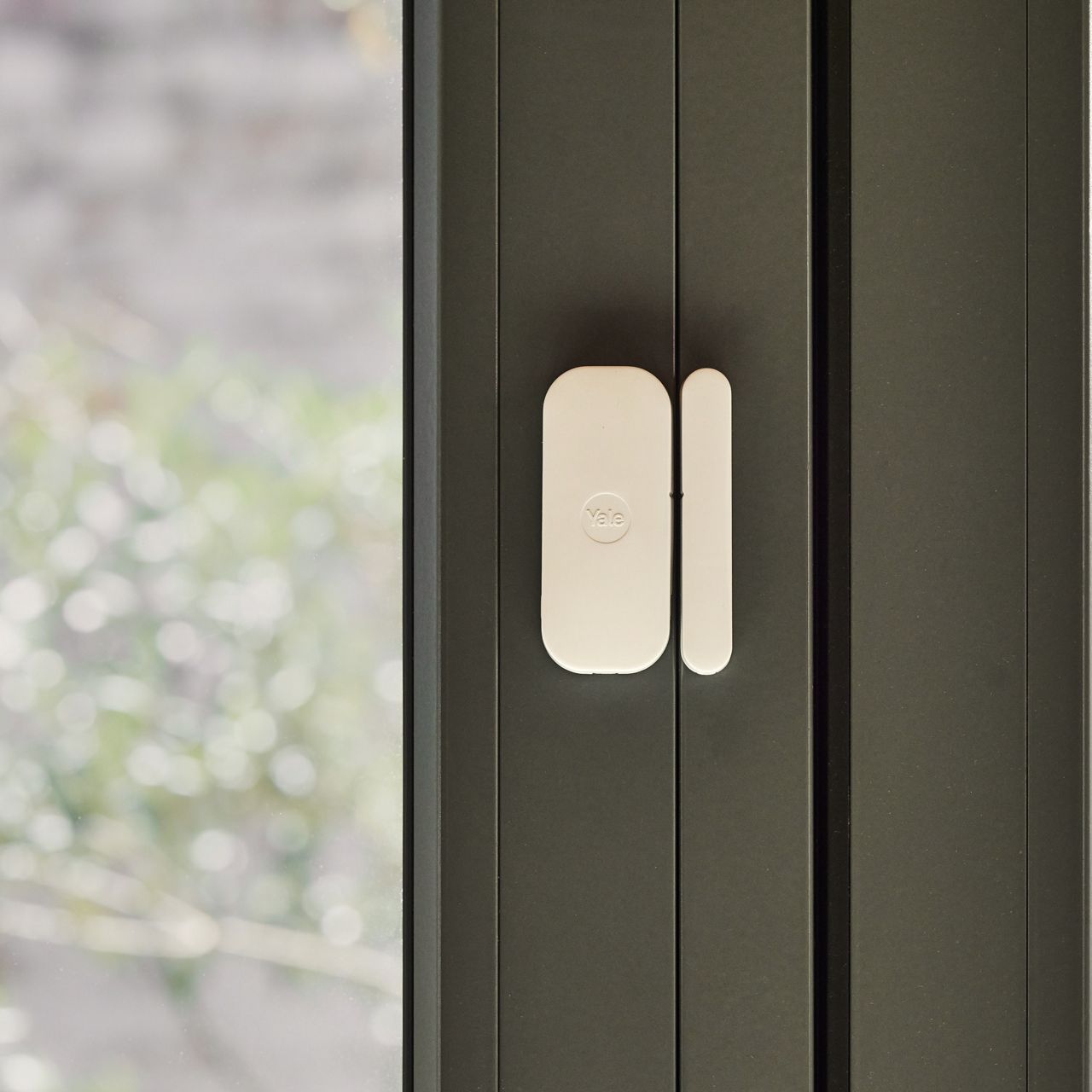

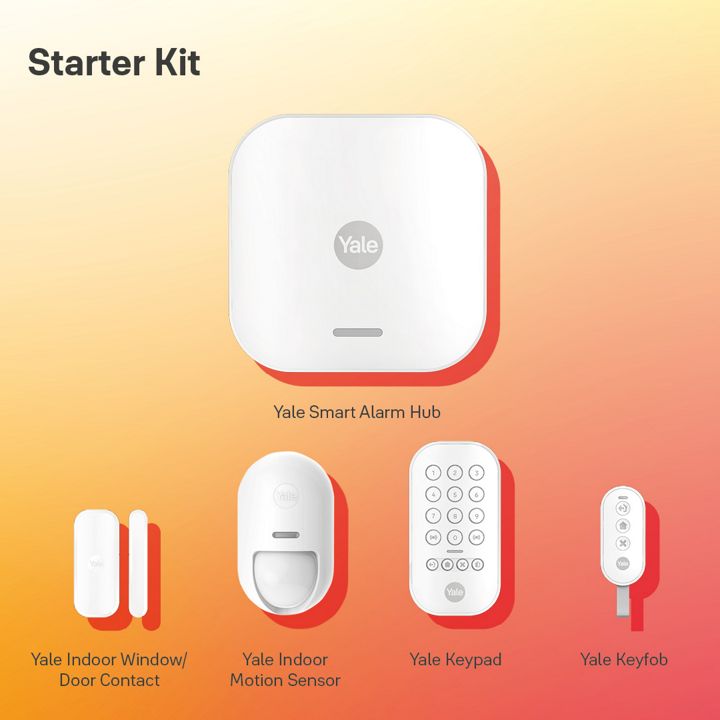

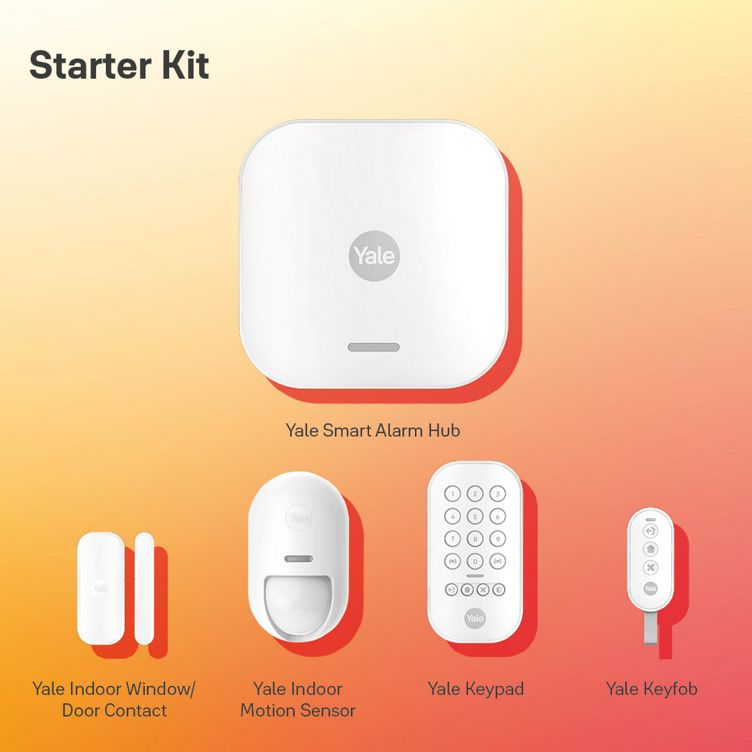

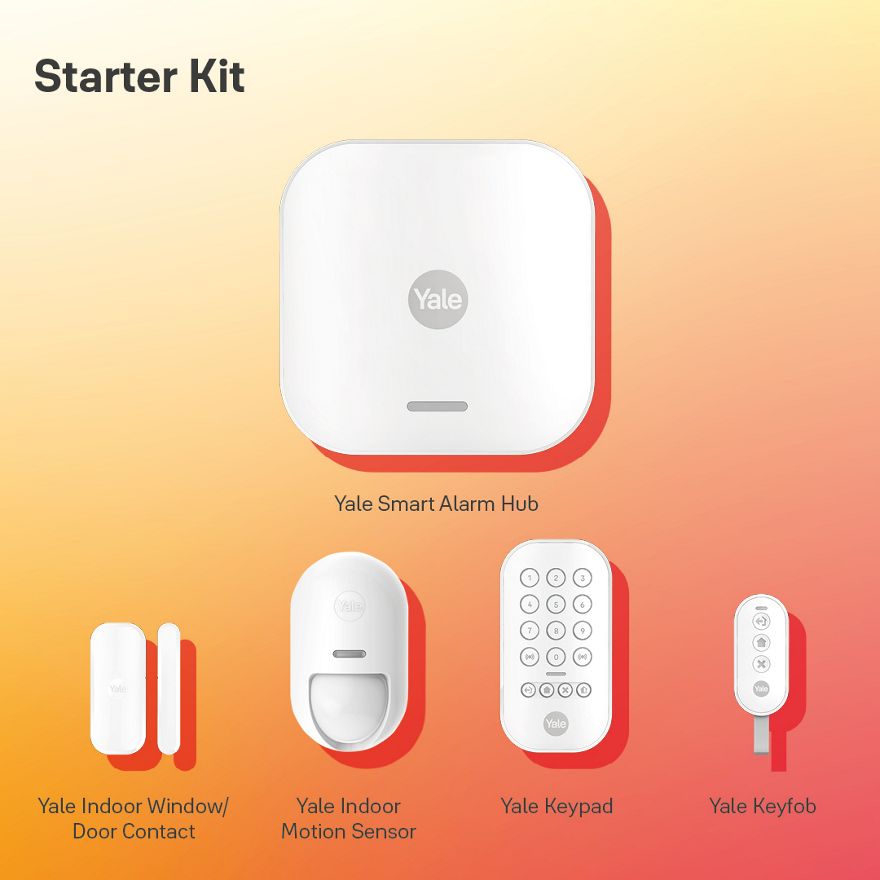

| In the box | 1 x Yale Smart Alarm Hub | 1 x Yale Indoor Window/Door Contact | 1 x Yale Indoor Motion Sensor | 1 x Yale Keypad | 1 x Yale Keyfob | 1 x Yale Outdoor Siren |

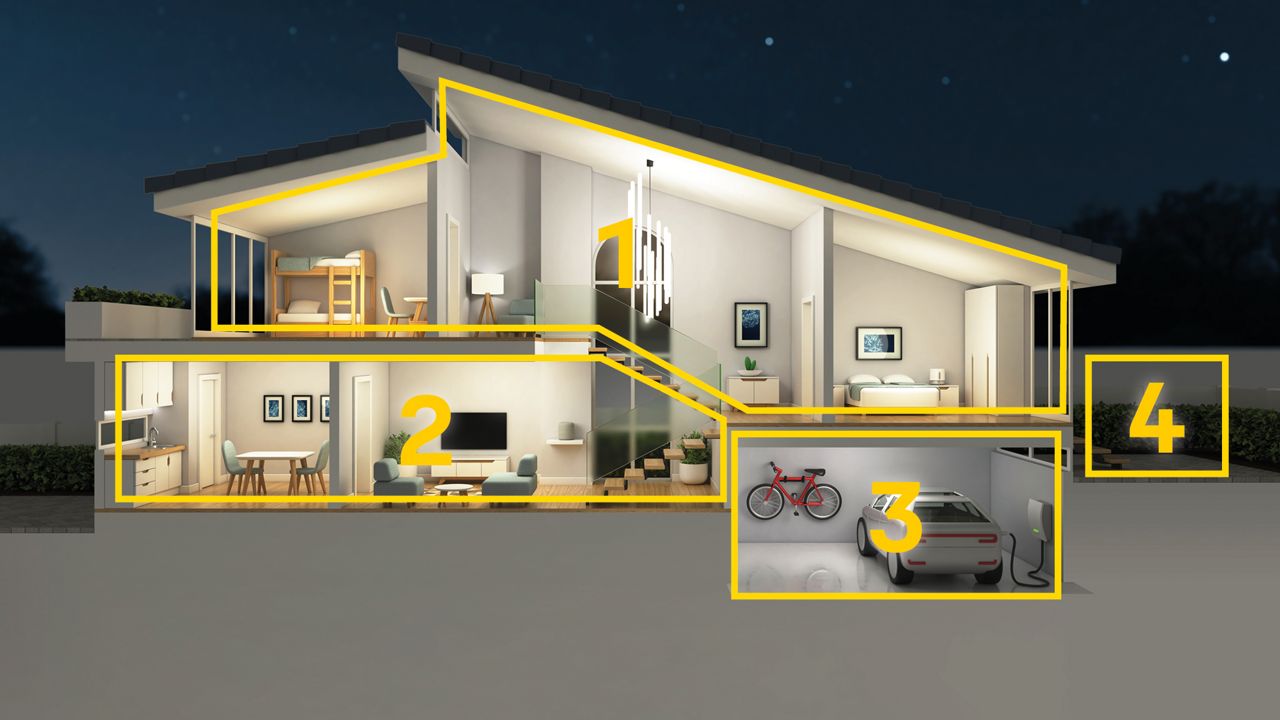

| Device features | - Up to 4 security areas
- Connect up to 100 alarm devices
- 100db siren and speaker
| - Detects open/closing of window/door
| - Selectable pet immunity
- Selectable sensitivity
- 12m detection range
| - Fully-arm (Away arming), disarm or part-arm (Home arming)
- Area selection
- Panic function
- Automatic backlight lights up when approaching keypad
| - Fully-arm (Away arming), disarm or part-arm (Home arming)
- Keylock (to prevent keys being accidentally pressed)
- Panic function
- LED feedback
| - ·100db Siren
- Backlight – Yale Logo lights up during the night (Requires 12x PSU, not included)
- Comfort LED
- Strobe in alarm
- Hinged lid for easy installation
|

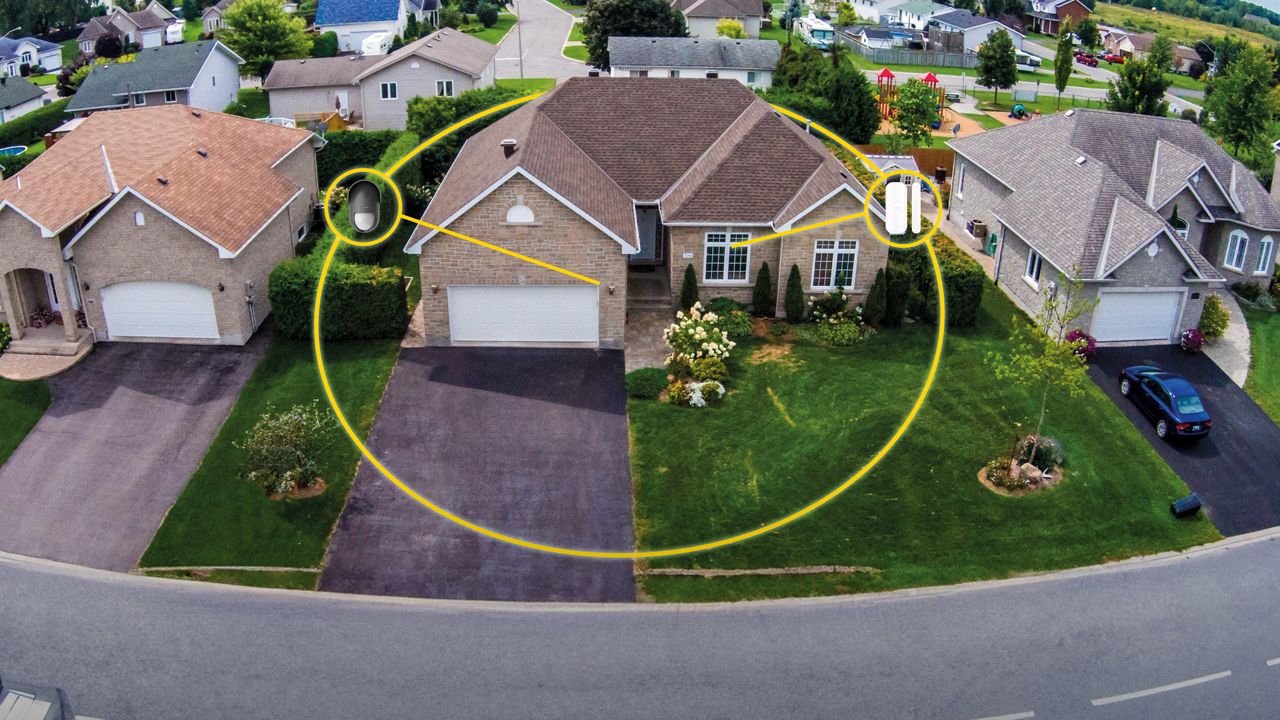

| Wireless range | Horizon+ Technology: 1km long range RF |
| Communication frequency between Yale Hub and alarm devices | Horizon+ Technology: 2-way RF on 868Mhz |
| Product dimensions (HxWxD) | 175mm x 175mm x 35.8mm | 68.5mm x 29mm x 9.52mm | 121.75mm x 71.75mm x 55mm | 122mm x 64mm x 22.49mm | 106mm x 36mm x 12mm | 255mm x 355mm x 58.04mm |
| Product weight | 410g | 35g | 110g | 115g | 30g | 1280g |
| Power solution | Power via AC Adapter (included) | 1x CR2450 lithium battery | 1x CR123A lithium battery | 1x CR123A lithium battery | 1x CR2450 lithium battery | 4 x D Cell Optional 12v adaptor (not included) |
| Battery life | Battery back-up: 12 hours (when the hub is connected via Ethernet cable) fully functional | 4 years | 3 years | 3 years | 3 years | 3 years |
| Mounting solution | Table or Wall mount (wall mounting plate and screws included) | Screws and 3M tape (included) | Screws and 3M tape (included) | Table or Wall mount (wall mounting plate included) | | Screws (included) |
| Model number | AL-ESTARTKIT3-1A-V1 |
| SKU number | AL-SK3-1A-EU |
