Getting Started with the Yale Digital Door Viewer Memory Plus 4500

• 4" LCD Display Screen x 1
• Camera/Doorbell x 1
• Fixtures & Fixings
• Batteries (4 x AAA)

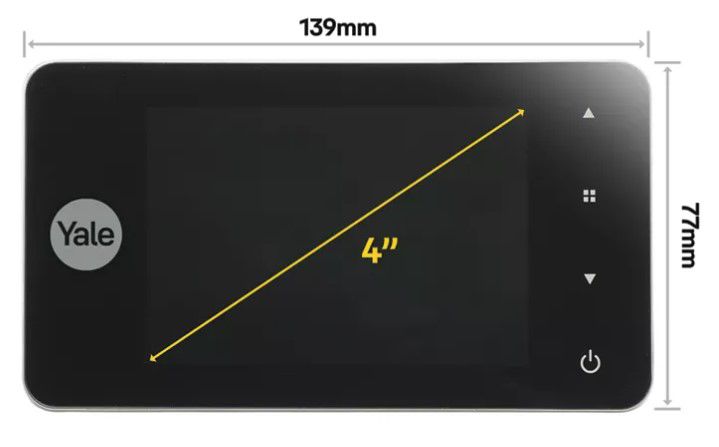

Viewer Size: 139 x 77 x 16mm

Screen Size: 4"

Weight: 310g

Key Features:

• Integrated 80dB Doorbell for clear visitor alerts.
• 4" LCD Screen for easy viewing and identification of visitors.
• Optional Internal Memory stores up to 50 time- and date-stamped still images.
• 0.3MP Built-in Camera captures clear images of visitors.
• Night Vision Function for visibility in low-light conditions.
• Weather-Resistant (IP56 Rated) for reliable outdoor performance.
• Easy Installation on doors with thickness between 38mm – 110mm.

• Fits standard 14mm hole from mechanical door viewer
• Size 139 x 77 x 16mm
• Weight 310g
• Door thickness 38-110mm
• 4" LCD screen
• 0.3 MP camera
• 105 degree viewing angle
• Infrared night view
• Internal memory stores 50 images
• Can be extended with external memory card
• 4 pcs. AAA batteries included

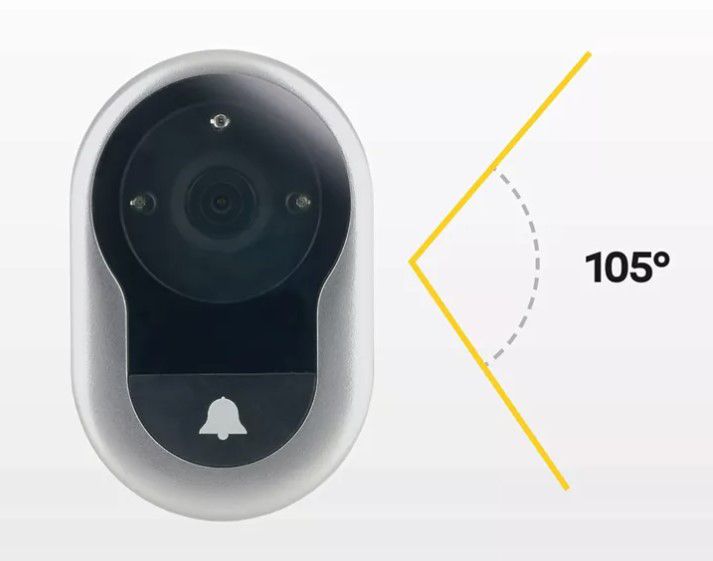

The Yale Digital Door Viewer Memory Plus 4500 has a viewing angle of 105 degrees.

This Door Viewer has a high-quality camera which includes infrared night vision LED's. This will ensure you can always see who is at your door, even at night.

This product focuses on delivering clear, real-time visuals through its built-in screen and alerting you to anyone at your door- via the 80dB integrated doorbell. While it doesn’t include audio features like a microphone or speaker, its streamlined design ensures a simple, secure, and distraction-free way to see and be alerted when someone is at your door.

This products internal memory can capture up to 50 still images of people who have called at your property whilst you are away from home. These are time and date stamped still images taken on the 0.3mp built-in camera. The image is taken when the doorbell push is pressed. You can also expand the memory using an optional SD card (not included).

This product does not have the ability to record or store video clips.

Yes, this product features an integrated 80db doorbell feature. It is triggered via the built in push on the outside camera and sounds through the internal viewer screen.

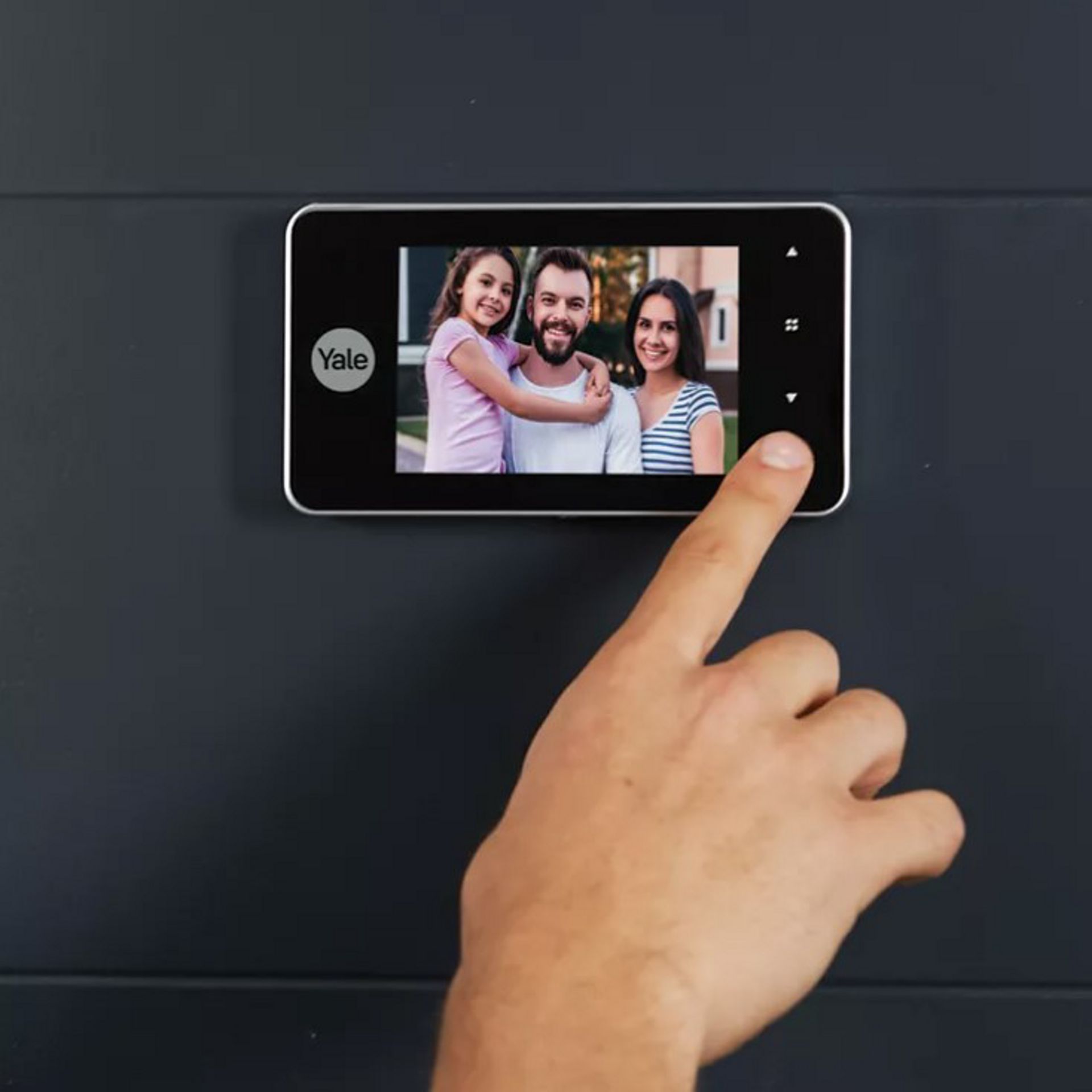

This product is designed for simplicity and reliability, offering live viewing directly on its built-in screen- no app required. This ensures instant access and peace of mind without the need for Wi-Fi or smartphone connectivity.

This product is built for straightforward, dependable use. With live viewing available directly on the built-in screen, there’s no need for Wi-Fi or app setup- just press the button and see who’s at your door instantly.

We recommend installing the the Doorviewer:

• At eye level
• Clear from obstructions on the door, for example a door knocker
• Flush against the door

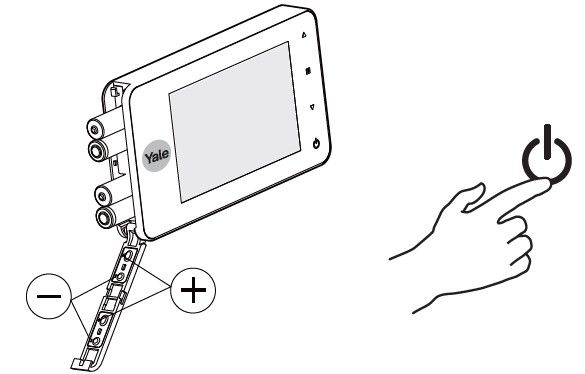

To power the Yale Digital Door Viewer Memory Plus 4500 on, simply insert the 4 x AAA batteries and then single press the on/off button.

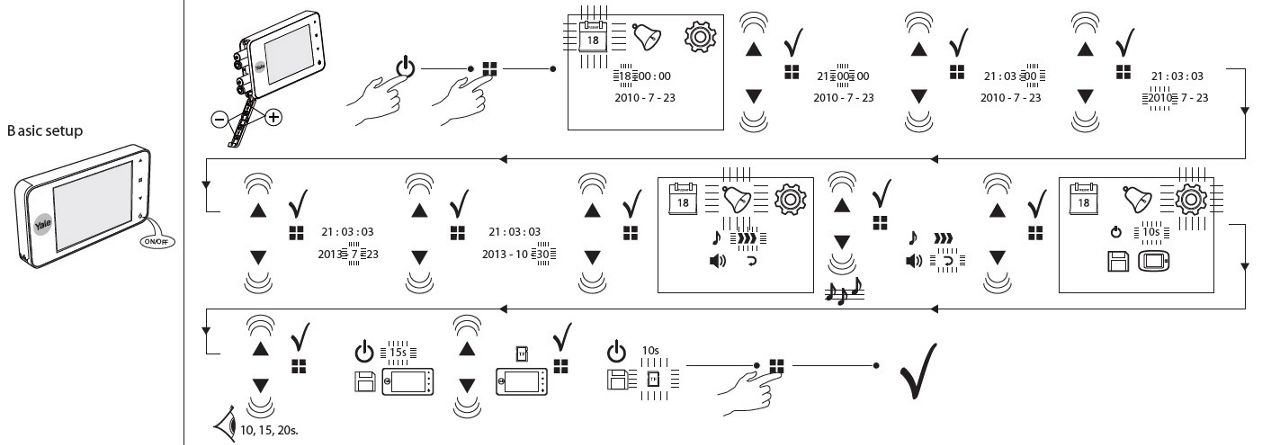

Step by step initial setup instructional images are included below:
