C-77EN4
Surface Mounted Heavy Duty Fire Rated Door Closer

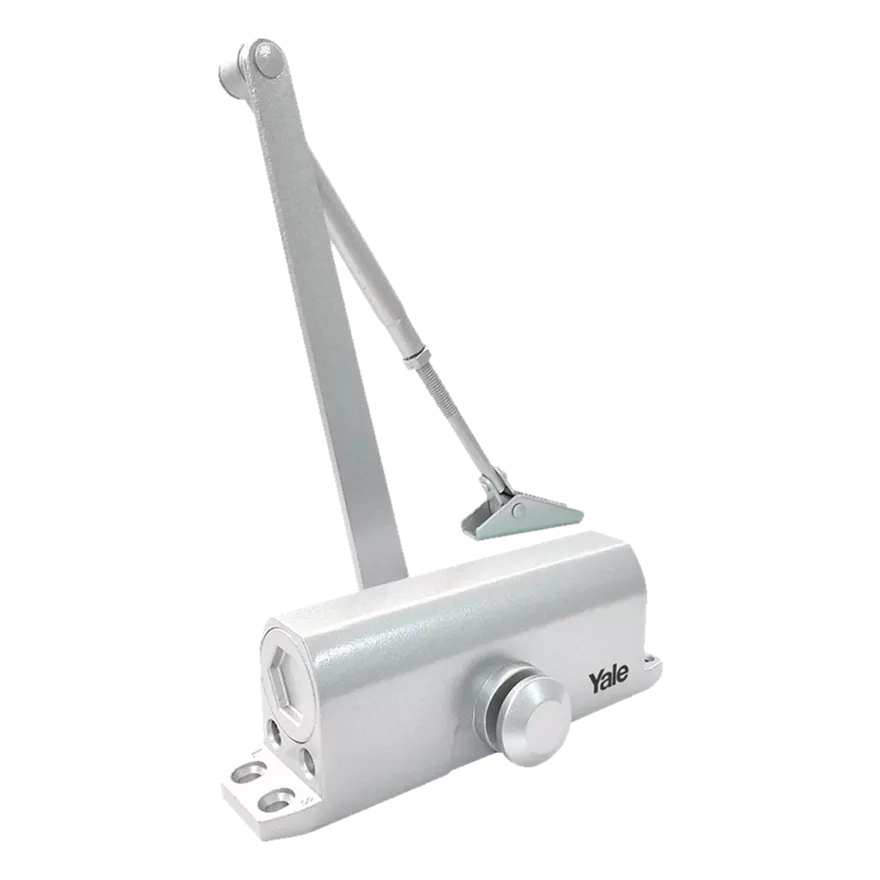

C-77EN2
Yale surface mounted door closer applicable for EN Size 2, manufactured as per the European standard 1154. Aluminium die cast body with standard arm. Suitable for Wooden and Aluminium frame doors. Non Handed door closer with adjustable closing and latching speed .
Model No.
EN2
Dimension:
182(L) x 53(W) x 60.5(H) mm
Max. Width of Door (mm)
850
Max. Weight of Door (kg)
40
Arm Type
12 Hold Open Arm
Torque Max
18 NM
Option Features
BC Backcheck
Finishing
SB Silver
Certification:
- UL Listed
- Conform to UL228 & UL10C
Passed Durability Test:
- 100,000 Cycles
- Easily Adjustable Arm Height
- Max Opening Angle 105°
- Reversible (Left / Right Hand Fixing)
Two Speed Valves:
- One to Control Closing Speed from 105° to 15°
- Second to Activate Final Latch from 15° to 0°
- Backcheck (BC): Optional
Classification Details
