Yale economic choice for standard residential purpose. Recomended for use on internal doors.
This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.
Remember my choice*
*Your choice will be saved in a cookie until you have closed your browser.

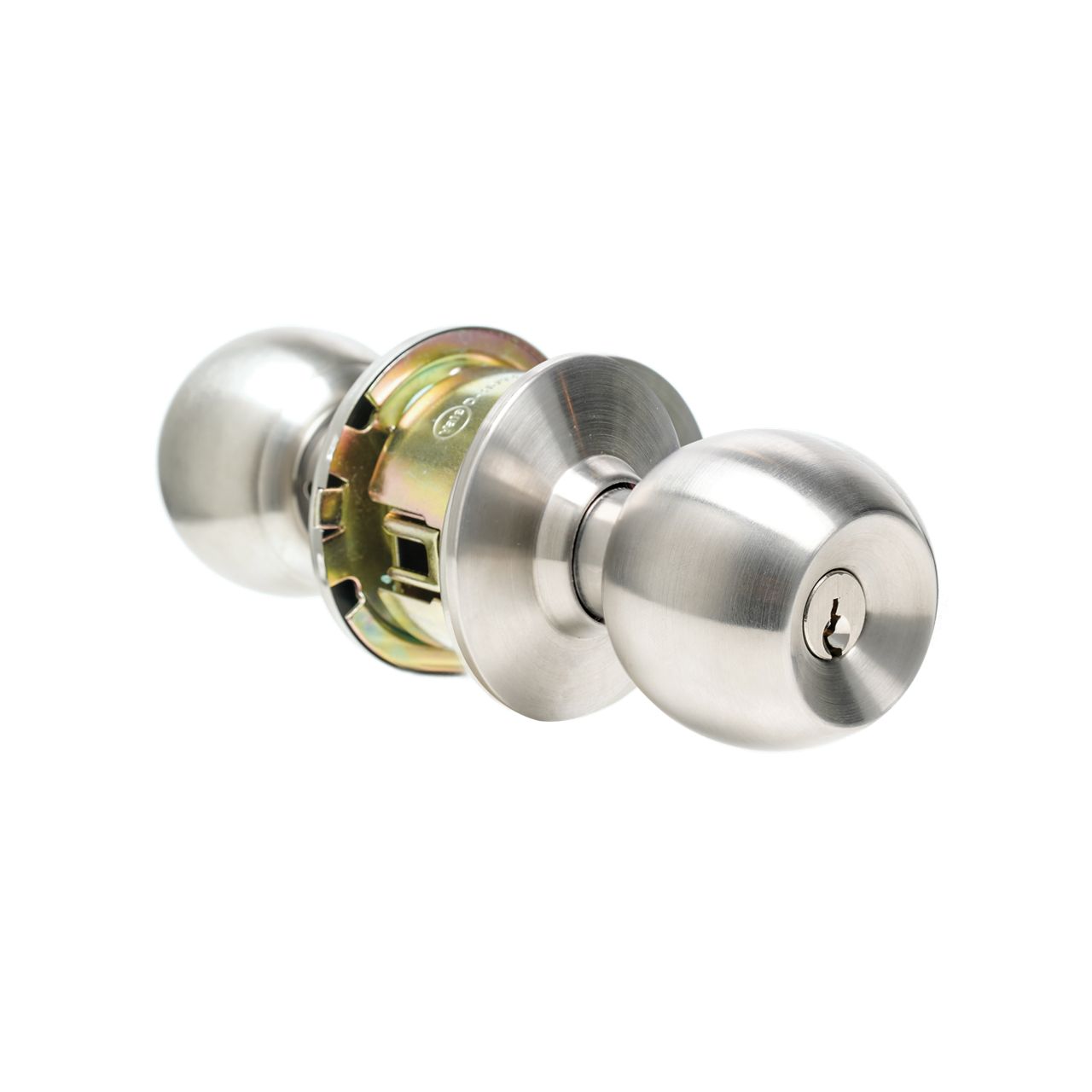

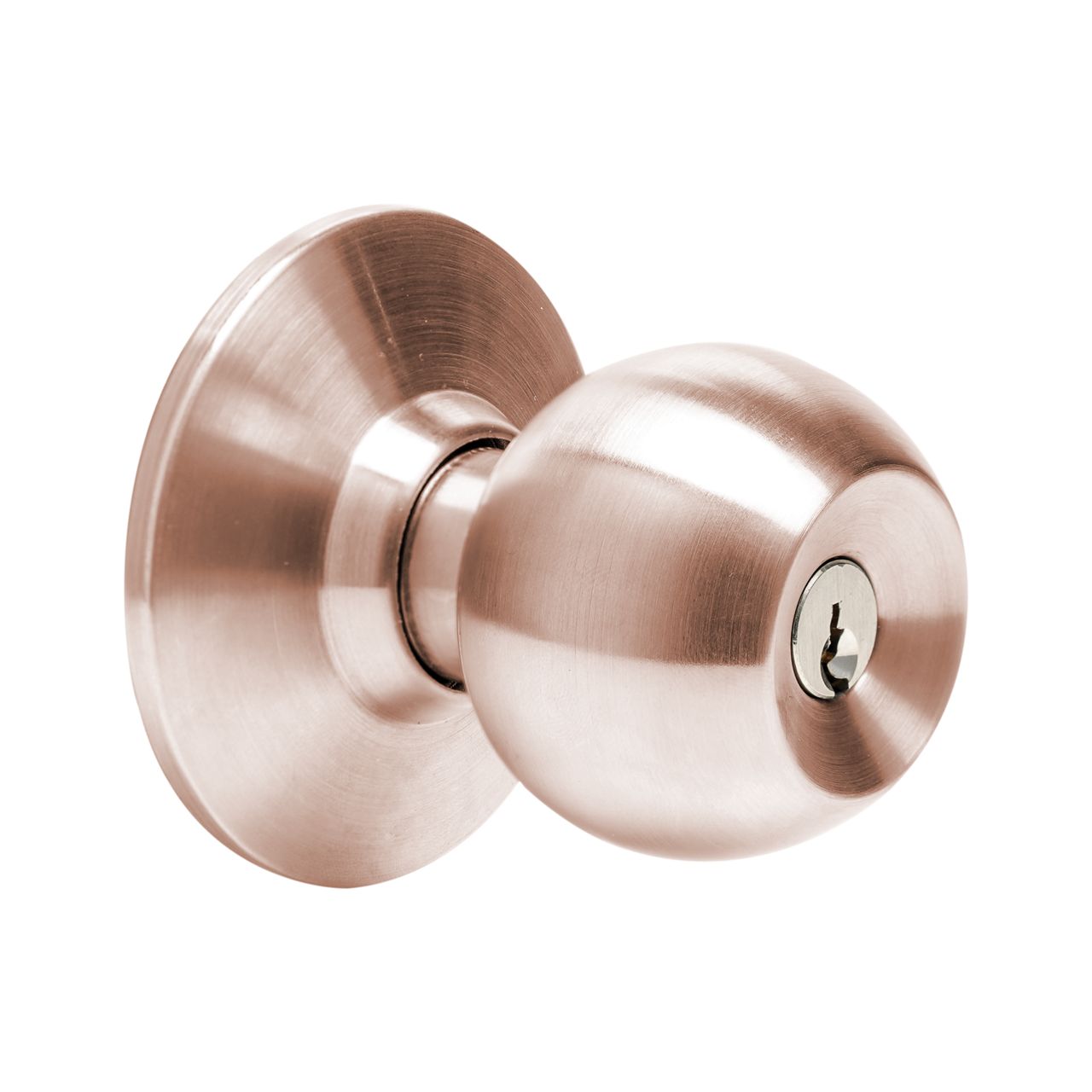

5120 Series Key-In-Knob
Knob Style
VCA
Model No.
512
Function
1 - Passage Or Closet
2 - Privacy, Bedroom or Bathroom
5 - Storeroom or Closet
7 - Entrance
Finish
US11 Antique Copper
US32D Satin Stainless Steel
Backset Code
B60 = 60mm
B70 = 70mm
Strike Code
S70 Strike Length = 70mm (Standard Offering)
Backset
60 / 70mm
Door Thickness
35 - 50mm
Standard
ANSI / BHMA A 156.2 2003
Testing Cycles
175,000 Cycles Tested Guaranteed
Material
- Chassis: Steel
- Latch and Bolt: Zinc
- Strike: Stainless Steel / Steel
- Knob: Stainless Steel / Brass
- Rose: Stainless Steel / Brass
Cylinder
Solid brass tumble cylinder plugs with zinc housing
No.of Pin
5 Pins
No. of Key
3 pcs of Nickel-Plated Brass Key
