YDM7220 BioSecure™

Model: YDM7220 BioSecure^™
Color: Black
Locking Type: Mortise
Backset: 60 / 70mm
Door Thickness: 45 - 57mm
Battery: Alkaline (AA x 4)

Product Dimension:

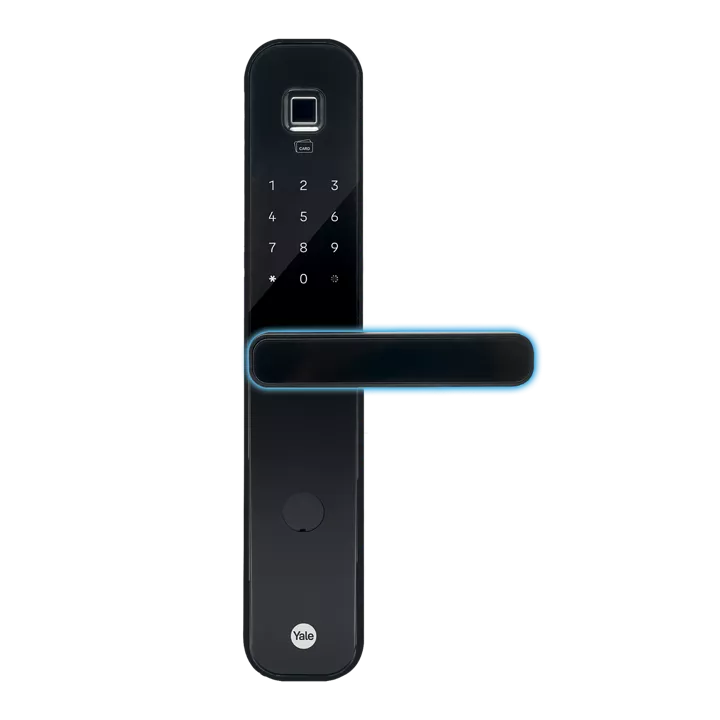

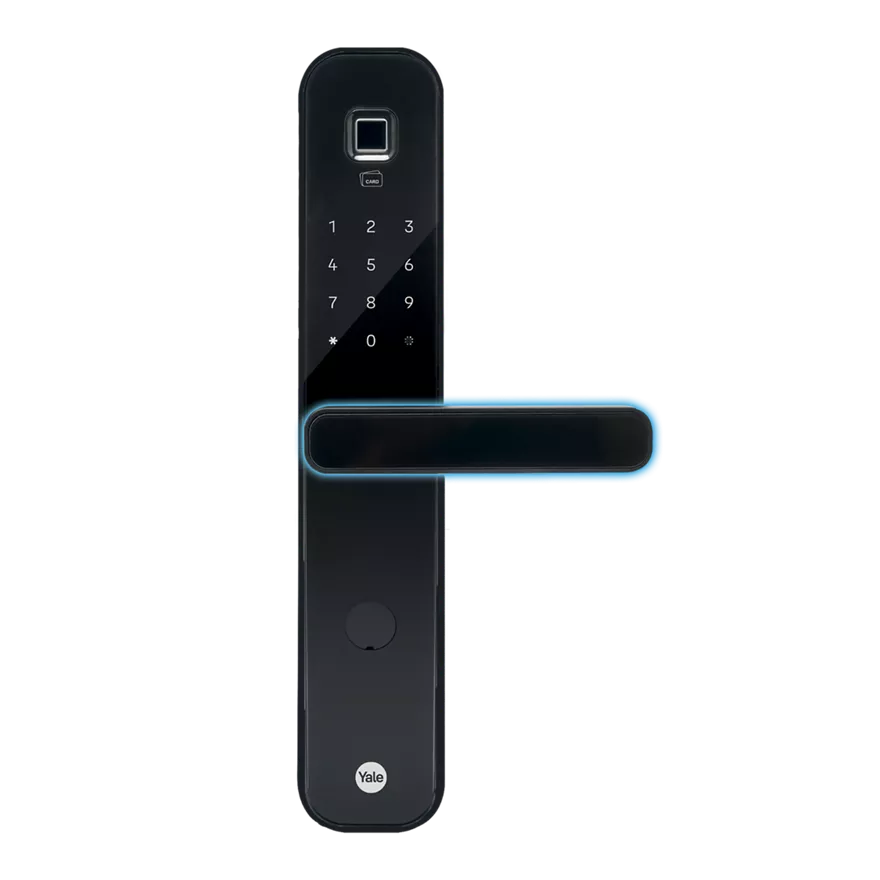

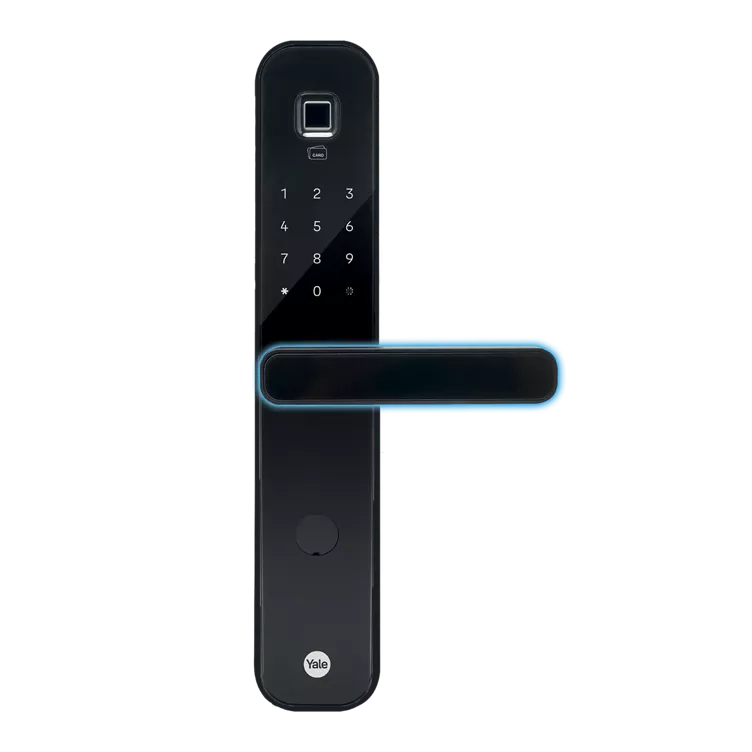

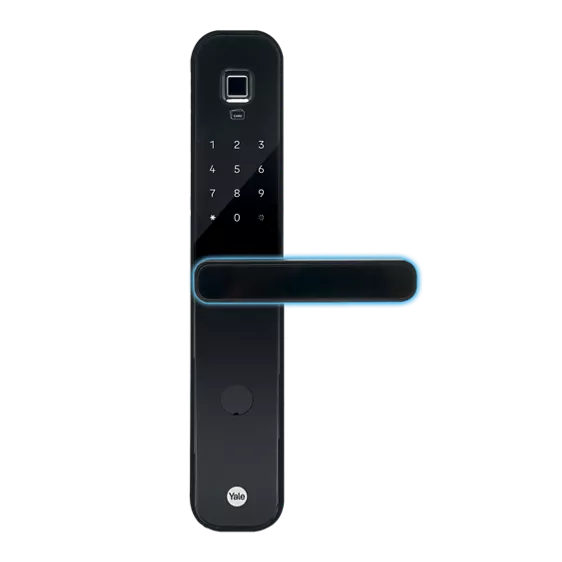

• Size (Front): 68(W) x 335(H) x 64.5(D) mm

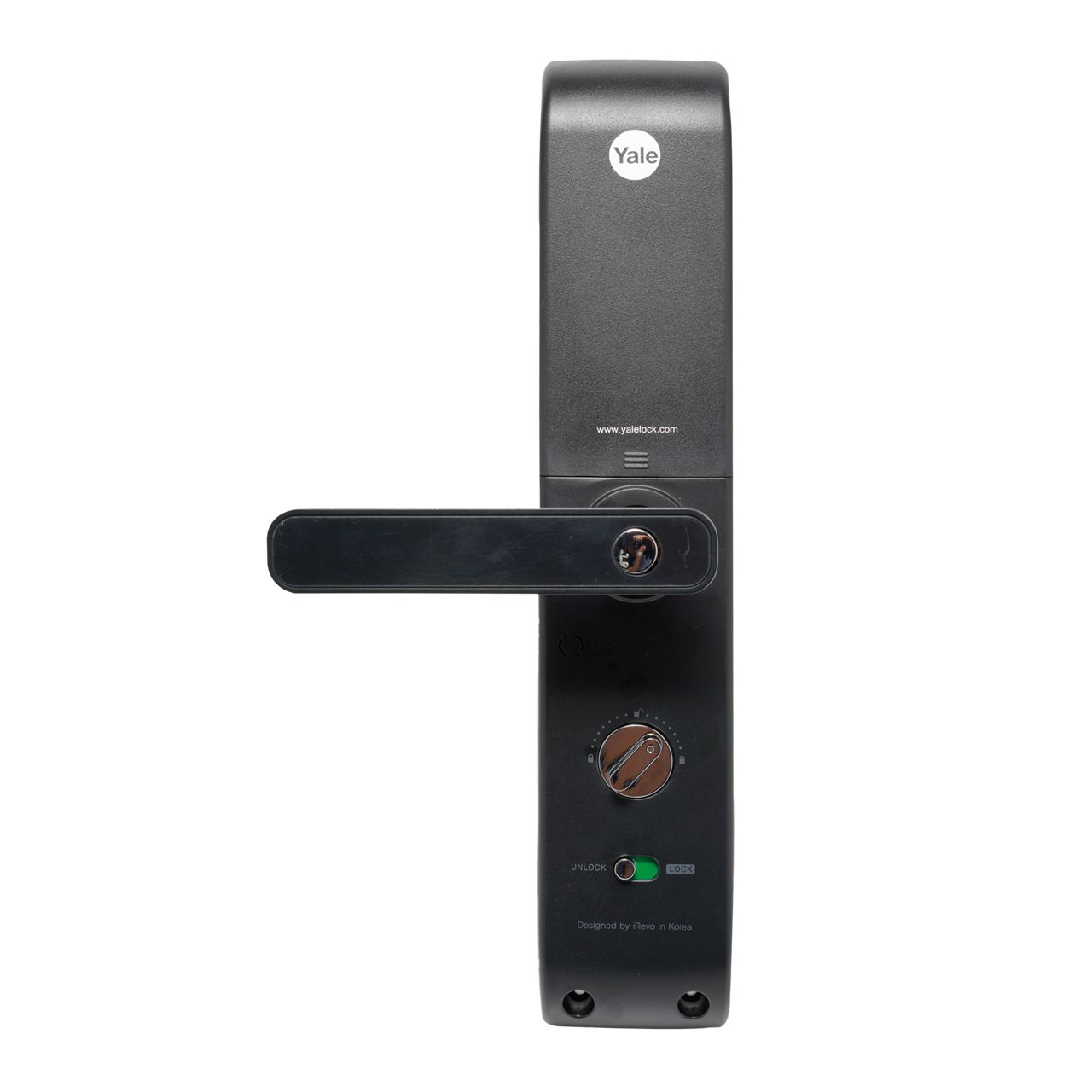

• Size (Back): 72(W) x 344(H) x 36(D) mm

Access Credential:

• Fingerprints: Available
• PIN Code: Available
• RFID Key Tag: Available
• Mechanical Key Override: Available
• Bluetooth: Available
• WiFi Connection: Available
• Remote Control: Available (Optional - Sold Separately)

Maximum No. of Users:

• Fingerprints: Up to 100 Users
• PIN Code: Up to 100 Users
• RFID Key Tag: Up to 100 Users
• Mechanical Key Override: 2 Keys
• One Time Code: 1 Only
