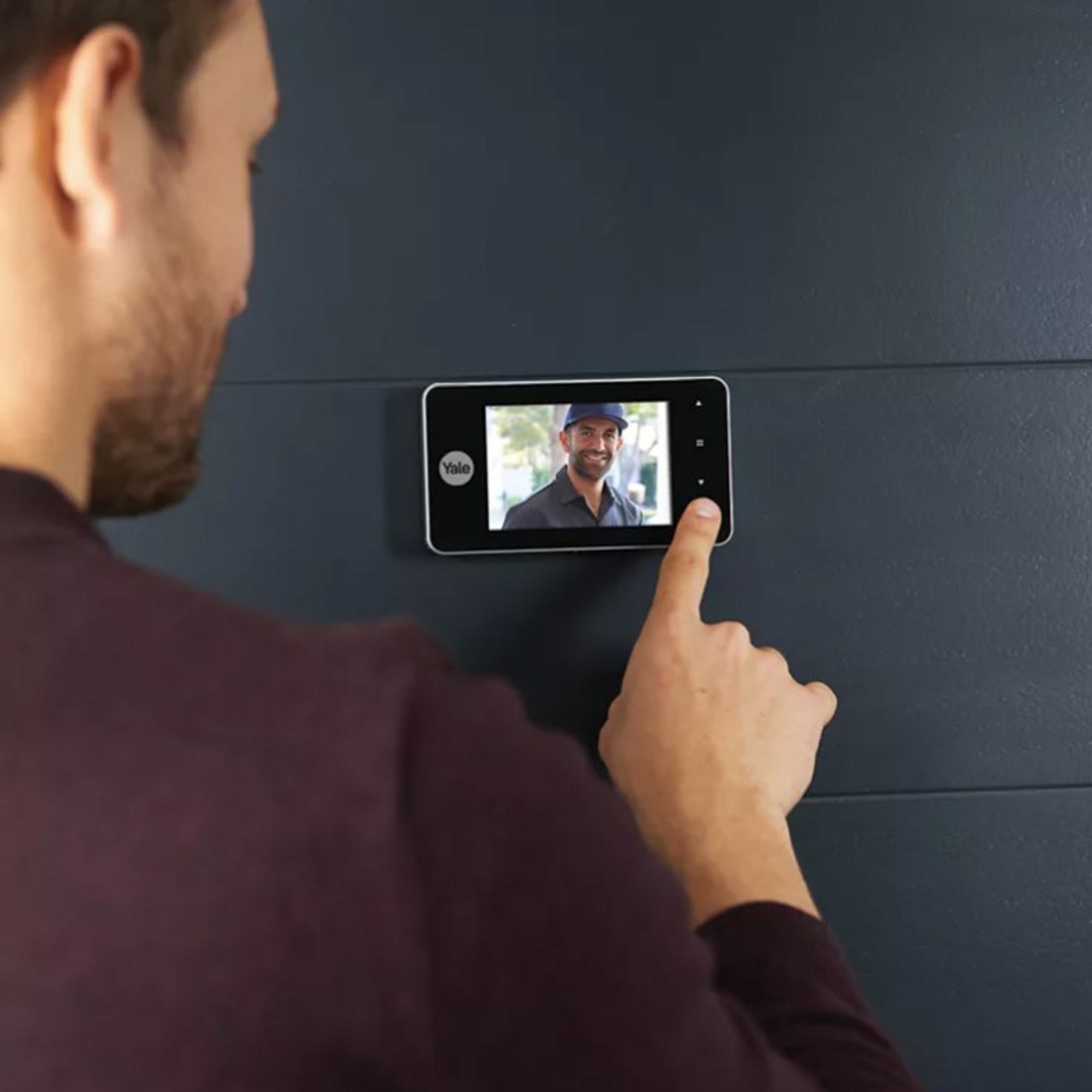

Yale Digital Door Viewer Memory Plus 4500

• 4" LCD Display Screen x 1
• Camera/Doorbell x 1
• Fixtures & Fixings
• Batteries (4 x AAA)

• Integrated 80dB Doorbell for clear visitor alerts.
• 4" LCD Screen for easy viewing and identification of visitors.
• Optional Internal Memory stores up to 50 time- and date-stamped still images.
• 0.3MP Built-in Camera captures clear images of visitors.
• Night Vision Function for visibility in low-light conditions.
• Weather-Resistant (IP56 Rated) for reliable outdoor performance.
• Easy Installation on doors with thickness between 38mm – 110mm.

• Fits standard 14mm hole from mechanical door viewer
• Size 139 x 77 x 16mm
• Weight 310g
• Door thickness 38-110mm
• 4" LCD screen
• 0.3 MP camera
• 105 degree viewing angle
• Infrared night view
• Internal memory stores 50 images
• Can be extended with external memory card
• 4 pcs. AAA batteries included

We recommend installing the the Doorviewer:

• At eye level
• Clear from obstructions on the door, for example a door knocker
• Flush against the door

This products internal memory can capture up to 50 still images of people who have called at your property whilst you are away from home. These are time and date stamped still images taken on the 0.3mp built-in camera. The image is taken when the doorbell push is pressed. You can also expand the memory using an optional SD card (not included).

This product does not have the ability to record or store video clips.

This product does include infrared night vision. If however you are still struggling to make out images at night, you will need to consider options to increase the ambient light level, for example a low level security light.

If your Door Viewer is unresponsive, please check the following:

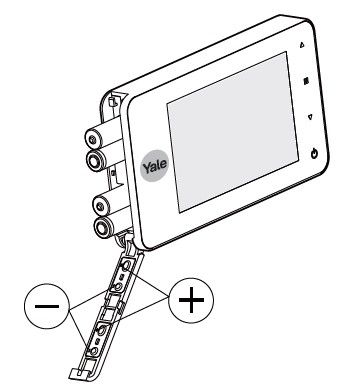

• Ensure that the batteries are inserted the correct way, following the polarity in the diagram below.
• Try changing the batteries for a fresh set of quality alkaline batteries.

In this case, please follow the process below to troubleshoot:

• Carefully remove the viewer from the mount. Be careful when pulling it away, as the cable will be connected.
• Firstly, inspect the cable that runs from the camera and into the viewer. Ensure that it has not be pinched, trapped or damaged.
• Next, ensure the cable connector is securely plugged into the viewer.

Once these checks have been done and you have fitted the viewer back in place, please try the viewer again.

In this case, please manually reboot the device by removing the batteries for a few seconds and then re-inserting them, as per the image below.

The Yale Digital Door Viewer Memory Plus 4500 is powered by 4 AAA batteries and designed for energy efficiency. Thanks to its automatic shut-off feature after 10 seconds of use, the device can typically last between 2 to 6 months, depending on how frequently it's used. If you are experiencing signficantly less than this, please check the points below.

• Avoid using rechargable batteries as these typically deliver a lower voltage (1.2V vs. 1.5V for alkaline), which will impact device performance and battery life. Additionally, they can be sensitive to cold temperatures, so if your device is installed in an unheated space like a shed or garage, winter conditions might affect reliability.
• Damage to the cable which runs from the camera and into the viewer could also impact battery life. Inspect this to ensure that it has not be pinched, trapped or damaged.
