Yale 8324U
Concealed door closer with Cam-Motion® technology and guide rail for single leaf doors, size 2-4
Features:
- Can be used for left- and right-handed doors
- Closing and latch speeds can be raised and lowered independently
- Backcheck functionality as standard protects frame and surrounding areas

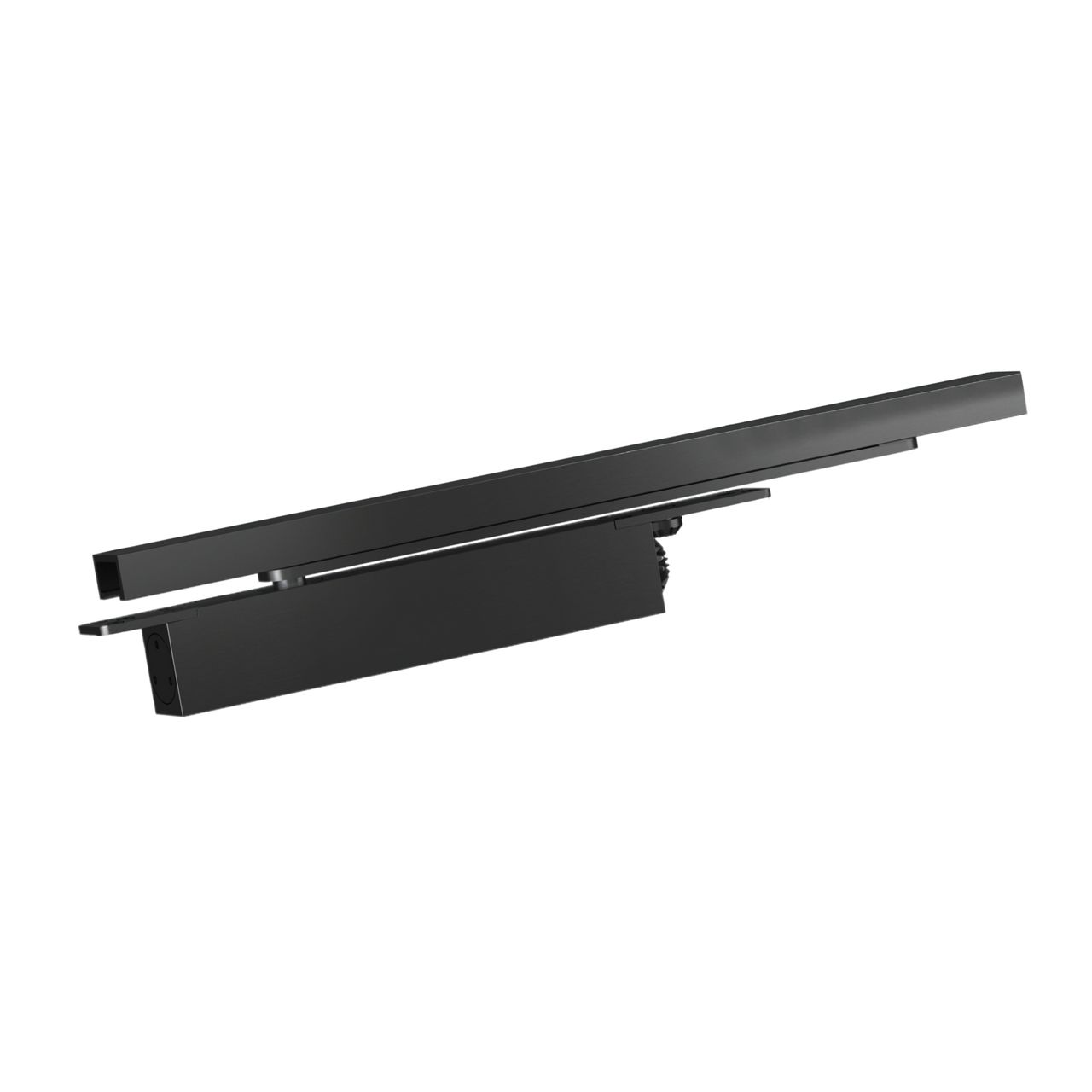

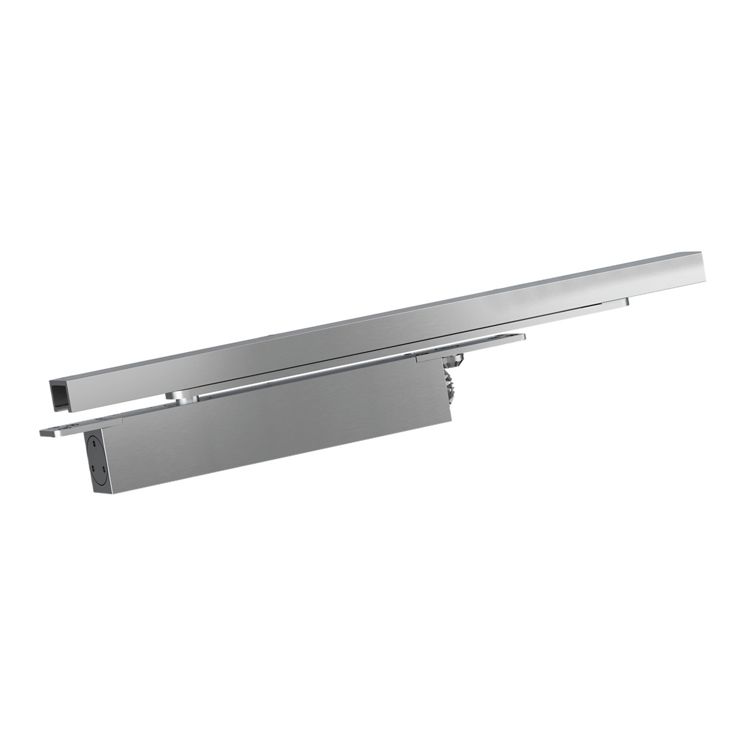

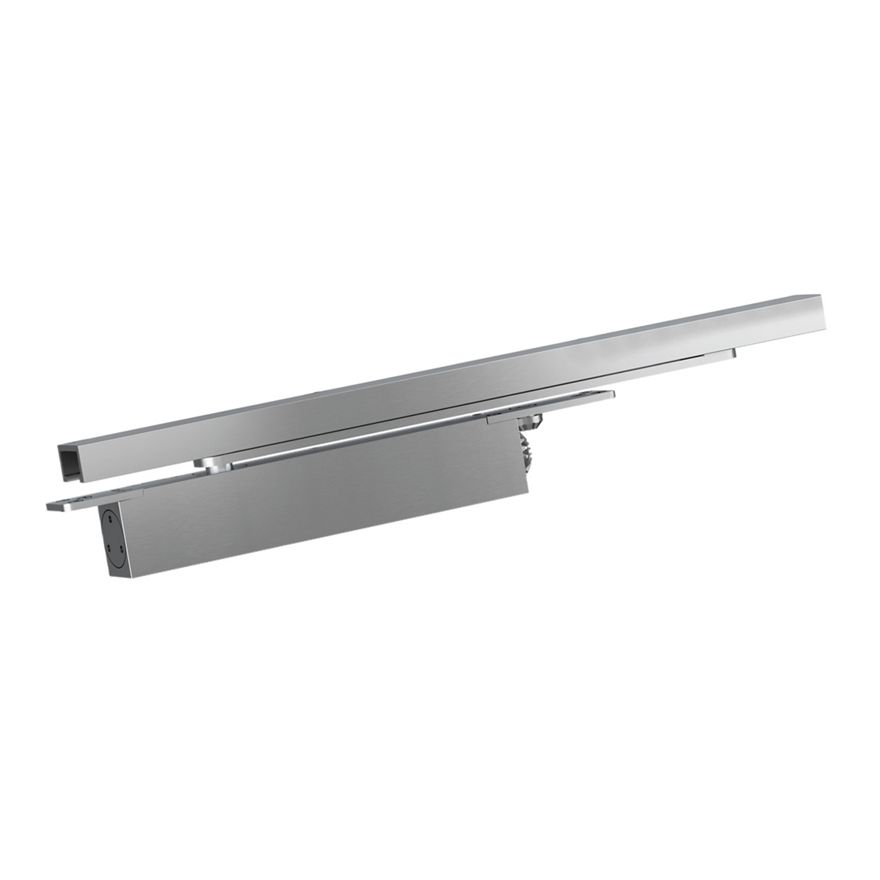

- Standard colours: Silver and Black
- 5 Years Warranty
- Cycle Tested - 5,00,000
USPs
- Slimline 33 mm wide profile, concealed Cam-Motion® door closer size 2-4
Contacts
Technical Details
| Details | Features |
| Type | Cam-Motion® |
| Spring Sizes | EN 2-4 |
| Arm Assembly Type | Slide Arm |
| Adjustments Facility | Closing and latch speeds can be raised and lowered independently |
| Area of Application | Wooden or Metal Doors |
| Back Check | Yes |
| Hold Open | Yes (Comes with Hold Open Device) |
| Standards | EN 1154 |
| Suitable for door width | 850 - 1100 mm |
| Cycle Tested | 500000 |
| Finishes | Silver, Black |
