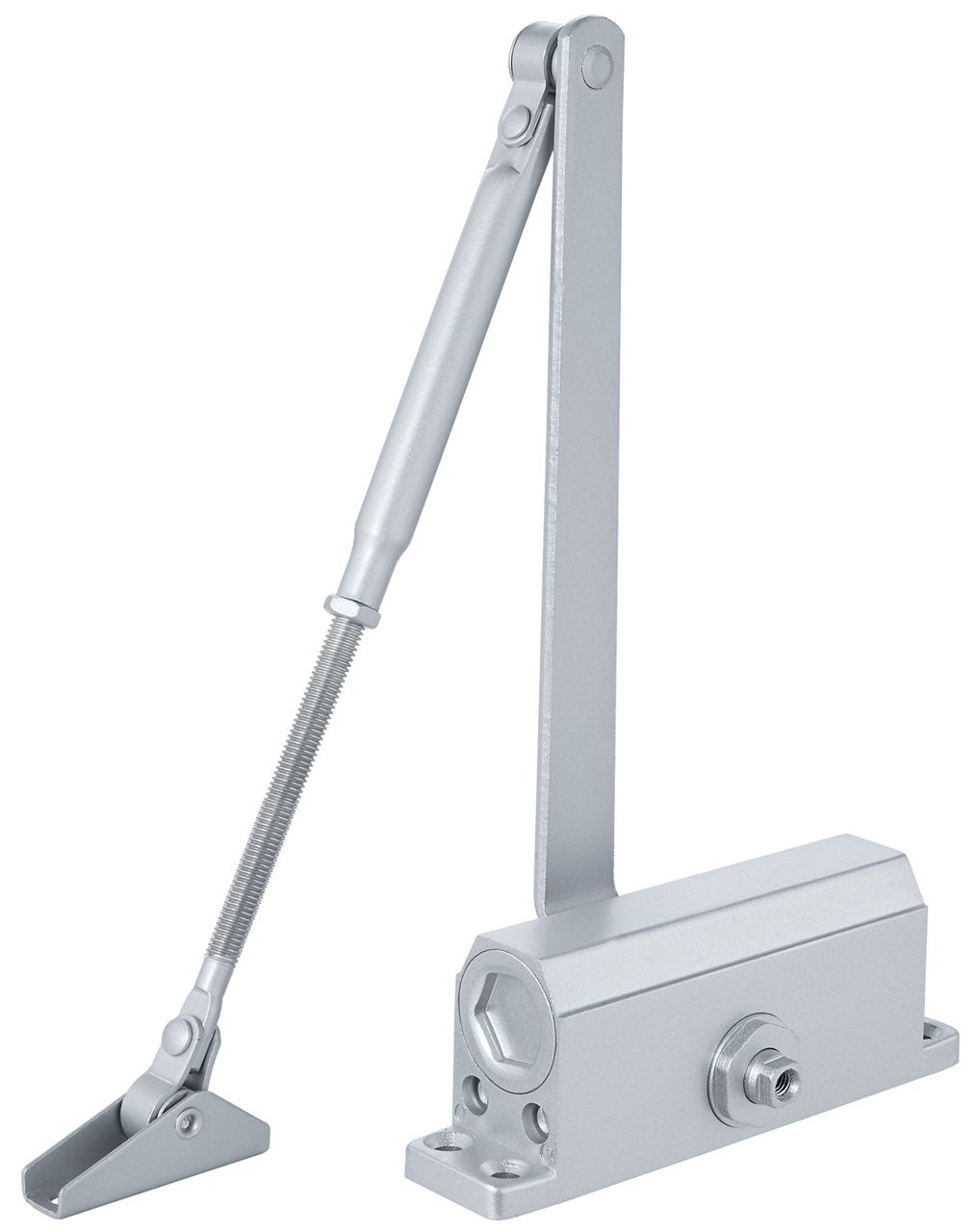

DCR 502
Door Closer EN Size 2, Standard Arm (Surface Mounted) (No Hold Open)
Product Description
Yale surface mounted door closer applicable for EN Size 2, manufactured as per the European standard 1154. Aluminium die cast body with standard arm. Suitable for Wooden and Aluminium frame doors. Non Handed door closer with adjustable closing and latching speed .
Technical Specifications
- Suitable for din left and Grade 2 din right handed doors
- Conforms to EN 1154
- 3 Year Warranty
- 5,00,000 Cycle Tested
- Grade 2
| Details | Features |
| Type | R & P |
| Spring Sizes | EN 2 |
| Arm Assembly Type (Standard / Slide Channel Arm / Hold Open Type) | Std. Arm |
| Adjustments Facility | ✓ |
| Area of Application | Wooden or Metal Doors |
| Back Check | ✖ |
| Hold Open / Slide Arm / Parallel Arm | ✖ |
| Standards | EN 1154 |
| CE Marked | ✖ |
| Suitable for door width | 750 - 850 mm |
| Suitable for door weights | 45 kgs |
| Cycle Tested | 500000 |
| Finishes | Silver |
