Yale

R601-DBTT

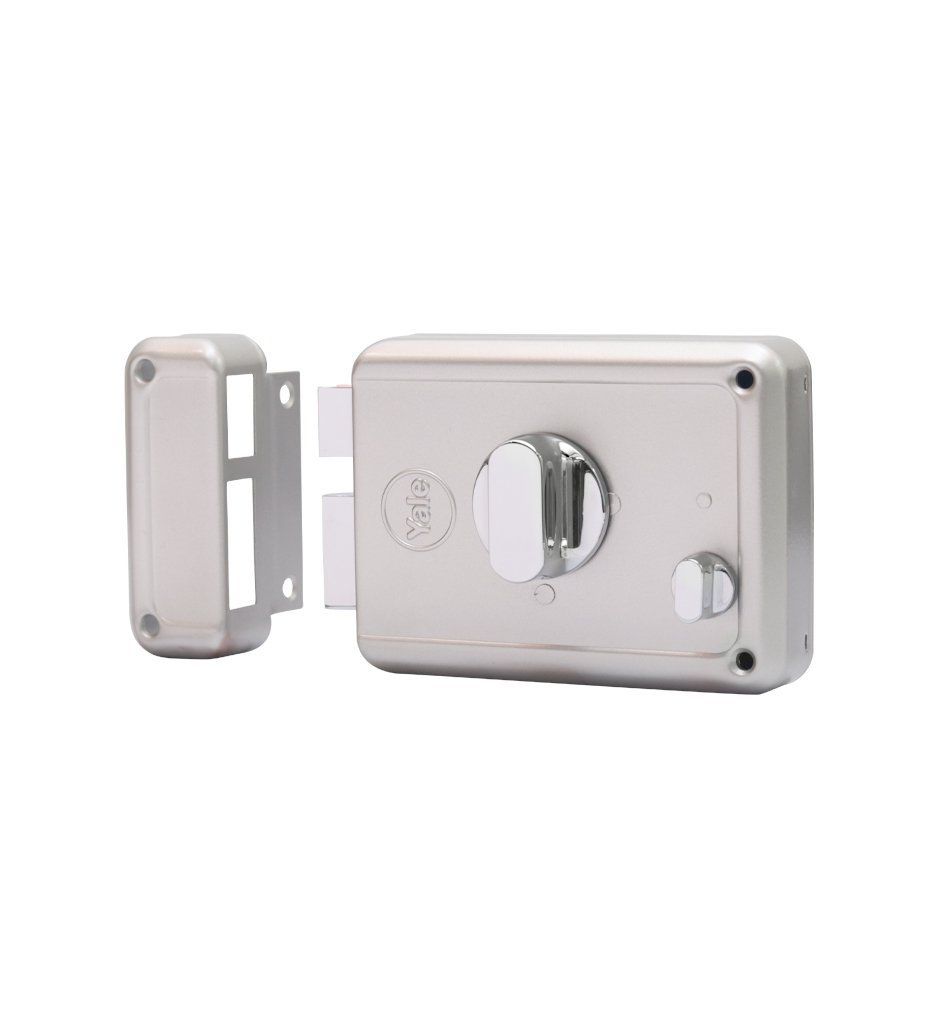

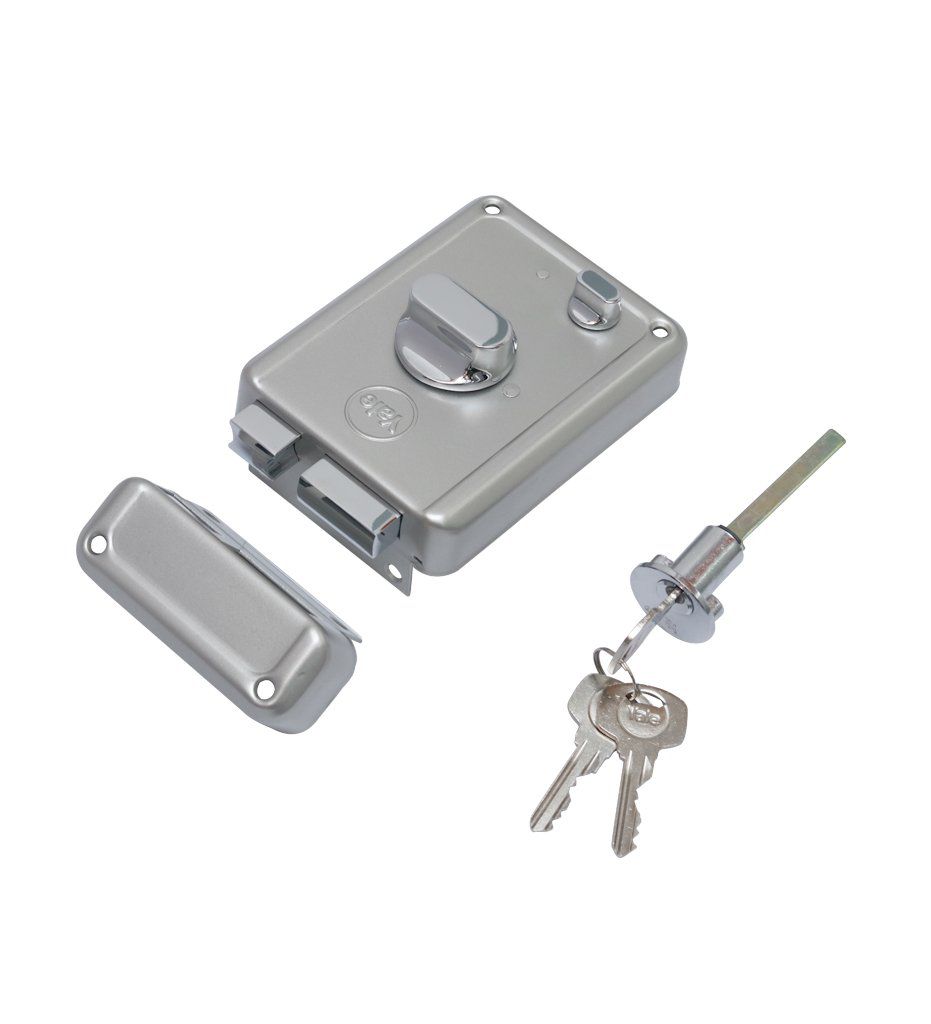

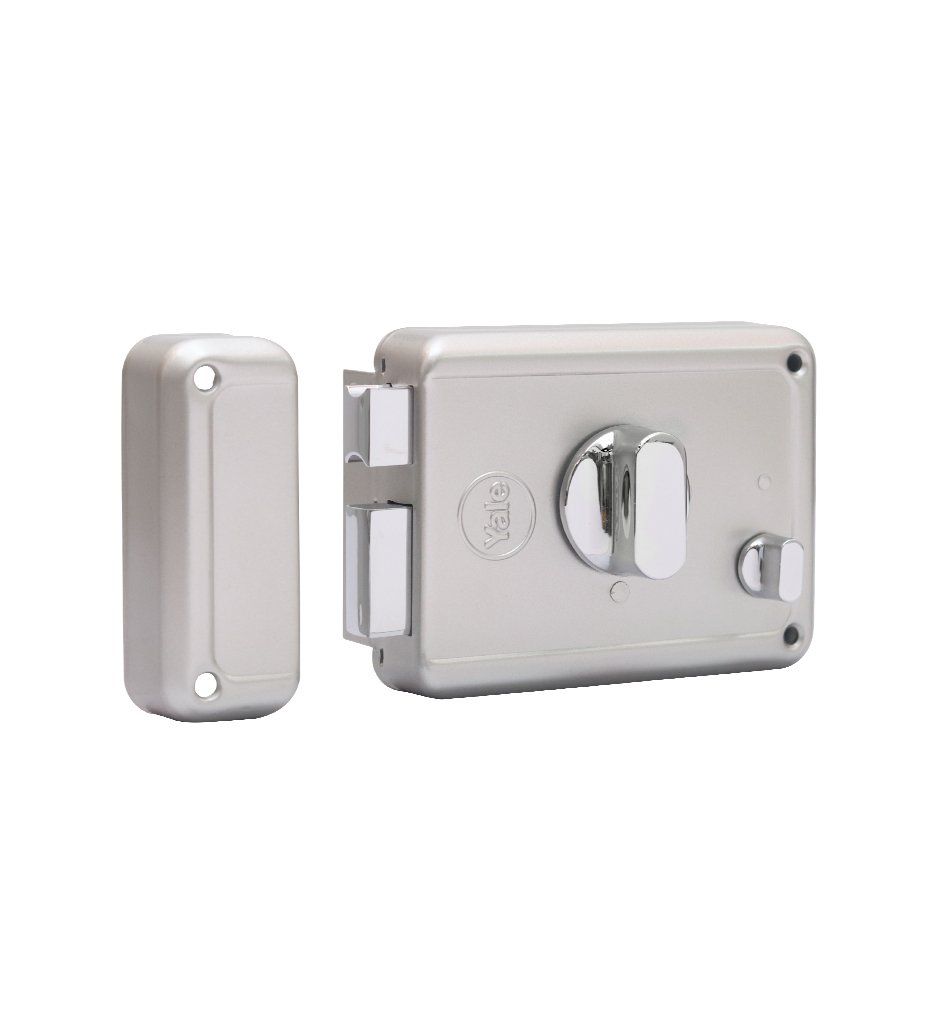

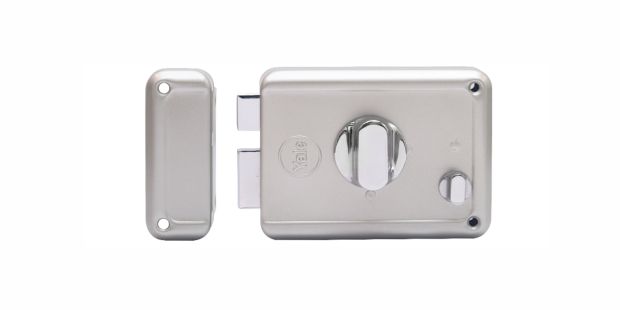

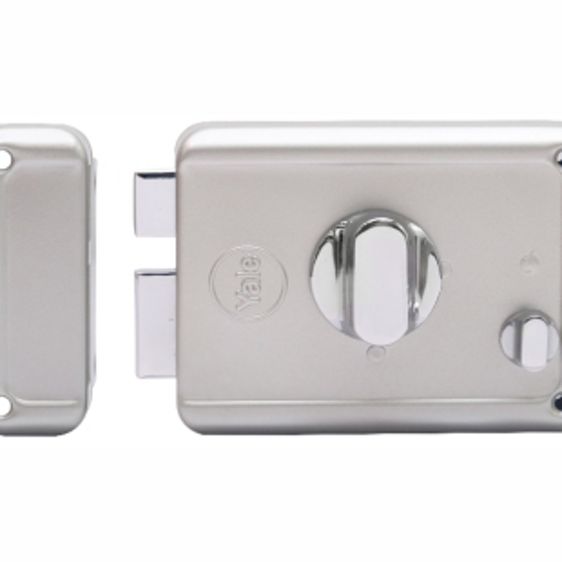

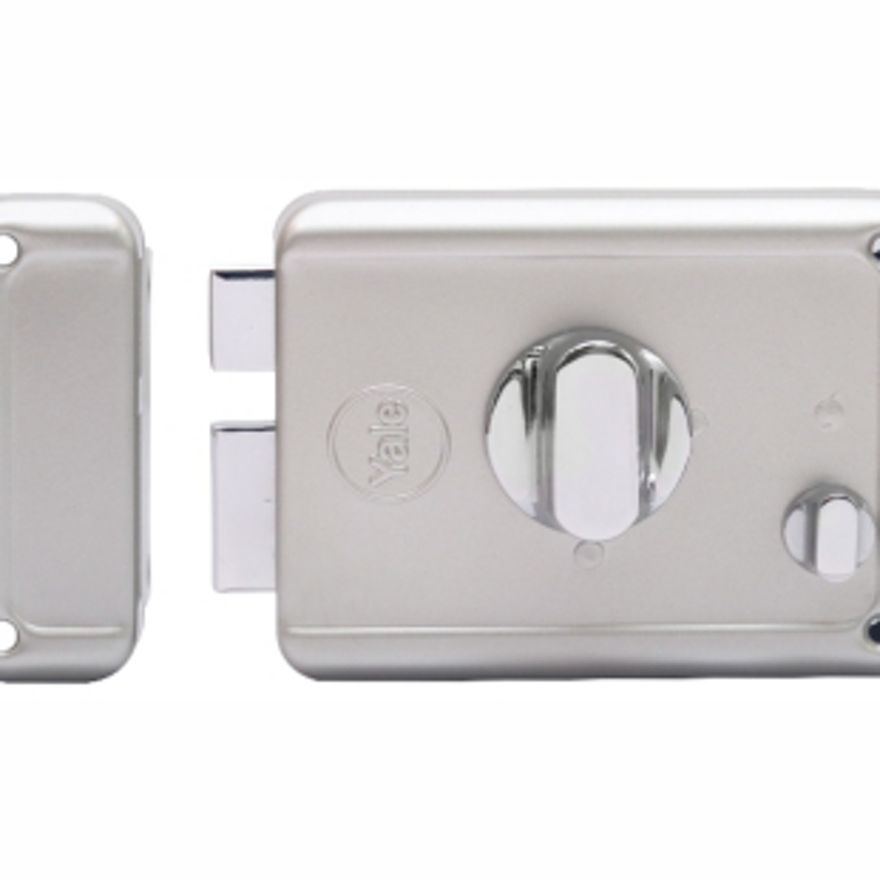

Rim Lock with Two Deadbolts, Thumbturn with Regular Keys, Painted

Product Descriptions

Main door RIM lock with Knob Inside, available with regular keys. Silver colour body, Two deadbolts. With safety lock inside. Suitable for door thickness of 25 mm to 85 mm.

Features

  • Suitable for 25mm – 80mm thick door.
  • Suitable for wooden and steel door
  • Available in both side keyed cylinder, one side key and other side thumbturn variant.

Technical Features:

  •  Conforms to EN12209
  •  100,000 Cycles Tested Door Closer
  •  Regular Key
  •  Suitable for din left and din right handed doors

Material Specifications

  •  Body / Receptacle / Striker Plate:    CRCA. MS. Sheet
  •  Dead bolt : Zinc Alloy
  •  Small Knob : Zinc Alloy
  •  Big knob: Zinc Alloy

Technical Specifications



  • Body: MS
  • Latch: Zinc alloy latch
  • Door Thickness: 25 mm to 80 mm
  • Warranty: 5 Years
  • Keys: Dimple keys
  • Locking: Knob Inside, Keys Outside
  • SafetyLock: Yes
