YDM3109

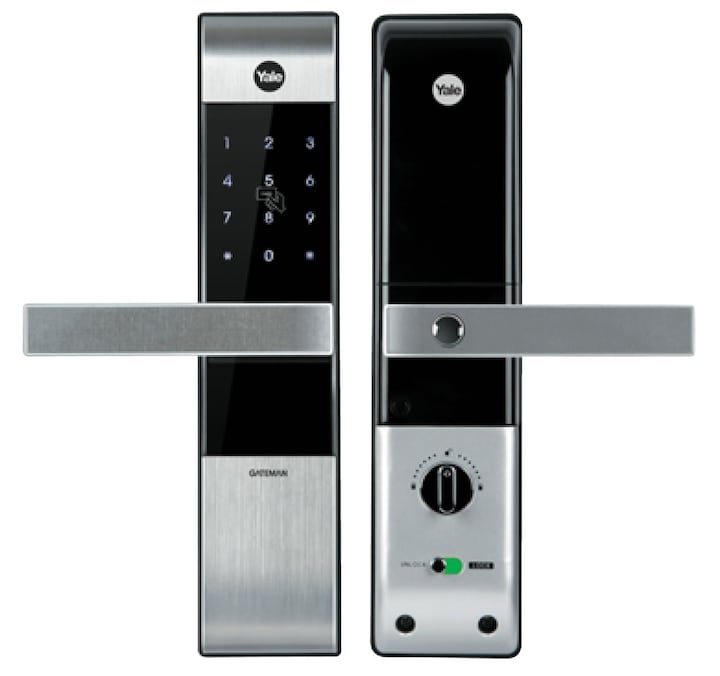

YDM3168 mortice lock is a new smart solution for residential & "light" commercial applications. High level of security with the 3 deadbolts motorized lock and 2 access solutions: RF card key & PIN code. The innovative features, such as alarms, fake code, automatic locking and integration feature, will provide comfort and will increase your feeling of security.

Specifications:

• Motorized mortise lock
• Backset: 60mm
• Door Thickness: 40 to 105mm
• 4 x AA batteries
• Available for wooden and steel doors
• Automatic lock mode
• Operation temperature: -15 to +55C
• Suitable for left or right opening
• Dimensions: front body 311 (D) x 64 (W) x 26 (H) mm; back body 311 (D) x 72(W) x 31 (H)mm

Features:

• PIN code: 6-12 digits
• Proximity cards up to 40 users
• Zigbee and Zwave integration module available (optional)
• Mechanical keys override
• Voice guidance available
• Built-in 80db burglar alarm
• Easy installation
• Scramble code
• Available in silver finish

YDM4109 mortice lock is a smart solution for residential & “light” commercial applications. 2 access solutions to open your door: fingerprint & PIN code. The innovative features, such as alarms, fake code or automatic locking will provide comfort and will increase your feeling of security.

Specifications:

• Type: DIN type mortise lock
• Credentials:
  - Pin code (6 to 12 digits)
  - Fingerprint reader (up to 20 users)
• Mechanical key: 2
• Center distance: 72mm
• Backset: 60mm
• Colour: black
• Door thickness: 40-80mm
• Dimensions: front body 28.5 (D) x 68.6 (W)x320.7(H)mm; back body 37(D)x72.8 (W)x 306.6(H)mm
• Integration: available upon request-RF link

Features:

• Voice guidance
• Smart touchpad
• Anti-panic egress with safe handle
• Alarm (break-in/damage)
• Security/normal modes
• Operation status notification
• Low battery alarm & emergency power supply terminal with 9v battery
• Automatic locking
