YDM3168

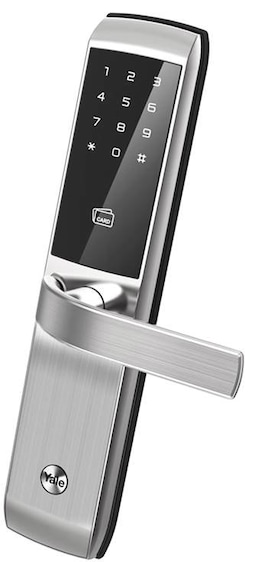

YDM3168 mortice lock is a new smart solution for residential & "light" commercial applications. High level of security with the 3 deadbolts motorized lock and 2 access solutions: RF card key & PIN code. The innovative features, such as alarms, fake code, automatic locking and integration feature, will provide comfort and will increase your feeling of security.
Specifications:
- Motorized mortise lock
- Backset: 60mm
- Door Thickness: 40 to 105mm
- 4 x AA batteries
- Available for wooden and steel doors
- Automatic lock mode
- Operation temperature: -15 to +55C
- Suitable for left or right opening
- Dimensions: front body 311 (D) x 64 (W) x 26 (H) mm; back body 311 (D) x 72(W) x 31 (H)mm
Features:
- PIN code: 6-12 digits
- Proximity cards up to 40 users
- Zigbee and Zwave integration module available (optional)
- Mechanical keys override
- Voice guidance available
- Built-in 80db burglar alarm
- Easy installation
- Scramble code
- Available in silver finish
Similar products
YDM3109

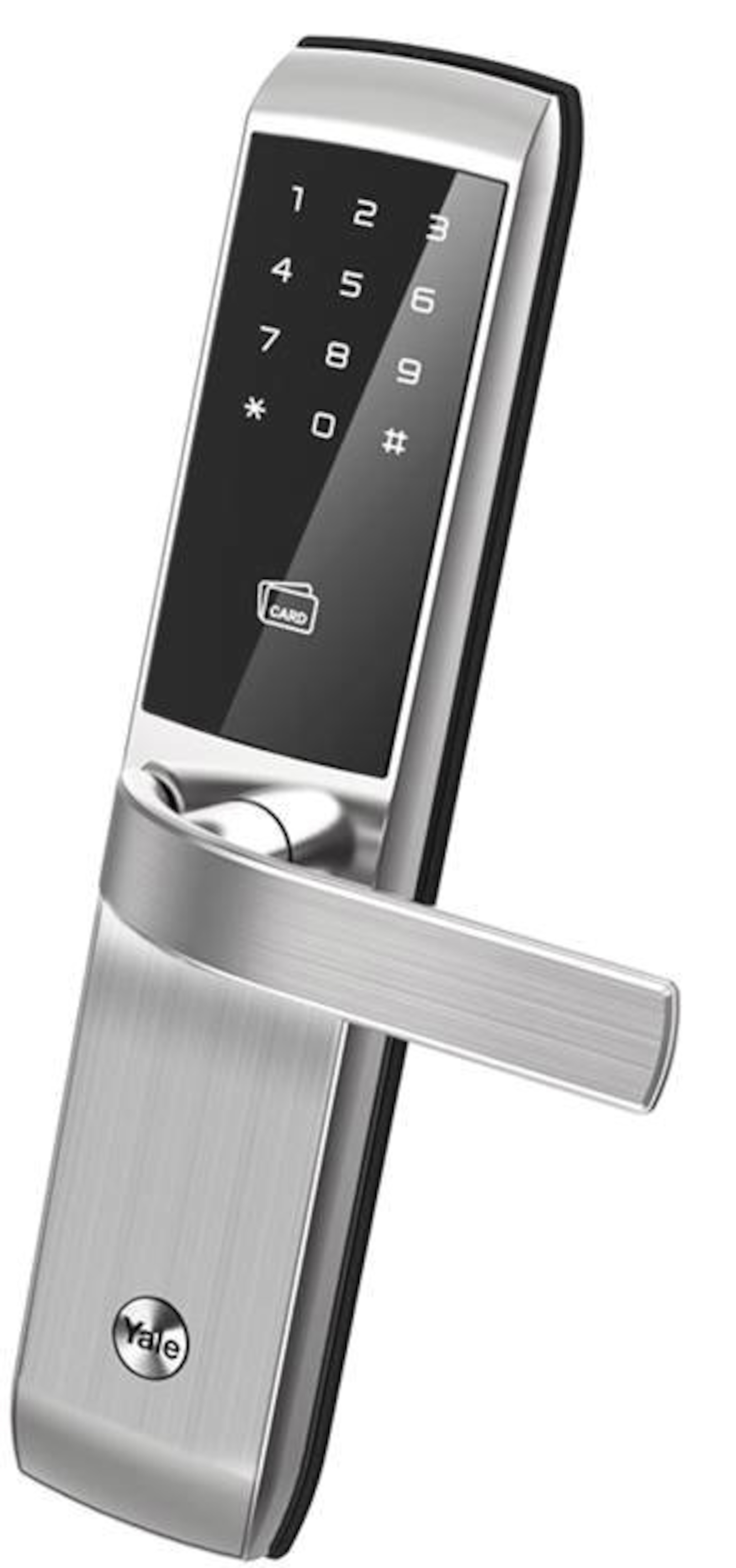

YDM3109 mortice lock is a smart solution for residential & “light” commercial applications. 2 access solutions to open your door: RF Card key & PIN code. Innovative features, such as alarms, fake code or automatic locking, YDM3109 will provide comfort and will increase your feeling of security.
Specifications:
- Type: DIN type mortise lock
- Credentials:
- Pin code (6-12 digits)
- Proximity card: 4 (up to 40 users) - Mechanical key: 2
- Center distance: 72mm
- Backset: 60mm
- Colour: silver
- Door thickness: 40-80mm
- Dimensions: front body 27 (D) x 68.6 (W)x306.6 (H)mm; back body 37(D)x72.8 (W9x 306.6 (H)mm
- Integration: available upon request-RF link
- IP 55: water resistant
- Suitable for left or right opening
Features:
- Double credentials (PIN code & RF Card key)
- Fake PIN code
- Operation status notification
- Mechanical key override
- Missing key invalidation
- Automatic locking
- Anti-panic egress with safe handle
- Alarm (break-in/damage)
- Low battery alarm & emergency power with 9v battery
YDM4109
YDM4109 mortice lock is a smart solution for residential & “light” commercial applications. 2 access solutions to open your door: fingerprint & PIN code. The innovative features, such as alarms, fake code or automatic locking will provide comfort and will increase your feeling of security.
Specifications:
- Type: DIN type mortise lock
- Credentials:
- Pin code (6 to 12 digits)
- Fingerprint reader (up to 20 users) - Mechanical key: 2
- Center distance: 72mm
- Backset: 60mm
- Colour: black
- Door thickness: 40-80mm
- Dimensions: front body 28.5 (D) x 68.6 (W)x320.7(H)mm; back body 37(D)x72.8 (W)x 306.6(H)mm
- Integration: available upon request-RF link
Features:
- Voice guidance
- Smart touchpad
- Anti-panic egress with safe handle
- Alarm (break-in/damage)
- Security/normal modes
- Operation status notification
- Low battery alarm & emergency power supply terminal with 9v battery
- Automatic locking
