Yale

C-77EN4

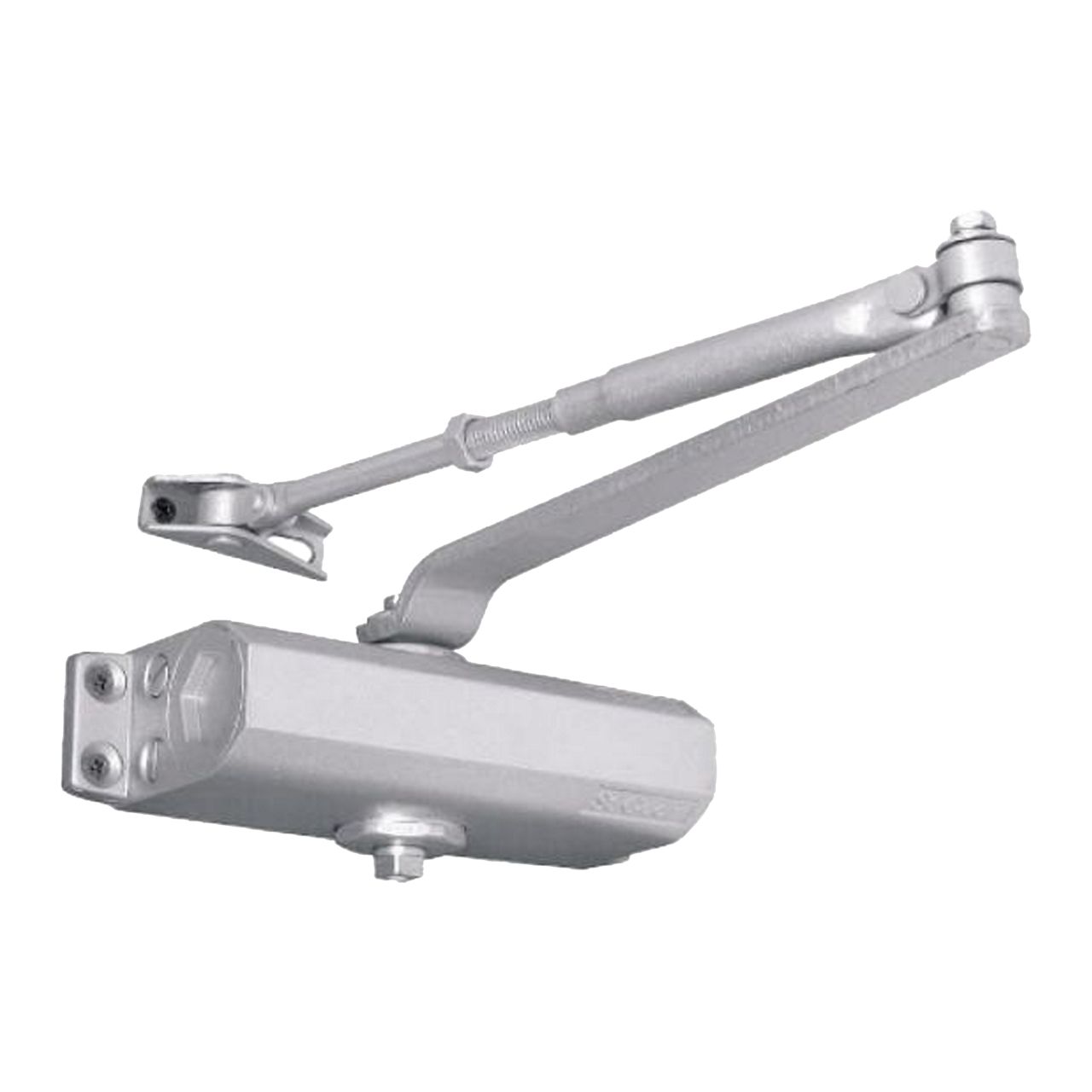

Yale surface mounted door closer applicable for EN Size 4, manufactured as per the European standard 1154. Aluminium die cast body with standard arm. Suitable for Wooden and Aluminium frame doors. Non Handed door closer with adjustable closing and latching speed .

Where to Buy
C-77EN4
C-77EN4

  • Model No.

    EN4

    Dimension:

    182(L) x 53(W) x 60.5(H) mm

    Max. Width of Door (mm)

    1100

    Max. Weight of Door (kg)

    80

    Arm Type

    12 Hold Open Arm

    Torque Max

    37 NM

    Option Features

    BC Backcheck

    Finishing

    SB Silver

    Certification:

    • UL Listed.
    • Conform to UL228 & UL10C

    Passed Durability Test:

    • 300,000 Cycles
    • Easily Adjustable Arm Height
    • Max Opening Angle 180°
    • Maximum Door Width: 1100mm
    • Maximum Door Weight: 80kg
    • Reversible (Left/Right Hand Fixing)

    Two Speed Valves:

    • One to Control Closing Speed from 180° to 15°
    • Second to Activate Final Latch from 15° to 0°
    • Backcheck (BC): Optional
  • Classification Details
    2022 Yale Mechanical Catalogue(PDF, 7 MB)
    Yale Door Closer EN Standards FA
