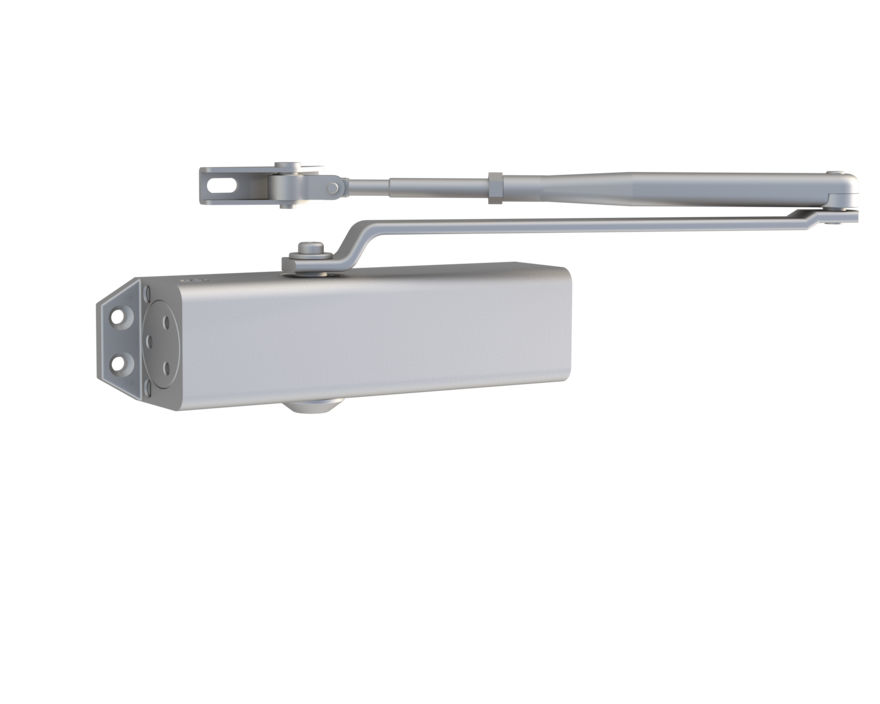

Surface Mounted Door Closer

Specifications

• Tested up to 500,000 cycles
• Up to 120 mins fire rated for timber doors
• Up to 240 mins fire rated for steel doors
• Adjustable latching speed

Features

• Rack and Pinion mechanism
• Maximum door width: 1100mm
• Maximum door weight: 80kg
• EN 1154 Classification: 3 8 4/2 1 1 3
• Die cast aluminium body
• Anti-freeze and fire-proof, suitable for working at -42⁰C to 55⁰C
• Available in black, white, brown, silver & gold
• Corrosion resistance: EN1670 Grade 3
• ​Max. opening angle is 180⁰ (EN2/EN3) and 130⁰ (EN4)

Light duty power selectable door closer.

Specifications

• Casted aluminum body
• UL listed
• Non handed installation

 Features

• Rack and pinion mechanism
• Selectable class 2,3 & 4
• Adjustable closing and latching speed
• Max door width: 1100mm
• Max door weight: 80 kg
• Can be installed with standard or hold open arm and PA bracket
• Hold open type should not be installed on fire doors
• Available in silver, white, brown, black & gold

Specifications

• CE marked
• Casted aluminium body
• Closing and latch speed adjustable by regulating valves

Features

• Tested up to 500,000 cycles for closing and opening of the door closer for extreme durability
• Suitable for left or right handed doors
• Maximum door width: 1100mm
• Maximum door weight: 80kg
• Fire resistant
• Available in silver, white, brown, black & gold finishes
