Salva Series

Products

    Filter

      4 results

      • Salva-R Series Single Point Panic Exit Device

        Material:

        Push bar –Steel/Stainless steel pressed

        Head Cover – Steel/Stainless steel pressed

        Spring – Stainless steel

        Latchbolt:

        3/4” throw, deadlocking design

        Strike:

        For 5/8” stop

        Projection:

        Pushbar Neutral: 2-3/16”(55mm), Pushbar Depressed: 1-7/8”(47mm)

        Reversible:

        Non-handed, reversible for all functions and trims

        For Door:

        1-3/4” thick of wood or metal door

        Door Width:

        3” standard for door width of 2”-6” to 3”

        4” standard for door width of 3” to 4”





        Stile:

        4-1/4” minimum

        Mounting Height:

        40-5/16” from CL to finished floor recommended

        Mounting Fasteners:

        Furnished standard with sheet metal & machine screws or SNB as option

        Cylinder:

        For trim, knob, lever & thumb-piece type

        Dogging:

        1/4 turn, hex key dogging on non-fire labeled device

        UL Listed:

        For “Panic Hardware” and “UL”. Labeled (3 hours) fire exit hardware

        Operation:

        Inside by slight pressure on any point of the push bar all time

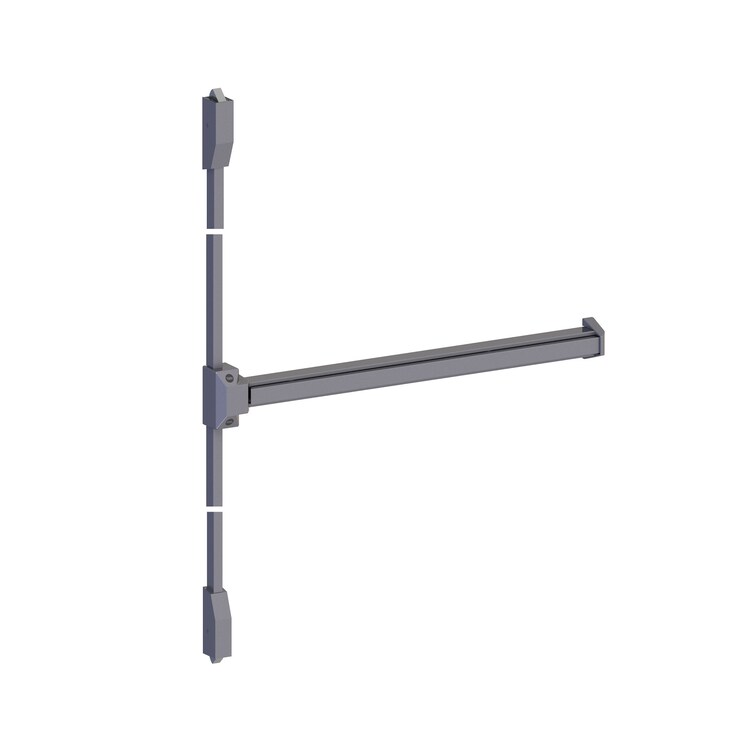

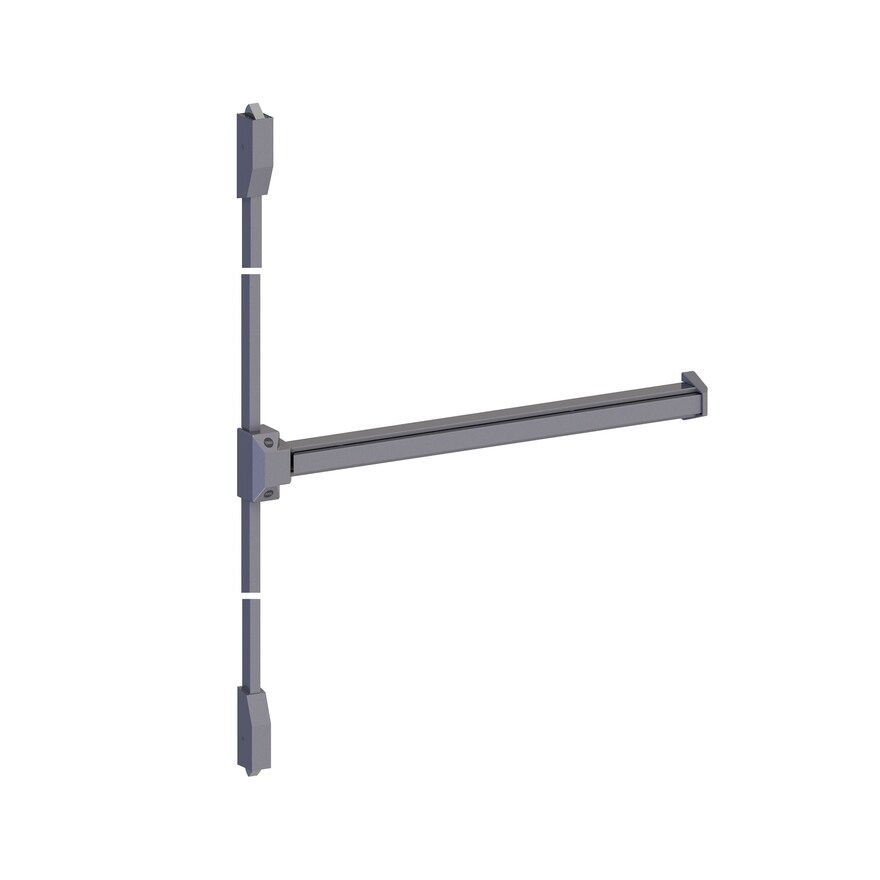

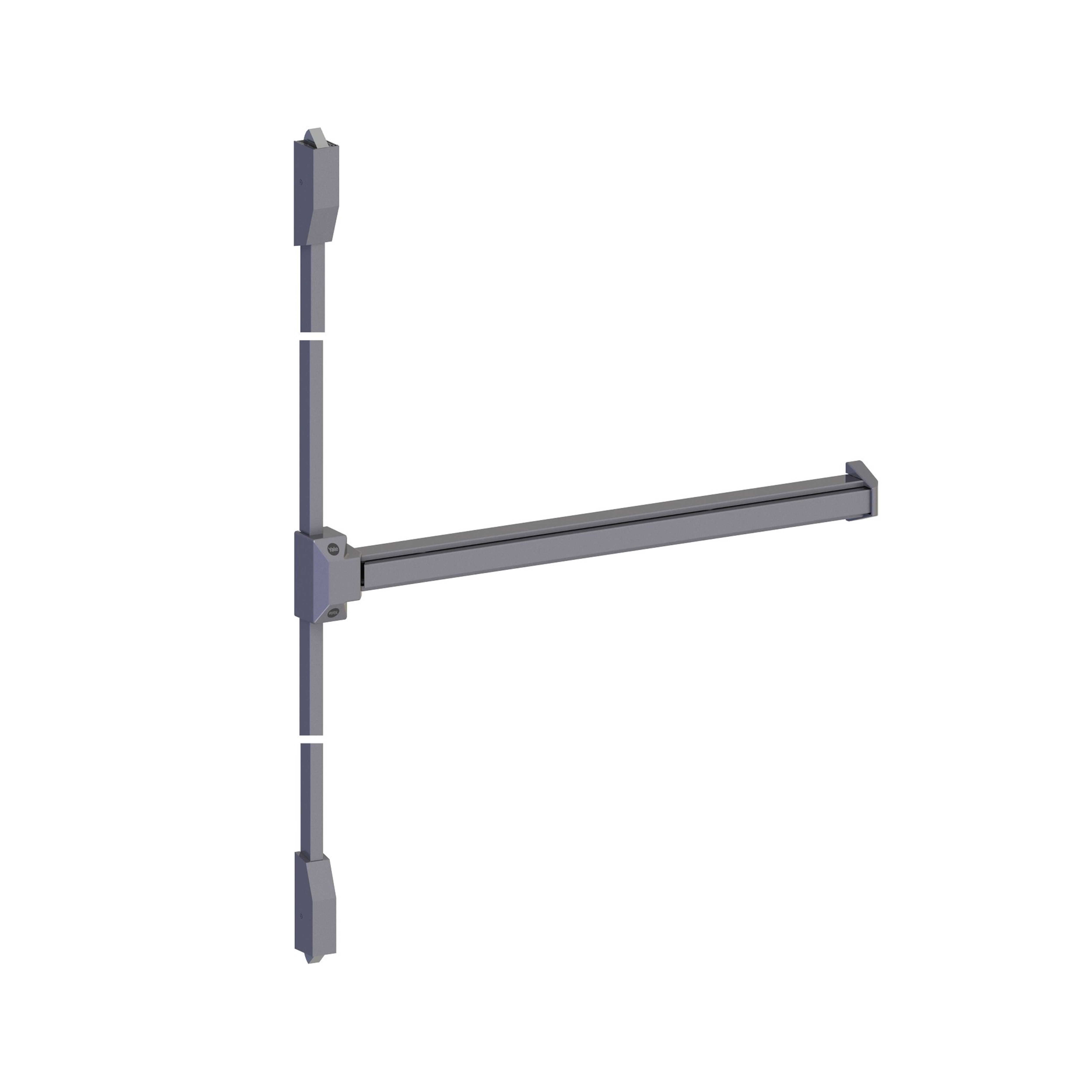

      • Salva-V Series Double Point Panic Exit Device

        Material:

        Push bar –Steel/Stainless steel pressed

        Head Cover – Steel/Stainless steel pressed

        Spring – Stainless steel

        Latchbolt:

        3/4” throw, stainless steel

        Dead Latch Bolt:

        5/8”, steel

        Strike:

        For 5/8” stop. Plus shim for 1/2” stop

        Projection:

        2-1/2” maximum, 1-7/8” pressed

        Reversible:

        Non-handed, reversible for all functions and trims

        For Door:

        1-3/4” thick of wood or metal door. Specify thickness if other than 1-3/4”

        Backset:

        2-3/4” standard

        Door Width:

        3” standard for door width of 2”-6” to 3”-0”

        4” standard for door width of 3”-0” to 4”-0”

        Stile:

        4-1/4” minimum



        Top & Bottom Rod Length for 7" door:

        Top rod 45-1/4”, bottom rod 34”

        Mounting height:

        40-5/16” from CL to finished floor recommended

        Mounting:

        Furnished standard with sheet metal & machine screws or SNB as option

        Cylinder:

        For trim, knob, lever & thumb-piece type “Schlage C” key way

        Dogging:

        1/4 turn, hex key dogging on non-fire labeled device

        UL Listed:

        For “Panic Hardware” and “UL”. Labeled (1.5 hours) fire exit hardware

        Operation:

        Inside by slight pressure on any point of the push bar all time



      • Salva-T-EPC Euro Lever Trim

        Material: Steel

        Function: Classroom

         Locks and unlocks with a key & can remain unlocked

         Suitable for door thickness of 32-51mm

         Keyed different: 2 Keys

        Finish options:

        Stainless Steel (US26D)

        Silver Paint

      • Salva-T-ANSI Trim

         Material: Steel

         Keyed different: 2 Keys

        Finish*:

        Stainless Steel (US26D)

        *Trim is not available in Silver Paint finish. Only available in Stainless Steel (US26D) finish.

      Showing 4 of 4
