Cylinders

Yale offers a very comprehensive range of cylinders to suit most applications. They are available in the most common styles to enable the customers to utilise their existing ironmomgery.

For the most comprehensive and flexible range of cylinder, Yale has the solution.

Products

    Filter

      12 results

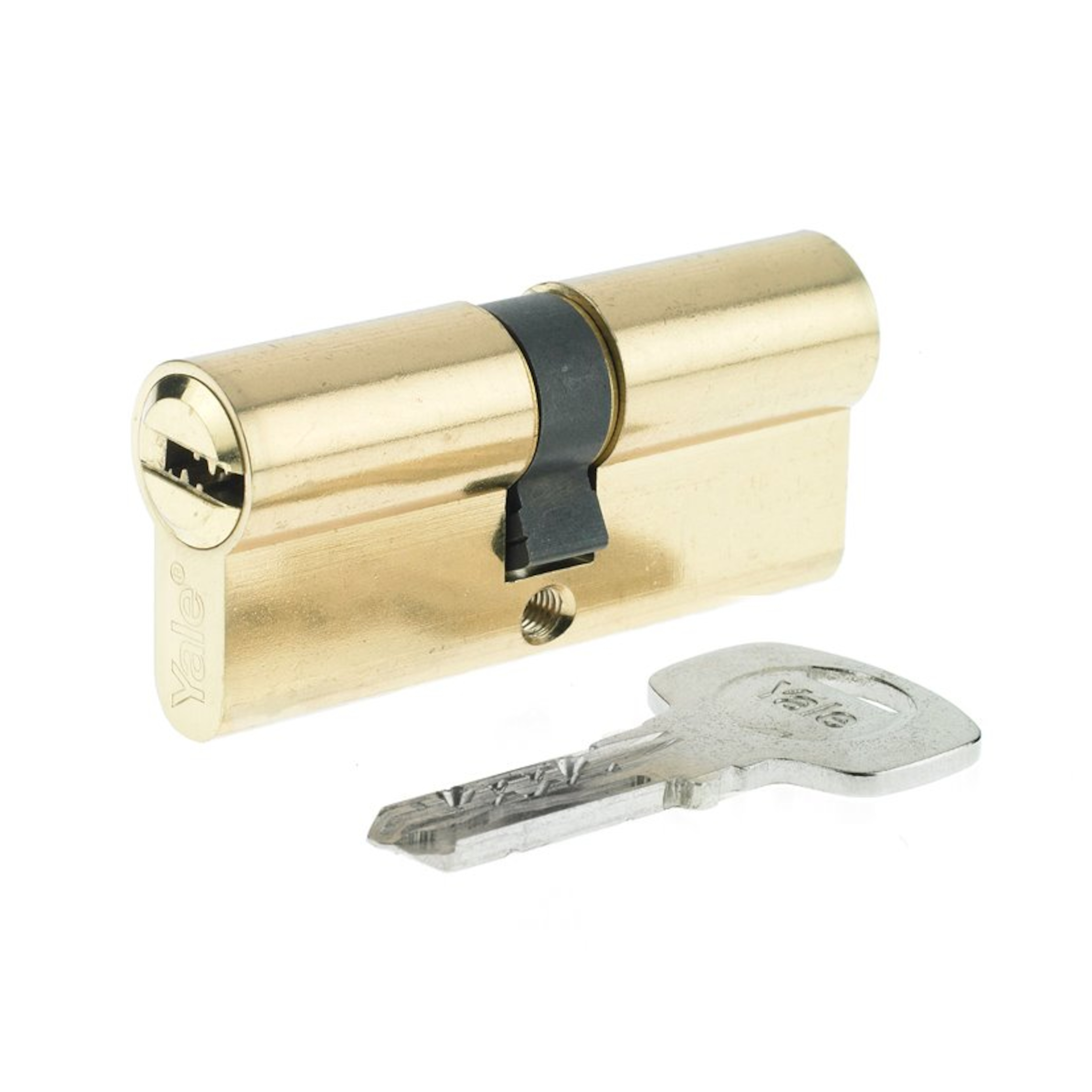

      • Double Profile Cylinders (Key+Key)

        Specifications

        • Double euro profile cylinder - Key + Key
        • High Security
        • Brass Material
        • Tested to EN 1303:2005
        • Finish available - Satin Nickel, Polish Brass, Antique Brass, Chrome Polish
        • Type: Available as single, double and turn Euro profile cylinder



        Key Highlights

        • Yale patented
        • Swan key
        • 5 pins
        • Supplied with 3 keys
        • Anti picking

      • Double Profile Cylinder (Key + Key)

      • Double Profile (Key+Key)

        Specifications

        • Brass Housing
        • Brass or Steel Swan Key (Both options available)
        • Key number 3 or 5 (Both option available)



        Standards

        • EN 1303:2015 Classification: 16000C30
        • 100,000 Cycle Testing
        • BS EN 1670 Grade 3 corrosion resistance: resistance to -20 / +80°C temperature extremes
        • Torque resistance of plug 15Nm



        Available Finishes

        • BP-Brass Plated
        • SN-Satin Nickle Plated
        • CP-Chrome Plated
        • NP-Nickle Plated

      • Double Profile Cylinder (Key + Key)

        Specifications

        • Standard security Euro profile cylinder with traditional keys



        Features

        • 5 pins
        • Supplied with 3 keys
        • Tested to EN1303:2005

      • Double Profile Cylinder (Key+Knob)

        Specifications

        • Standard security Euro profile cylinder with traditional keys


        Features

        • 5 pins
        • Supplied with 3 keys
        • Tested to EN1303:2005











      • Double Profile Cylinder (Knob+Emergency)

        Specifications

        • Standard Euro profile cylinder with privacy function and turn.



        Features

        • Available in box or blister



      • Single Profile Cylinder (One Side Key)

        Specifications

        • Standard security Euro profile cylinder with traditional keys.


        Features

        • 5 pins
        • Supplied with 3 keys
        • Tested to EN1303:2005

      • Double Profile Cylinder (Key+Key)

        Specifications:

        • Medium security Euro profile cylinder with dimple keys
        • 6 pins
        • Reversible keys
        • Key card for extra keys
        • Drill protected


        Features:

        • Tested to EN1303:2005

      • Double Profile Cylinder (Key+Knob)

        Specifications

        • Medium security Euro profile cylinder with dimple keys.
        • 6 pins
        • Reversible keys
        • Key card for extra keys
        • Drill protected
        • Anti pick function


        Features

        • Tested to EN 1303:2005





      • Single Profile Cylinder (One Side Key)

        Medium Security Euro Profile Cylinder with Dimple keys.

        Specifications

        • 6 pins
        • Reversible keys
        • Key card for extra keys
        • Drill protected
        • Anti pick function


        Features

        • Tested to EN 1303:2005





      • Double Profile Cylinder (Key+Key)

        Specifications

        • Medium security Euro profile cylinder with break secure function.
        • 6 pins
        • Reversible keys
        • Key card for extra keys
        • Drill protected


        Features

        • Tested to EN 1303:2005

      • Double Euro Profile Cylinders

        High Security Euro Profile Cylinder with Dimple keys.



        Types:

        • Double cylinder
        • Knob cylinder
        • Half cylinder



        Specifications:

        • 10 pins
        • Drill protected
        • Anti pick function
        • MS58 brass body
        • Brass or satin nickel plated
        • Snake profile on key to avoid bumping
        • 5 pieces of reversible nickel silver keys
        • Key card to have extra keys
        • Box or blister packing
        • 68mm (26+10+32). Please ask for other sizes.



         Features:

        • Tested to EN1303:2005





      Showing 12 of 12
