Mortice Locks

Yale offers a diverse range of door locking solutions, with mortice locks that are perfectly suitable for residential doors like entrance and internal doors, as well as common area doors like fire exit and double leaf doors. Using high quality stainless steel and ensuring high precision throughout the manufacturing process, Yale guarantees exceptional durability, security and performance for it's locks.

Products

    Filter

      11 results

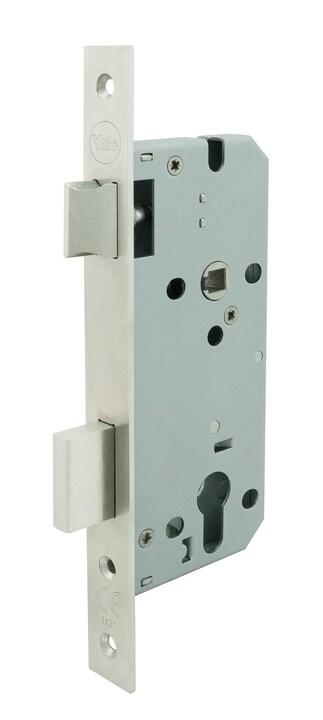

      • 72mm Deadlock

        Specifications

        • Heavy duty deadlock
        • Backset 55mm with option of 60mm on request
        • Stainless steel 304 front and strike plate
        • Square front and strike plate with option for radius type on request
        • Stainless steel deadbolt
        • 20mm double throw deadbolt
        • Grade 8
        • Door mass upto 200kg at max. closing speed of 15N
        • 200,000 cycles tested



        Features:

        • Tested to EN 12209:2003 - suitable for public doors
        • CE certified - suitable for steel fire doors upto 200kg, 240 minutes for metal doors and 120 minutes for timber doors
        • Satin stainless steel finish
        • Reversible for left or right hand door

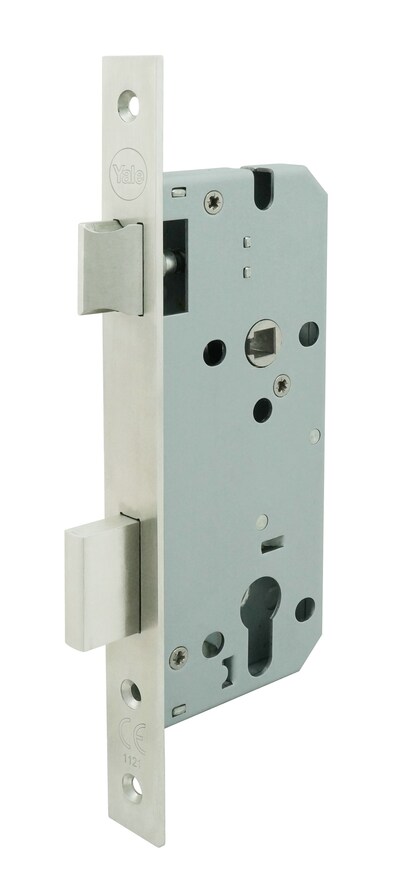

      • 72mm Sashlock

        Specifications

        • Heavy duty sashlock with 72mm centres
        • Backset 55mm with option of 60mm on request
        • Follower 8x8mm
        • Through fixing holes with 38mm centres
        • AISI 304 stainless steel front and strike plate
        • Square front and strike plate with option for radius type on request
        • Stainless steel latch and deadbolt
        • 20mm double throw deadbolt
        • Grade 8
        • Door mass up to 200kg at max. closing force of 15N



        Features

        • Tested to EN12209:2003 - suitable for public doors
        • CE certified - suitable for steel fire doors upto 200kg, 240 minutes for metal doors and 120 munites for timber doors
        • Latch operated by handle or cylinder
        • Satin stainless steel finish
        • Reversible for left or right hand door

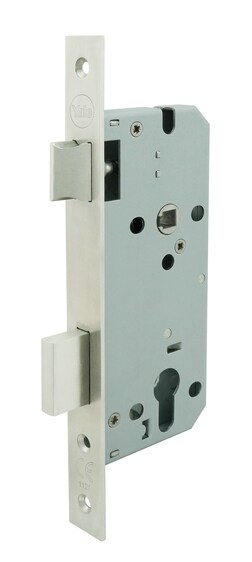

      • 72mm Latch

        Specifications

        • Heavy duty mortice latch
        • Backset 55mm with option of 60mm on request
        • Follower 8x8mm
        • Through fixing holes with 38mm centres
        • Stainless steel 304 front and strike plate
        • Square front and strike plate with option of radius type on request
        • Stainless steel 304  latch
        • Grade 8
        • Door mass up to 200kg at max. closing force of 15N
        • 200,000 cycles tested



        Features

        • Tested to EN 12209:2003 - suitable for public doors
        • CE certified - suitable for steel fire doors 4 hours fire resistance
        • Latch operated by handle only
        • Satin stainless steel finish
        • Reversible for left or right hand doors

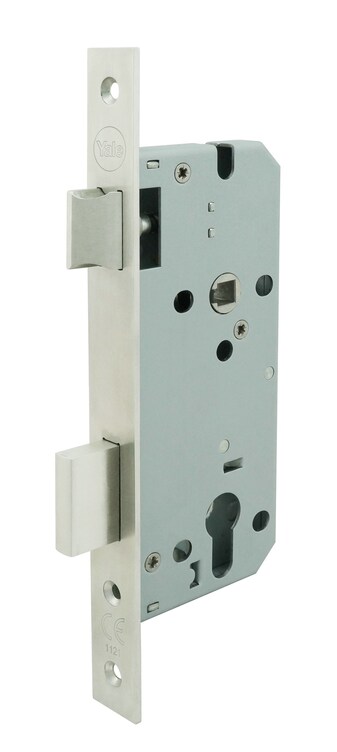

      • 72mm Nightlatch

        Specifications

        • Heavy duty nightlatch with 72mm centres
        • Backset 55mm with option of 60mm on request
        • Follower 8x8mm
        • Through fixing holes with 38mm centres
        • Stainless steel 304 front and strike plate
        • Square front and strike plate with option of radius type on request
        • Stainless steel 304 latch
        • Grade 8
        • Door mass up to 200kg at max. closing force of 15N



        Features

        • Tested to EN 12209:2003 - suitable for public doors
        • CE certified - suitable for fire doors
        • Latch operated by handle or cylinder
        • Satin stainless steel finish
        • Reversible for left or right hand doors

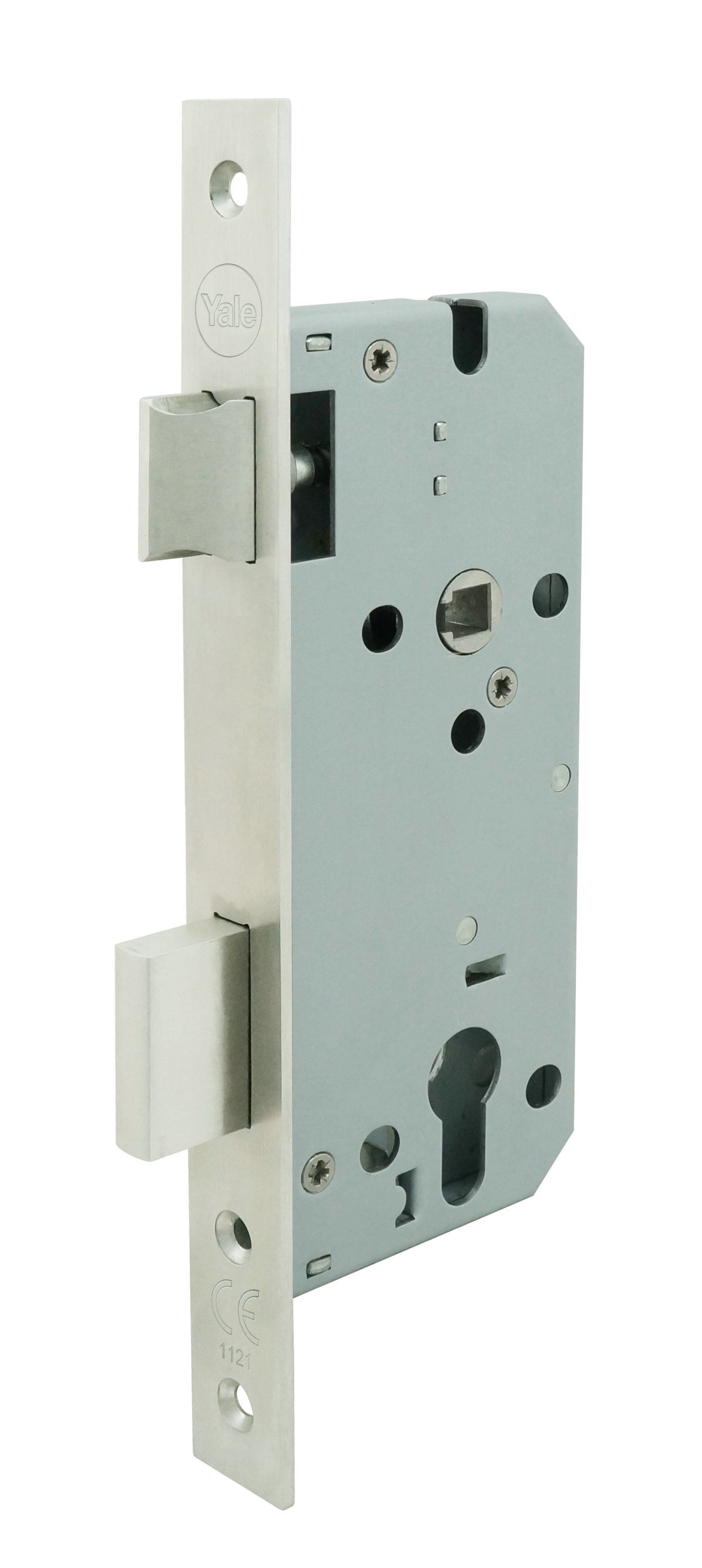

      • 78mm Bathroom Lock

        Specifications

        • Heavy duty bathroom lock with 78mm centres
        • Backset 55mm with option of 60mm on request
        • Follower for latch and deadbolt 8x8mm
        • Through fixing holes with 38mm centres
        • Stainless steel 304 front and strike plate
        • Square front and strike plate with option for radius type on request
        • Stainless steel latch and deadbolt
        • 20mm single throw deadbolt
        • Grade 8
        • Door mass upto 200kg at max. closing force of 15N
        • 200,000 cycles tested



        Features

        • Latch operated by handle
        • Deadbolt operated by privacy set with 8x8mm spindle
        • Satin stainless steel finish
        • Reversible for left or right hand door

      • 72mm Sashlock

        Specifications

        • Sashlock with 72mm centres
        • Backset 55mm with option of 60mm on request
        • Follower 8x8mm
        • Through fixing holes with 38mm centres
        • Stainless steel 304 front and strike plate
        • Square front and strike plate with option of radius type on request
        • Brass latch and steel deadbolt
        • 20mm double throw deadbolt
        • Grade 8
        • Door mass upto 200kg at max. closing force of 15N
        • 200,000 cycles tested



        Features

        • Tested to EN 12209:2003 - suitable for public doors
        • CE certified - suitable for fire doors
        • Latch operated by handle or cylinder
        • Satin stainless steel finish
        • Reversible for left or right hand doors

      • 72mm Deadlock

        Specifications

        • Deadlock 72mm size
        • Backset 55mm with option of 60mm on request
        • Stainless steel 304 front and strike plate
        • Square front and strike plate with option for radius type on request
        • Brass latch and steel deadbolt
        • 20mm double throw deadbolt
        • Grade 7
        • Door mass upto 100kg at max. closing force of 15N
        • 200,000 cycles tested



        Features

        • Tested to EN 12209:2003 - suitable for public doors
        • CE certified - suitable for fire doors upto 200kg
        • Satin stainless steel finish
        • Reversible for left or right hand door

      • 72mm Latch

        Specifications

        • Mortice Latch
        • Backset 55mm with option of 60mm on request
        • Follower 8x8mm
        • Through fixing holes with 38mm centres
        • Stainless steel 304 front and strike plate
        • Square front and strike plate with option of radius type on request
        • Brass latch
        • Grade 7
        • Door mass upto 100kg at max. closing force of 15N
        • 200,000 cycles tested



        Features

        • Tested to EN 12209:2003 - suitable for public doors
        • CE certified - suitable for fire doors
        • Latch operated by handle only
        • Satin stainless steel finish
        • Reversible for left or right hand doors

      • 72mm Nightlatch

        Specifications

        • Nightlatch with 72mm centres
        • Backset 55mm with option of 60mm on request
        • Follower 8x8mm
        • Through fixing holes with 38mm centres
        • Stainless steel 304 front and strike plate
        • Square front and strike plate with option of radius type on request
        • Brass latch



        Features

        • Tested to EN 12209:2003 - suitable for public doors
        • CE certified - suitable for fire doors
        • Latch operated by handle or cylinder
        • Satin stainless steel finish
        • Reversible for left or right hand doors

      • 78mm Bathroom lock

        Specifications

        • Bathroom lock with 78mm centres
        • Backset 55mm with option of 60mm on request
        • Follower for latch and deadbolt 8x8mm
        • Through fixing holes with 38mm centres
        • AISI 304 stainless steel front and strike plate
        • Square front and strike plate with option for radius type on request
        • Brass latch and steel deadbolt
        • 20mm single throw deadbolt



        Features

        • Latch operated by handle
        • Deadbolt operated by privacy set with 8x8mm spindle
        • Satin stainless steel finish
        • Reversible for left or right hand door

      • 85mm Sashlock

        Specifications

        • Lock case with 85mm centres
        • Standard backset 45mm - other backsets available on request
        • Follower 8x8mm
        • Through fixing holes with 38mm centres for rosette handles.
        • Brass latch and steel deadbolt
        • Steel front and strike plate with option of stainless steel
        • 20mm double throw deadbolt



        Features

        • Finish options - satin nickle, polished brass, antique brass or satin stainless steel
        • Latch and deadbolt finish matched with front plate
        • Latch operated by handle or cylinder

      Showing 11 of 11
