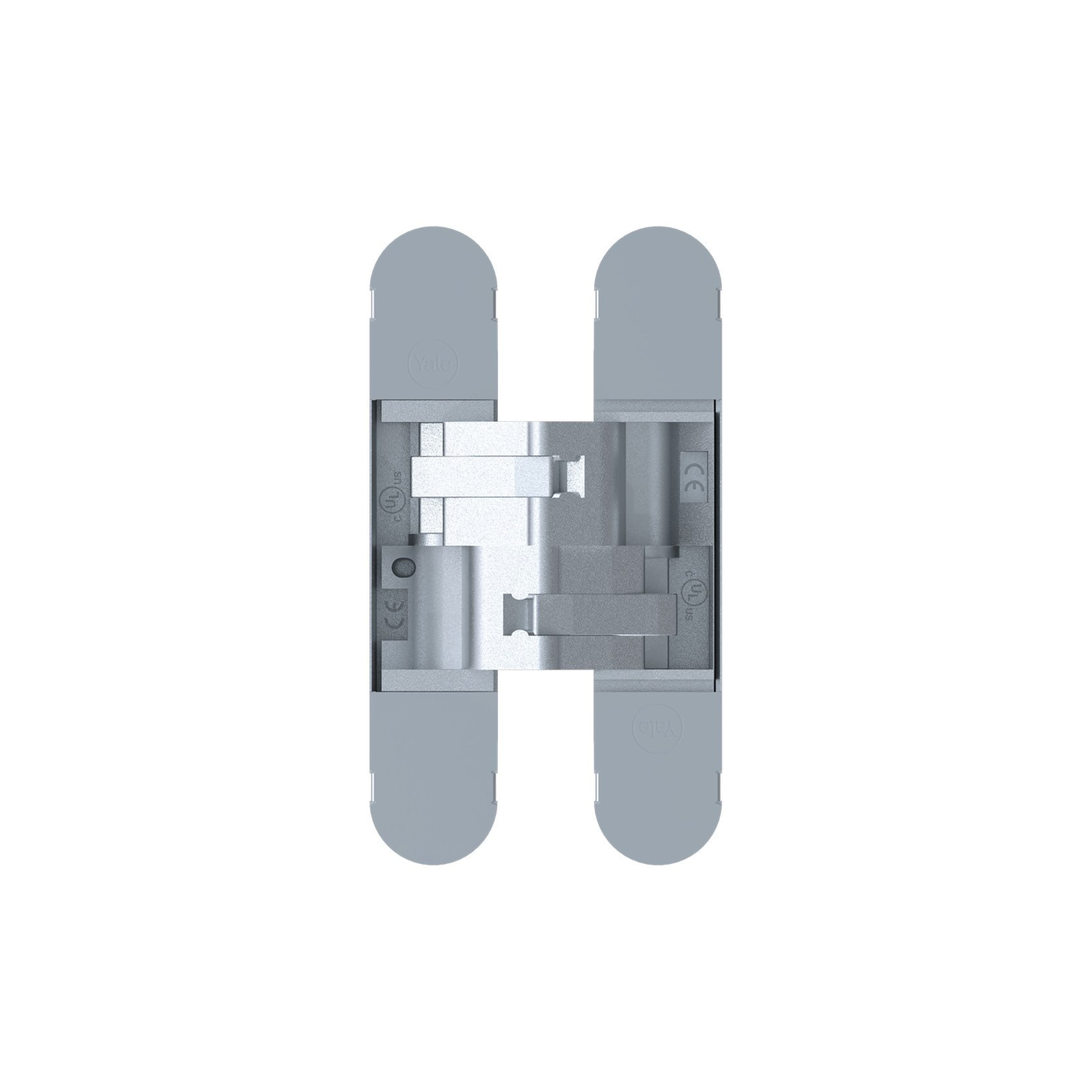

Concealed Hinges

Specifications:

• Certified for doors of up to 1000mm width
• Minimum door thickness: 38mm
• Suitable for doors up to 120kgs
• Tested for 200,000 cycles
• Reversible for 38 to 46mm thick

Features:

• Patented, 3 dimensional hinges
• Suitable for aluminium, metal and timber doors
• Fire rated and CE certified
• Symmetric design (reversible)
• Galvanized steel covers
• Zinc alloy internal and external body
• Resistant to oxidation due to the external zinc zamak case
• Fluid sliding mechanism and 3D adjustable with a 3mm allen key and 10mm hexagonal key

Specifications:

• Certified for doors of up to 1000mm width
• Minimum door thickness: 35mm
• Suitable for doors up to 70kgs
• Suitable for cladded side panels/walls upto 15mm thick
• Tested for 200,000 cycles
• Reversible for 35 to 45mm thick doors

Features:

• Patented and CE certified, 3 dimensional hinges
• Suitable for aluminium, metal and timber doors
• Symmetric design (reversible)
• Galvanized steel covers
• Zinc alloy internal and external body
• Resistant to oxidation due to the external zinc zamak case
• Fluid sliding mechanism and 3D adjustable with a 2.5mm allen key and 8mm hexagonal

Specifications:

• Certified for doors of up to 1000mm width
• Minimum door thickness: 28mm
• Suitable for doors up to 65kgs

Features:

• Patented, 3 dimensional hinges
• Suitable for aluminium, metal and timber doors
• Fire rated
• Symmetric design (reversible)
• Galvanized steel covers
• Zinc alloy internal and external body
• Resistant to oxidation due to the external zinc zamak case
• Fluid sliding mechanism and 3D adjustable with a 4mm allen key

Specifications:

• Certified for doors of up to 1000mm door width
• Minimum door thickness: 38mm
• Suitable for doors up to 135kgs
• Reversible for 38 to 45mm thick doors

Features:

• Patented, 3 dimensional hinges
• Suitable for aluminium, metal and timber doors
• Fire rated
• Symmetric design (reversible)
• Zinc alloy internal and external body
• Resistant to oxidation due to the external zinc zamak case
• Fluid sliding mechanism and 3D adjustable with a 5mm allen key

Specifications:

• Minimum door thickness: 38mm
• Suitable for doors up to 215kgs
• Reversible for 38 to 45mm thick doors
• Tested for doors of up to 1000mm width

Features:

• Patented, 3 dimensional hinges
• Suitable for aluminium, metal and timber doors
• Symmetric design (reversible)
• Galvanized steel covers
• Zinc alloy internal body and aluminium external body
• Fluid sliding mechanism and 3D adjustable with a 5mm allen key
• Resistant to oxidation due to the external aluminium case
